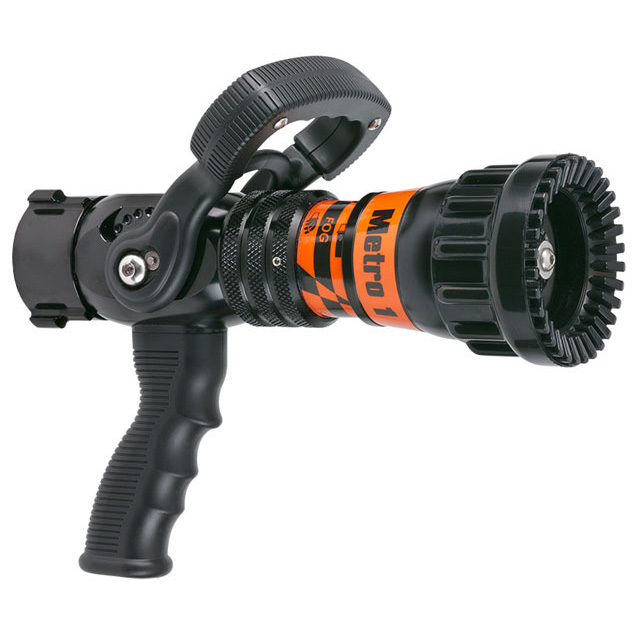

- TFT Metro 1 38mm (1.5") NPSH Fixed Nozzle
Metro 1 Series, fixed gallonage nozzle with your choice of 14 flow and pressure choices. Delivered with the 200 gpm @ 75 psi (760 l/min @ 5 bar) calibrated flow disc installed. The Metro 1 features flush without shutting down, your choice of molded rubber bumper with "power fog" teeth or stainless steel spinning teeth, detent flow control, "Gasket Grabber" inlet screen, patented TFT slide valve, and the rugged dependability you have come to expect from Task Force Tips. The Metro 1 models are available in tip-only configuration, or with stainless steel slide valve, and optional coloured pistol grip and handle covers (NPFA 1901 A.16.9.1). The Metro 1 accepts the FI-HM, FJ-LX-HM low expansion or FJ-MX-HM multi-expansion foam attachments and is NFPA compliant. Available with your choice of fixed rubber teeth or stainless steel spinning teeth.
* Our most common options come in with NPSH thread and fixed teeth
- 1.5" (38mm) coupling
- Lightweight hardcoat anodized aluminum for maximum resistance to corrosion and wear
- Tip only model must be used with separate valve or valved playpipe (tip does not shut-off)
- Tip with twist shut-off is ideal for break-and-extend operation
- Pistol grip is mounted below the valve
- Calibrated flow discs options:
- 150 gpm @ 50 psi (565 lpm @ 3 bar)
- 125 gpm @ 50 psi (475 lpm @ 3 bar)
- 95 gpm @ 50 psi (360 lpm @ 3 bar)
- 200 gpm @ 75 psi (760 lpm @ 5 bar)
- 175 gpm @ 75 psi (660lpm @ 5 bar)
- 150 gpm @ 75 psi (565 lpm @ 5 bar)
- 125 gpm @ 75 psi (475 lpm @ 5 bar)
- 60 gpm @ 75 psi (227 lpm @ 5 bar)
- 200 gpm @ 100 psi (760 lpm @ 7 bar)
- 175 gpm @ 100 psi (660 lpm @ 7 bar)
- 150 gpm @ 100 psi (565 lpm @ 7 bar)
- 125 gpm @ 100 psi (475 lpm @ 7 bar)
- 95 gpm @ 100 psi (360 lpm @ 7 bar)
- 60 gpm @ 100 psi (227 lpm @ 7 bar)
- Tip only model is 9" (23cm) long and weighs 2.7lbs. (1.2kg)
- Tip with twist shut-off model is 10" (25.4cm) long and weighs 3.4lbs. (1.5kg)
- Shut-off valve model is 11.5" (29cm) long and weighs 4.5lbs. (2.1kg)
- Shut-off valve & pistol grip model is 11.5" (29cm) long and weighs 4.9lbs. (2.2kg)
- NFPA 1964 compliant
Available other options upon request:
- Spinning teeth or fixed teeth
- Twist shut off on tip only
- Colored pistol grip and bale
Nozzle Configuration | Tip Only (No Shut Off) or No Pistol Grip w/ Shut Off or With Pistol Grip & Shut Off |
