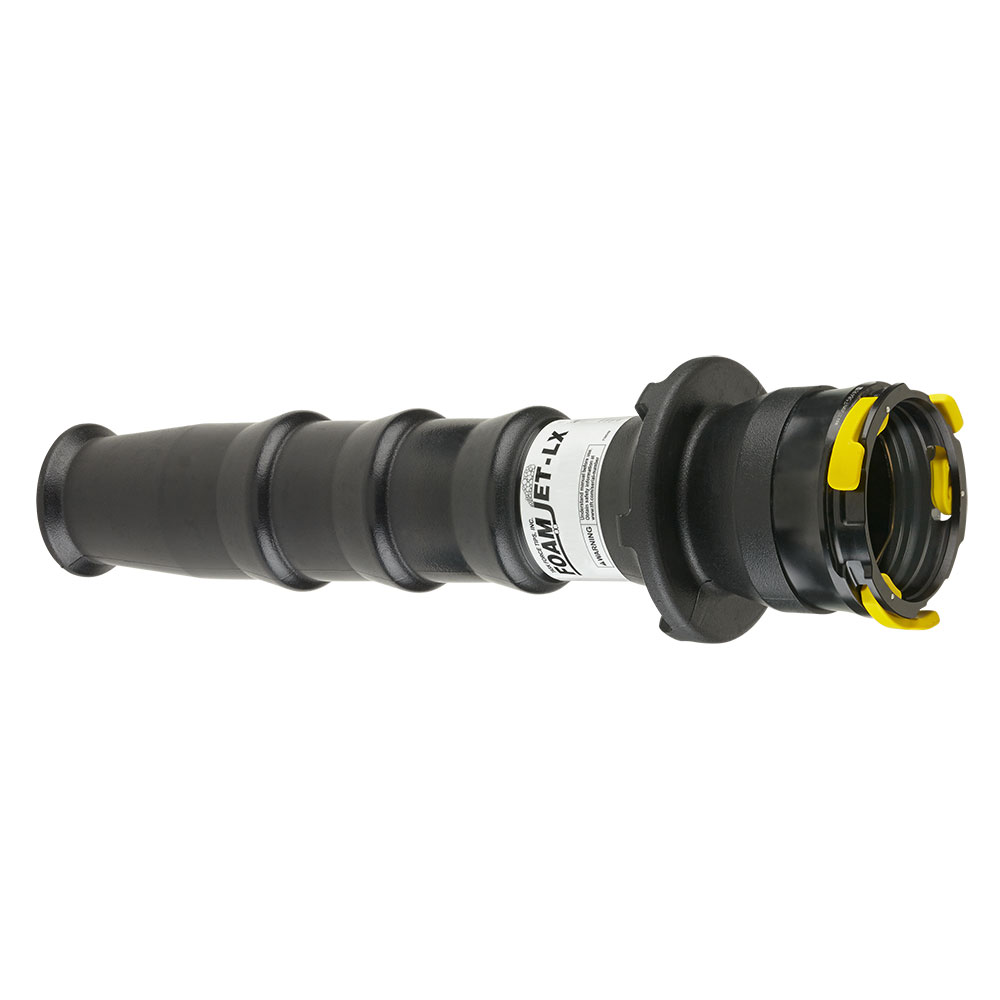

FoamJet Aspirating Nozzle Attachment

https://www.wfrfire.com/web/image/product.template/6710/image_1920?unique=2eb07a3
  • Product Option

This combination does not exist.

Foam

The MX-FOAMJET & FOAMJET-LX for Master Stream Nozzles are lightweight, low & multi expansion foam-making, air-aspirating attachments. Simple, rugged and dependable, the MX-FOAMJET & FOAMJET-LX can be quickly attached and provide superior foam-making ability with most foam concentrates.

The MX-FOAMJET has the unique ability to vary the expansion ratio and the stream reach of the finished foam. Foam expansion and reach can be controlled by varying the stream pattern of the nozzle. The ability to regulate the reach and expansion ratio is unique to the MX-FOAMJET. It can be easily removed in seconds for a water-only or non-aspirated stream.

Specifications

LOW EXPANSION
  • G-Force:
    • 20.2"l (51.3cm)
    • 3lbs. (1.4kg)
  • Master Force, Master Stream 1000 & 1250S, and Master Foam 250-750gpm:
    • 29.9"l (76cm)
    • 10.9lbs. (4.94kg)
MULTI EXPANSION
  • G-Force:
    • 2.4lbs. (1.1kg)
  • Quadrafog:
    • 15.2"l (38.6cm)
    • 7.4" dia. (18.8cm)
    • 3.3lbs. (1.5kg)
  • Thunderfog:
    • 17"l (43.2cm)
    • 8.6" dia. (21.8cm)
    • 5.2lbs. (2.4kg)
  • Mid-Force, Mid-Matic, Metro 1 & Working Fire Series:
    • 15.4"l (39.1cm)
    • 7.4" dia. (18.8cm)
    • 3.2lbs. (1.5kg)
  • Ultimatic & Metro 0 Series:
    • 15.25"l (38.7cm)
    • 7.4" dia. (18.8cm)
    • 3.2lbs. (1.5kg)
  • Handline, Dual-Force & Metro 2 Series:
    • 15.62"l (39.7cm)
    • 8.6" dia. (21.8cm)
    • 3.1lbs. (1.4kg)
  • Max-Series, and ZN Series Industrial Nozzle:
    • 16.2"l (41.1cm)
    • 46lbs. (2.1kg)
