TFT's

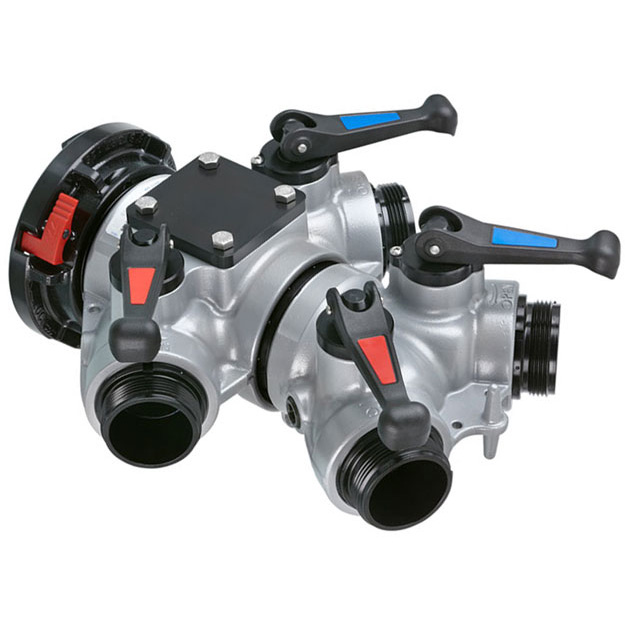

4-Way Valved Manifold is a rugged manifold with four 2.5" (64mm) valved
discharge ports, each with a full 2.5" (64mm) waterway. Maximum
operating pressure is 300 psi (21 bar). Valve seats are field
replaceable. Quarter turn valve handles with low force to move even
under pressure. Automatic valve lock keeps its position while flowing at
partial openings. Folding handles minimize storage space. Aluminum
casting is hard coat anodized and silver TFT Powder Coat finish inside
and out for maximum corrosion protection. Optional adjustable pressure
relief valve. Optional rugged .75" (19mm) air bleed valve to quickly
bleed air from the lines or to drain water from the valve housing.
Contact TFT customer service for configurations not shown.
* The most common configuration listed above is with Storz swivel and male outlets
Available options upon request:
Other threads
Rigid vs swivel
Female thread
Thread Type
100mm (4") Storz x Four (4) 65mm (2.5") BAT outlet or
125mm (5") Storz x Four (4) 65mm (2.5") BAT outlet
Product Option
With PRV (Pressure Relief Valve)

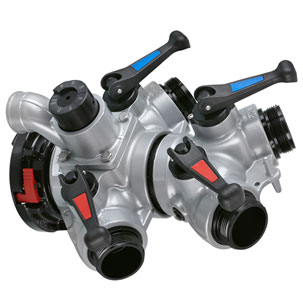

TFT 4 Way Valved Manifold
