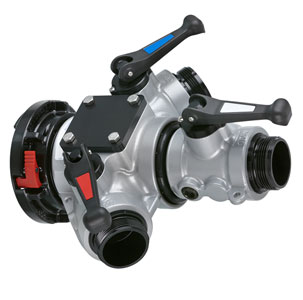

TFT's 3-Way Valved Manifold is a rugged manifold with three 2.5" (64mm) valved discharge ports, each with a full 2.5" (64mm) waterway. Maximum operating pressure is 300 psi (21 bar). Valve seats are field replaceable. Quarter turn valve handles operate with low force to move even under pressure. Automatic valve lock keeps its position while flowing at partial openings. Folding handles minimize storage space. Aluminum casting is hard coat anodized and silver TFT Powder Coat finish inside and out for maximum corrosion protection. Optional adjustable pressure relief valve. Optional rugged .75" (19mm) air bleed valve to quickly bleed air from the lines or to drain water from the valve housing. Contact TFT customer service for configurations not shown.
* The most common configuration listed above is with Storz swivel and male outlets
No PRV (Pressure Relief Valve)
With PRV (Pressure Relief Valve)
100mm (4") Storz x Three (3) 65mm (2.5") BAT outlet
125mm (5") Storz x Three (3) 65mm (2.5") BAT outlet
125mm (5") Storz x Three (3) 65mm (2.5") AMA outlet
125mm (5") Storz x Three (3) 65mm (2.5") Storz Outlet
