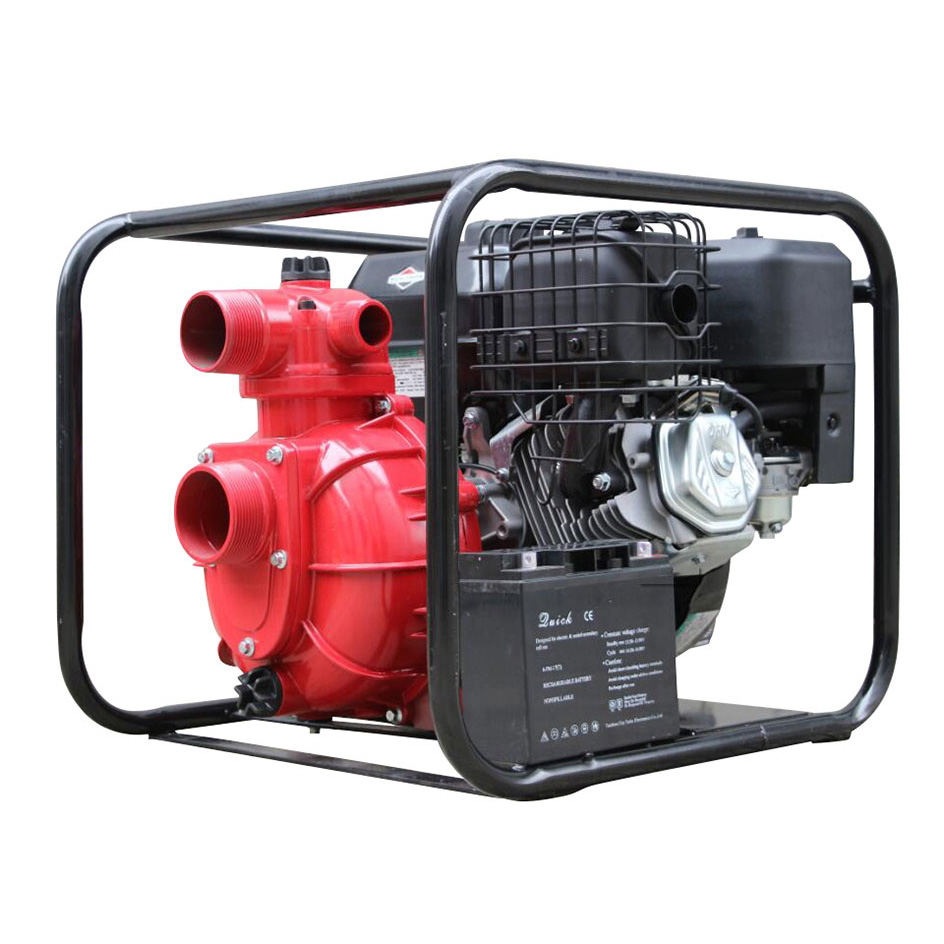

This is a compact pump that delivers amazing pressure and flow performance for its small size. Comes with electric start and battery installed. Perfect for wildland applications.
Engine Specifications
- B&S 13 hp at 3,600 RPM air cooled engine
- Single cylinder gasoline engine
- Manual and electric recoil start
- 1.74 gallon (6.6 L) integrated fuel tank
- Battery
Pump Unit Specifications
- Centrifugal pump
- Pump body made from aluminum
- Aluminum impeller
- Mechanical shaft seal
- One 2.5" (65 mm) BAT delivery outlet and two 1.5" (38mm) NPT delivery outlets
- One 3" (77 mm) NPT male suction inlet (PLEASE ORDER THE ADAPTER WITH THE THREADS YOU NEED)
- Dimensions (approx.): 23"l x 19"w x 21.25"h (585 mm x 485 mm x 540 mm)
- Weight (approx.): 105lbs. (48kg)
PERFORMANCE
- 230 gpm @ 0 psi
- 158 gpm @ 30 psi
- 140 gpm @ 50 psi
- 125 gpm @ 60 psi
- 105 gpm @ 70 psi
- 80 gpm @ 80 psi
- 60 gpm @ 100 psi
- 30 gpm @ 105 psi
- 0 gpm @ 115 psi

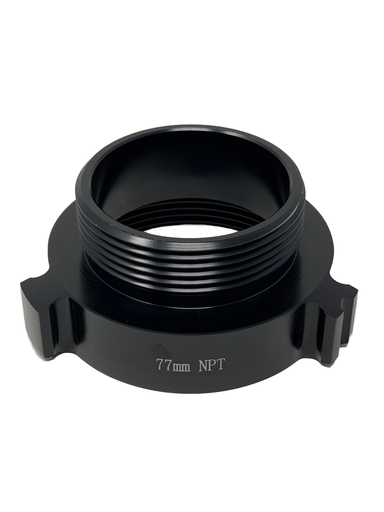

![[710002220] Female x Male Adapters (Stock) (77mm (3") Female Solid NPT x 65mm (2.5") Male Solid BAT)](https://cdn.wfrfire.com/web/image/product.product/25506/image_512/%5B710002220%5D%20Female%20x%20Male%20Adapters%20%28Stock%29%20%2877mm%20%283%22%29%20Female%20Solid%20NPT%20x%2065mm%20%282.5%22%29%20Male%20Solid%20BAT%29?unique=5a4bed9)

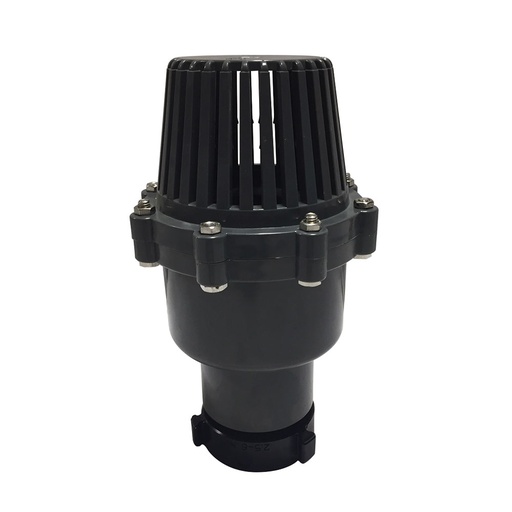

![[FV2.5BAT] Strainer Foot Valve (Fire Threads) Plastic (65mm (2.5") BAT)](https://cdn.wfrfire.com/web/image/product.product/3299/image_512/%5BFV2.5BAT%5D%20Strainer%20Foot%20Valve%20%28Fire%20Threads%29%20Plastic%20%2865mm%20%282.5%22%29%20BAT%29?unique=5f65acd)
