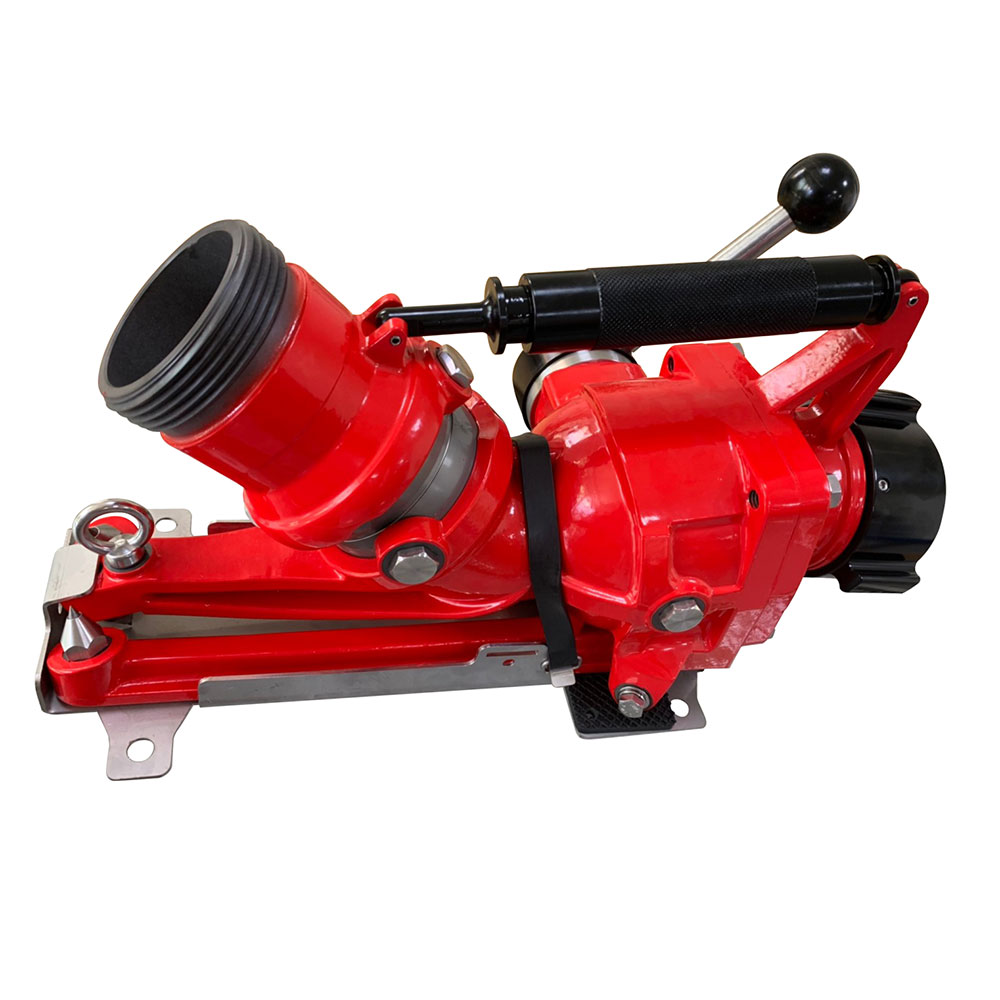

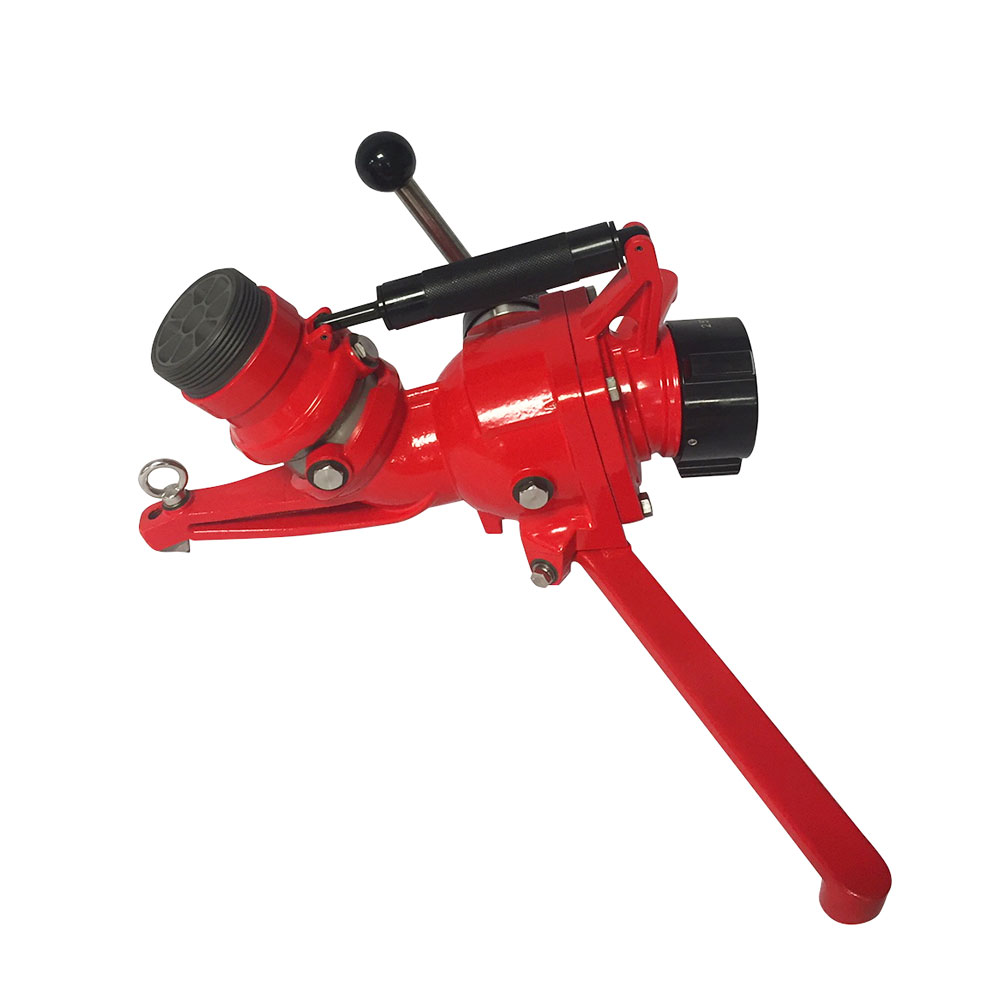

- Flow up to 500 GPM (1,900 LPM)
- Movement range: 20° horizontal travel either side & 20-60° vertical travel (manned).
- Highly maneuverable
- Simple & quick attack operation. Operates like a handline while delivering higher volumes of water.
- Compact size & light weight
- Aluminum alloy body
- Epoxy coating exterior.
- Low-profile design for stable operation.
- Carbide tip spikes on the base provide long term wear resistance & ground stability.
- Large handle for easy carry transport
- Ball shut-off locking handle
- A comprehensive range of water and self educting foam master nozzles are available for any application.
- Inlet: 65mm (2.5") BAT & WCT thread (other threads available upon request)
- Discharge Outlet: 65mm (2.5") BAT
- Dimensions:
- Stowed: 16" L x 8" W x 9" H
- Deployed: 17" L x 22.5" W x 9" H
- Weight: 15 lbs (6.7 kg)
Nozzle Options:

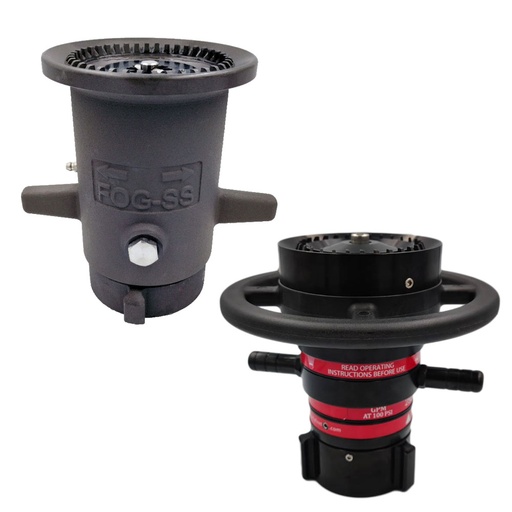

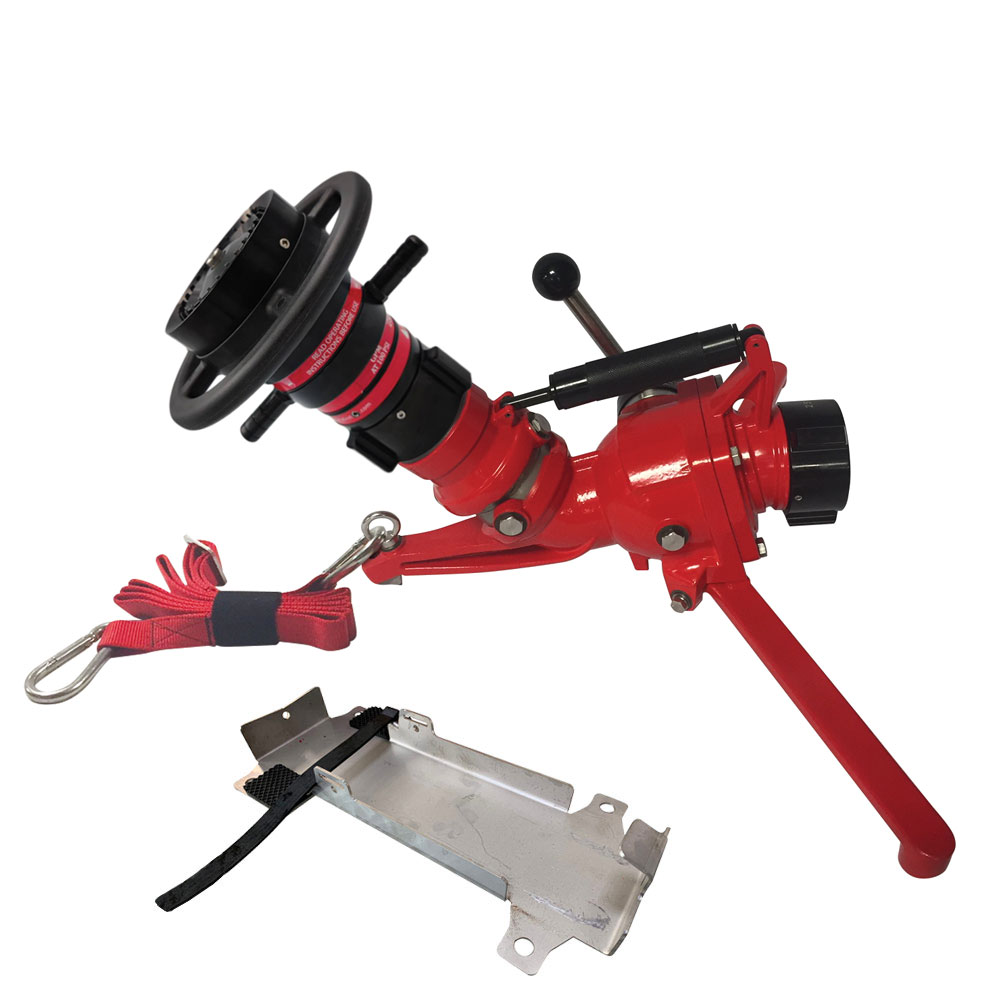

- Frontier Selectable Nozzle:
- 300-400-500gpm

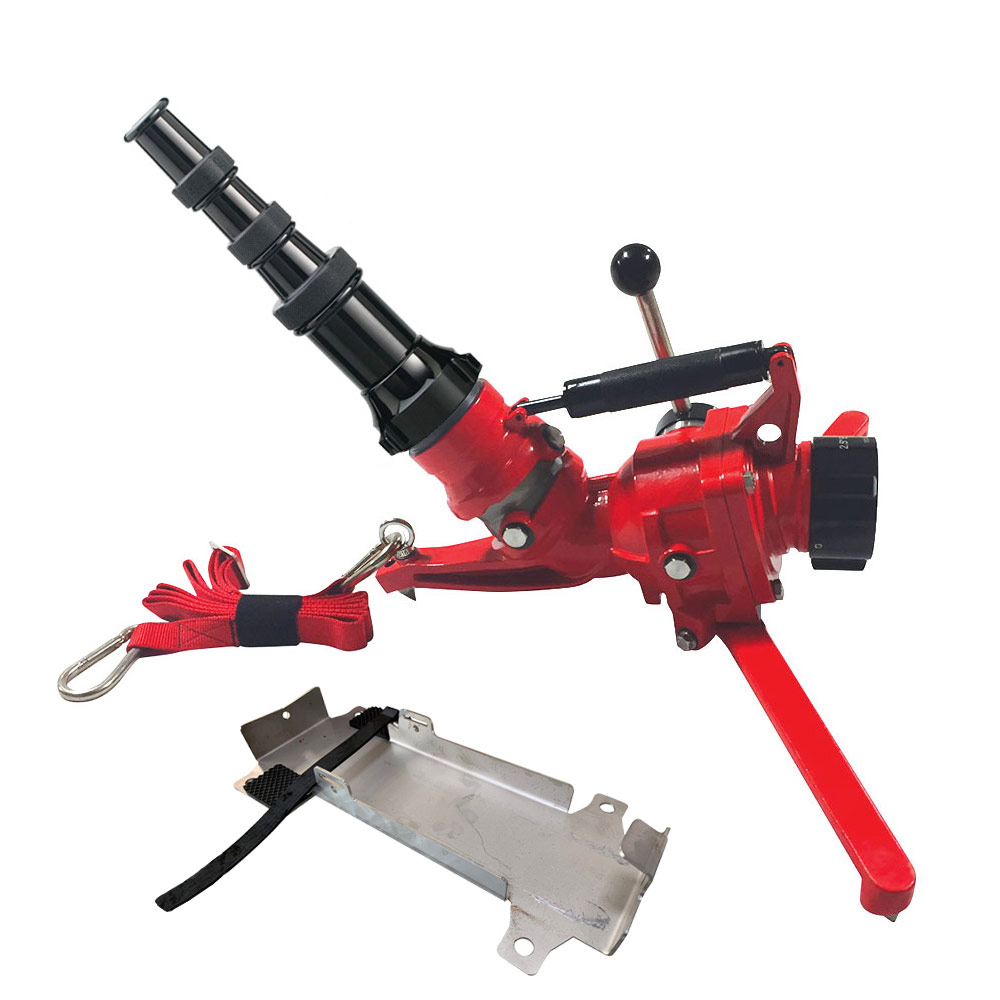

- Frontier Triple Stacked Tips:
- 25mm (1"), 29mm (1-1/8"), and 32mm (1-1/4") tips

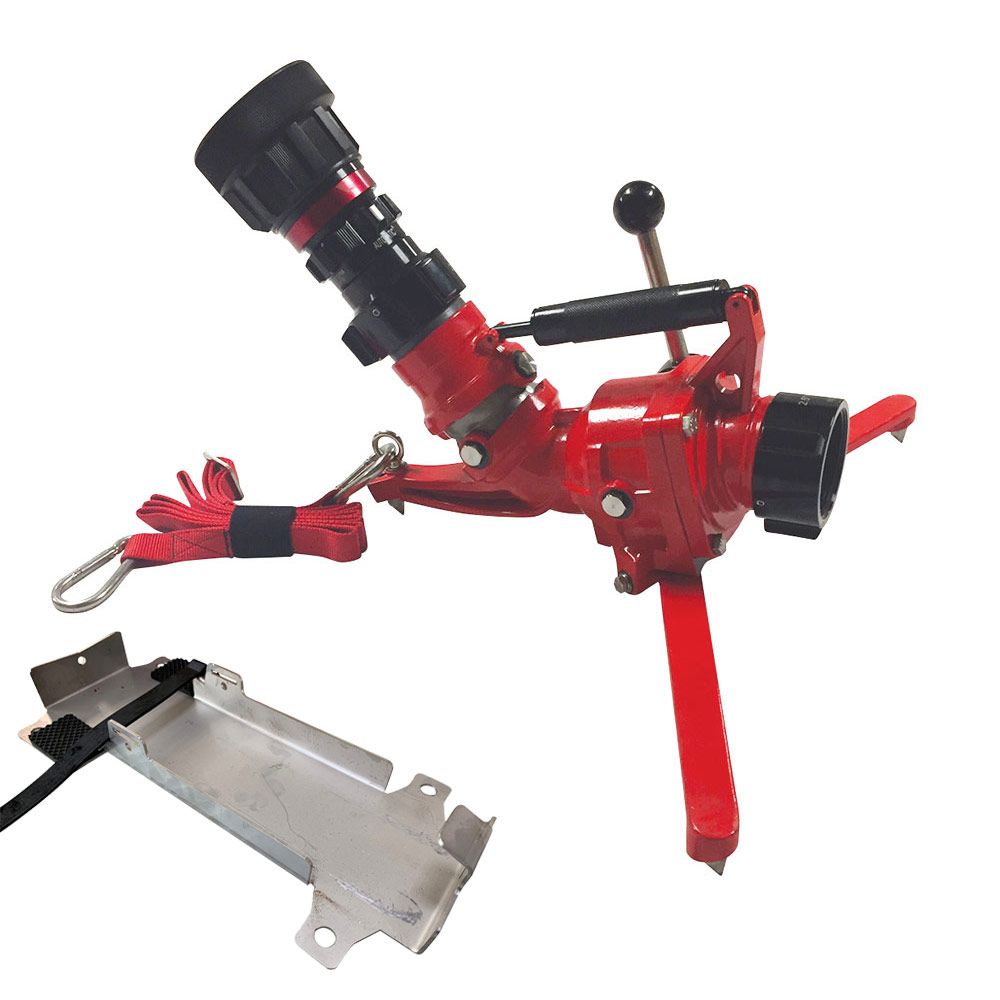

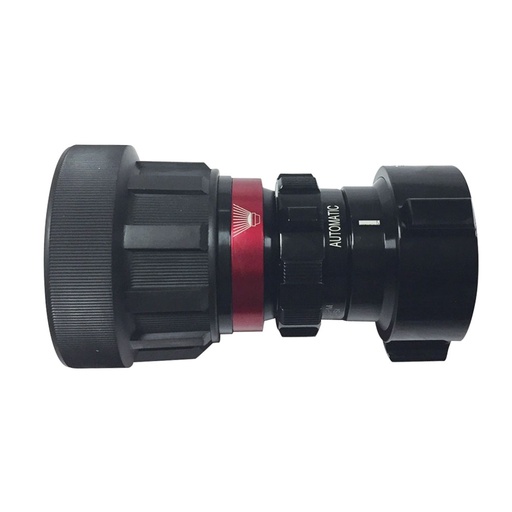

- Frontier Automatic Nozzle:
- 50gpm to 350gpm
Other nozzle options available upon request.

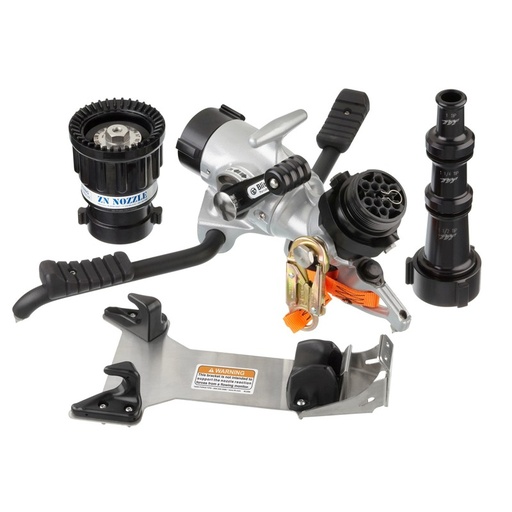

![[710004343] BlitzForce Portable Monitor Package (with MaxForce Nozzle, BAT)](/web/image/product.product/3658/image_512/%5B710004343%5D%20BlitzForce%20Portable%20Monitor%20Package%20%28with%20MaxForce%20Nozzle%2C%20BAT%29?unique=7b45851)

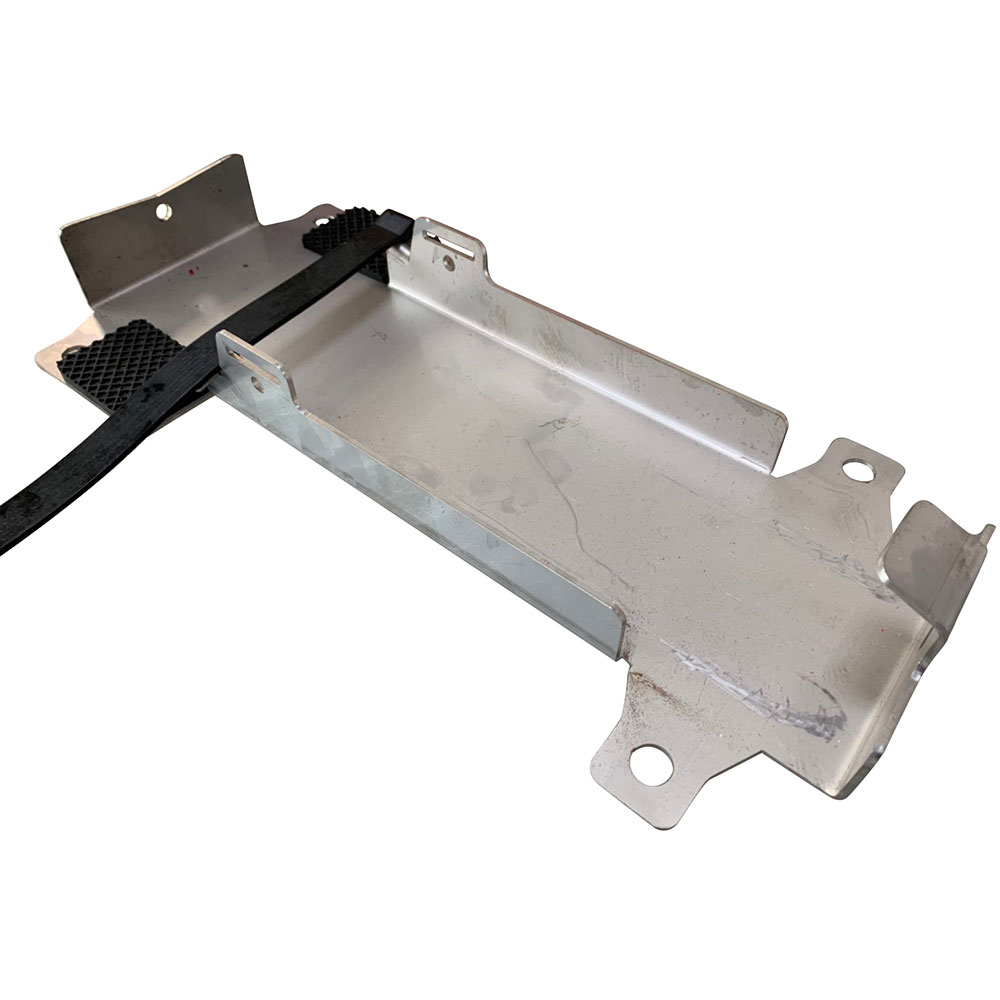

![[710004426] Chinook Frontier Portable Monitor Storage Bracket](/web/image/product.product/186/image_512/%5B710004426%5D%20Chinook%20Frontier%20Portable%20Monitor%20Storage%20Bracket?unique=7b45851)
![[710004427] Automatic Flow Monitor Nozzle 50-350gpm@100psi Frontier (BAT)](/web/image/product.product/12698/image_512/%5B710004427%5D%20Automatic%20Flow%20Monitor%20Nozzle%2050-350gpm%40100psi%20Frontier%20%28BAT%29?unique=7b45851)

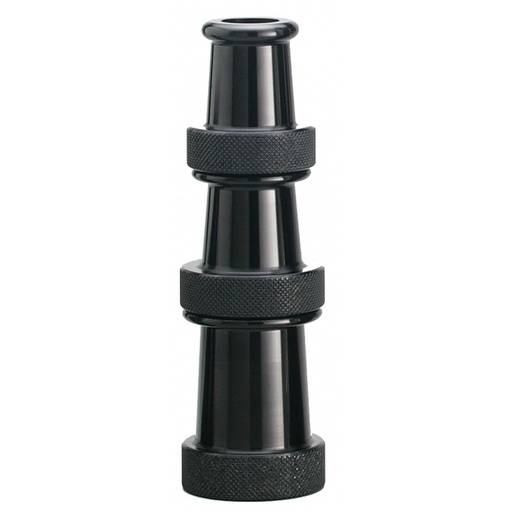

![[710005147] Frontier 3 Stacked Tips Monitor Nozzles 38mm NPSH inlet](/web/image/product.product/531/image_512/%5B710005147%5D%20Frontier%203%20Stacked%20Tips%20Monitor%20Nozzles%2038mm%20NPSH%20inlet?unique=7b45851)
