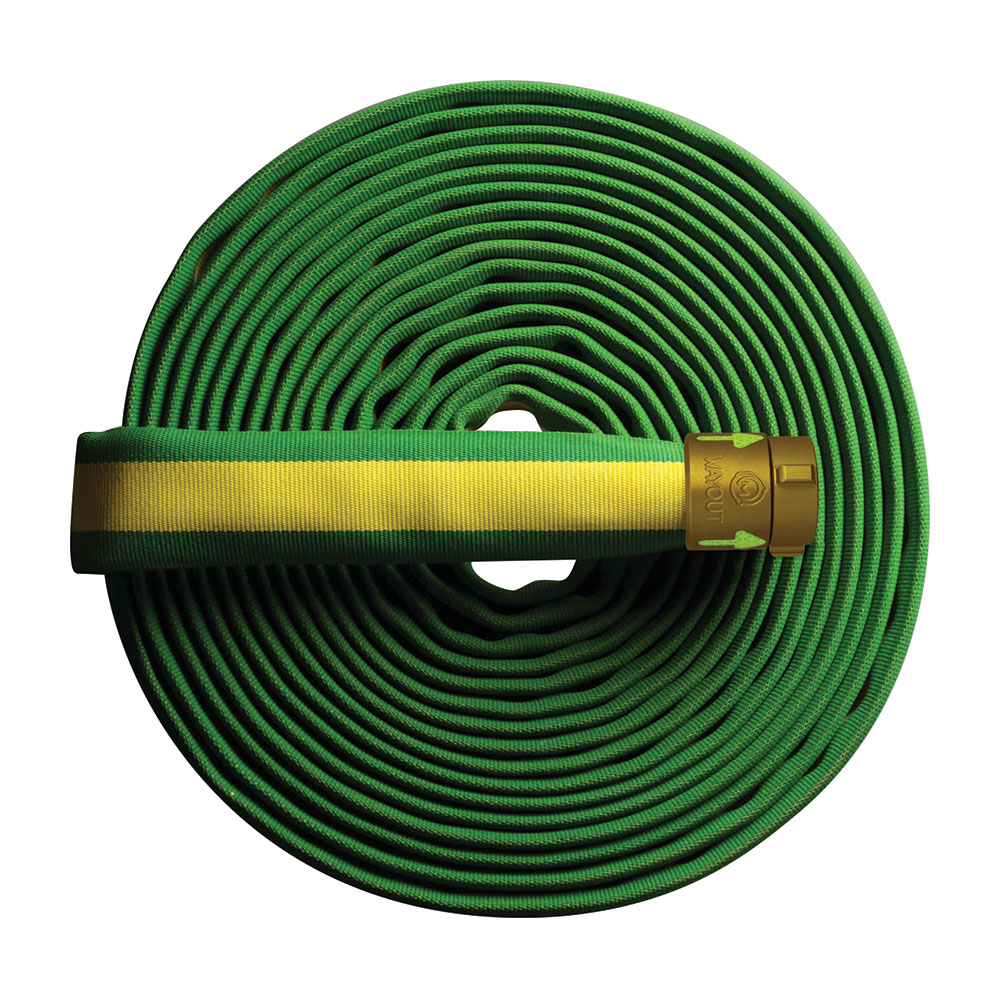

X-Stream Plus Fire Hose

Designed for aggressive interior attack where excellent abrasion and cut resistance are essential and where color coded attack lines are crucial.

APPLICATIONS

Aggressive interior attack hose
Pre-connected cross-lay and attack hose
Pre-connected front bumper attack hose
Compressed Air Foam System (CAFS) applications

FEATURES AND BENEFITS

Extremely kink resistant, even at low pressure
Features Mercedes Textiles 2-10-L warranty (“2 year All Hazards”, “10 year against manufacturing defects” and “Lifetime against delamination”)
Comes standard with Gold Anodized Mertex Wayout® couplings
Standard with the Identify™ recessed area for color coding, bar coding and/or identification markings
Premium all synthetic double jacket
Standard with Technolac™ treatment in eight (8) NFPA colors options
Remains flexible to -35º F (-36º C)
Exceeds NFPA 1961 and UL Standard Performance requirements

X-Stream Plus 2.5" is not available in lengths over 50ft.

Hose Size (Diameter)	Service Pressure	Proof Pressure	Burst Pressure	Coil Diamter/50'	Weight/50' Uncpld
1.75" (44mm)	500 PSI	1000 PSI	1,500 PSI	16.5" (42cm)	18.5lbs. (8.4kg)
2.5" (65mm)	400 PSI	800 PSI	1,200 PSI	17" (43cm)	26.5lbs. (12kg)

Hose Configuration

44mm (1.75") Storz x 50ft -Specify Colour or 44mm (1.75") NPSH x 25ft Green or 44mm (1.75") NPSH x 50ft Red or 44mm (1.75") NPSH x 50ft Green or 44mm (1.75") NPSH x 50ft Green w/Yellow Stripe or 65mm (2.5") BAT x 25ft Green or 65mm (2.5") BAT x 50ft Red or 65mm (2.5") BAT x 50ft Green or 65mm (2.5") BAT x 100ft Green or 65mm (2.5") WCT x 50ft Green

Warranty
