Never in firefighter history has one fan worked with your department’s

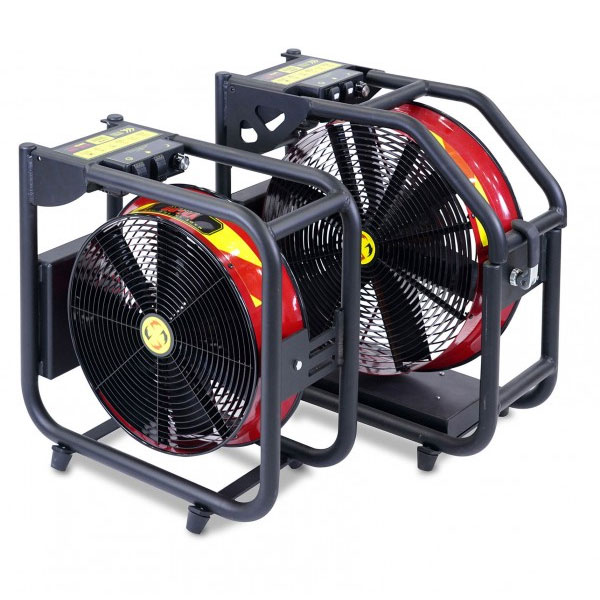

other battery-operated tools. Until now. The Super Vac variable-speed
battery fan, equipped with dual DeWalt or Milwaukee batteries, is the
most swappable PPV interface on the market. Finally, the industry can
turn to a fan with a trusted battery name that pairs with Super Vac’s
dependable history.
At Super Vac, we have all the angles of attack covered — and then
some. You won’t find another battery fan that offers 180 degrees of tilt
like this. Just one feature truly sets this battery fan apart from the
others.
All Models Feature:
- Compact, Roll-Cage Frame features a tough, yet lightweight
aluminum frame to protect key components while providing a compact,
lightweight design.
- 180-Degree Tilt provides the largest tilt range among battery fans, allowing airflow to be directed virtually anywhere
- DeWalt FlexVolt Lithium Ion Batteries provide up to 45 minutes of max airflow, depending on battery selection.
- Polymer Blades minimize weight; Super Vac’s single-piece cast aluminum blade is available by request.
- Precision-Spun
Steel Shroud with StreamShaper Guard: Shroud provides durability with
max airflow, while the StreamShaper guard allows for flexible setback;
Air Cone Guard available on request.
- 5 year warranty on battery fan components & 3 year warranty on motor/battery.
- Optional Shore Power: 120-240 V AC operation is available upon request.
Additional Features on 18" & 20" Models
- Fold-Down Ergonomic Handle folds into the frame for compact
storage; features full-width handle for easy grip with heavy-duty gloves
- Flat-Proof Rubber Tires are highly maneuverable, and all without lifting the fan; easy to deploy by the smallest firefighters
| Model |
Battery Model |
Fan Size |
Weight |
RPM |
Run Time* |
AMCA 240-22 Certified Output |
16"
V16-BL-SP |
Milwaukee M18 |
22.75″ x 23″ x 12″
(580mm x 585mm x 305mm) |
45lbs.
(20kg) |
2,216 |
Up to 46 min. |
7,721cfm***
(13,118cmh) |
16"
V16-BD-SP |
DeWalt FLEXVOLT |
22.75″ x 23″ x 12″
(580mm x 585mm x 305mm) |
45lbs.
(20kg) |
2,100 |
Up to 53 min. |
8,127cfm***
(13,808cmh) |
16"
V16-BW-SP |
Milwaukee M28 |
22.75″ x 23″ x 12″
(580mm x 585mm x 305mm) |
45lbs.
(20kg) |
2,089 |
Up to 52 min. |
8,084cfm**
(13,735cmh) |
18"
V18-BL-SP |
Milwaukee M18 |
25.50″ x 26″ x 12.25″
(650mm x 660mm x 315mm) |
58lbs.
(26kg) |
1,889 |
Up to 53 min. |
8,946cfm***
(15,199 cmh) |
18"
V18-BD-SP |
DeWalt FLEXVOLT |
25.50″ x 26″ x 12.25″
(650mm x 660mm x 315mm) |
58lbs.
(26kg) |
1,828 |
Up to 56 min. |
8,489fm***
(14,423cmh) |
18"
V18-BW-SP |
Milwaukee M28 |
25.50″ x 26″ x 12.25″
(650mm x 660mm x 315mm) |
56lbs.
(25kg) |
1,810 |
Up to 47 min. |
8,416cfm***
(14,299cmh) |
20"
V20-BL-SP |
Milwaukee M18 |
28.25″ x 28.75″ x 12.5″
(720mm x 730mm x 320mm) |
62lbs.
(29kg) |
2,059 |
Up to 62 min. |
9,867cfm***
(16,764cmh) |
20"
V20-BD-SP |
DeWalt FLEXVOLT |
28.25″ x 28.75″ x 12.5″
(720mm x 730mm x 320mm) |
63lbs.
(28.5kg) |
2,018 |
Up to 58 min. |
9,456cfm***
(16,066cmh) |
20"
V20-BW-SP |
Milwaukee M28 |
28.25″ x 28.75″ x 12.5″
(720mm x 730mm x 320mm) |
61lbs.
(28kg) |
2,048 |
Up to 43 min. |
9,596cfm***
(16,304cmh) |
| Model |
Battery Model |
Fan Size |
Weight |
RPM |
Run Time* |
AMCA 240-22 Certified Output |
16"
V16-BL-SP |
Milwaukee M18 |
22.75″ x 23″ x 12″
(580mm x 585mm x 305mm) |
45lbs.
(20kg) |
2,216 |
Up to 46 min. |
7,721cfm***
(13,118cmh) |
16"
V16-BD-SP |
DeWalt FLEXVOLT |
22.75″ x 23″ x 12″
(580mm x 585mm x 305mm) |
45lbs.
(20kg) |
2,100 |
Up to 53 min. |
8,127cfm***
(13,808cmh) |
16"
V16-BW-SP |
Milwaukee M28 |
22.75″ x 23″ x 12″
(580mm x 585mm x 305mm) |
45lbs.
(20kg) |
2,089 |
Up to 52 min. |
8,084cfm**
(13,735cmh) |
18"
V18-BL-SP |
Milwaukee M18 |
25.50″ x 26″ x 12.25″
(650mm x 660mm x 315mm) |
58lbs.
(26kg) |
1,889 |
Up to 53 min. |
8,946cfm***
(15,199 cmh) |
18"
V18-BD-SP |
DeWalt FLEXVOLT |
25.50″ x 26″ x 12.25″
(650mm x 660mm x 315mm) |
58lbs.
(26kg) |
1,828 |
Up to 56 min. |
8,489fm***
(14,423cmh) |
18"
V18-BW-SP |
Milwaukee M28 |
25.50″ x 26″ x 12.25″
(650mm x 660mm x 315mm) |
56lbs.
(25kg) |
1,810 |
Up to 47 min. |
8,416cfm***
(14,299cmh) |
20"
V20-BL-SP |
Milwaukee M18 |
28.25″ x 28.75″ x 12.5″
(720mm x 730mm x 320mm) |
62lbs.
(29kg) |
2,059 |
Up to 62 min. |
9,867cfm***
(16,764cmh) |
20"
V20-BD-SP |
DeWalt FLEXVOLT |
28.25″ x 28.75″ x 12.5″
(720mm x 730mm x 320mm) |
63lbs.
(28.5kg) |
2,018 |
Up to 58 min. |
9,456cfm***
(16,066cmh) |
20"
V20-BW-SP |
Milwaukee M28 |
28.25″ x 28.75″ x 12.5″
(720mm x 730mm x 320mm) |
61lbs.
(28kg) |
2,048 |
Up to 43 min. |
9,596cfm***
(16,304cmh) |
*Runtimes vary based on selected battery. **The listed ratings are
based on tests and procedures in accordance with AMCA Standard 240-22.
***All other outputs in this chart are based on results from comparable
AMCA 240-22 testing procedures.
