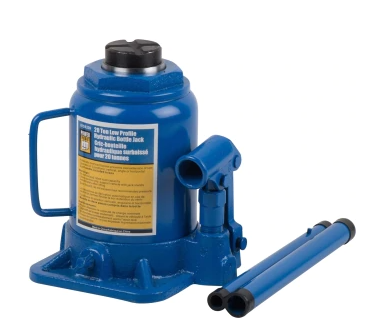

Hydraulic Jack - 20 Ton Low-Profile Multi-Positional Hydraulic Bottle Jack
710003173
This multi-positional bottle jack can be used vertically or horizontally up to 90°. It features electrostatic painted steel construction and a 2 piece handle.
Feature(s)
- Can be used vertically or horizontally up to a 90° angle for versatility. Electrostatic painted steel construction for strength, durability and corrosion resistance. Two piece handle for easy transport and storage.
Application(s)
- Ideal for lifting cars, trucks, farm vehicles, machinery and more.
Attributes and Specifications
| Package (L x W x H) | 7.2 x 6.7 x 8.5 in. (18cm x 17cm x 21.5cm) |
| Weight | 22.3 lbs (10kg) |
| Finish | Painted |
| Type | Low-profile multi-positional |
| Lift Capacity (ton) | 20 |
| Packaging (qty) | 1 |
| Screw Top Adjustment | 3-1/8" (7.8cm) |
| Min. Lift Height | 8-1/4" (21cm) |
| Ram Travel | 4" (10.2cm) |
| Max. Lift Height | 15-1/4" (38.7cm) |
| Material | Steel |
| Max. Lift Height | 1-7/16" (3.7cm) |
| Operation | Manual |
