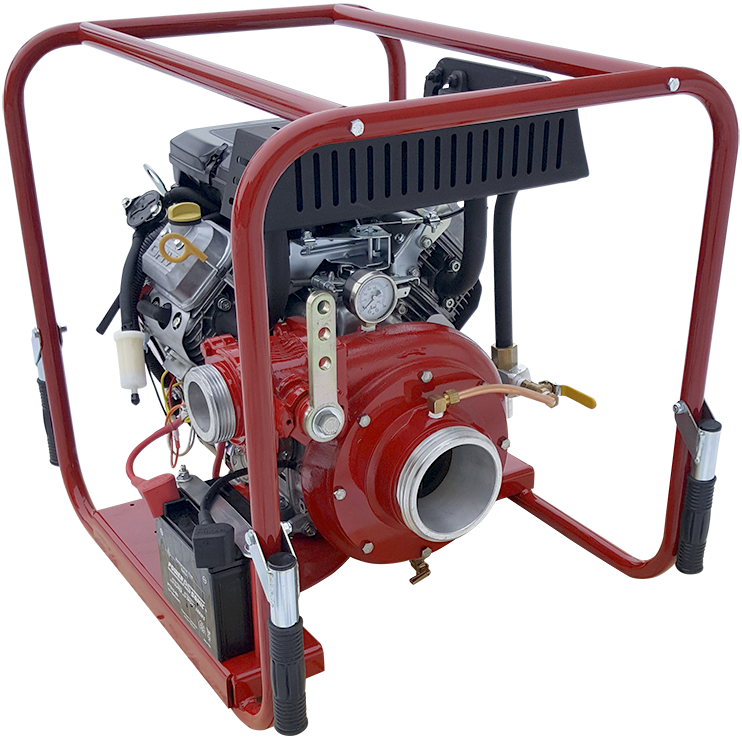

This pressure/volume pump is the most suitable for drop-in units. The engine and pump are mounted on a steel protective frame with folding handles.
Vanguard. Model 3564, air colled engine.
2-cylinder, 4-stroke gasoline engine.
Electric start with recoil start backup.
6 gallon (22L) detachable fuel tank.
16 Amp alternator.
Pump Unit Specifications:
C.E.T. single stage centrifugal pump.
Pump body made from high resistant aluminum alloy.
Mechanical shaft seal.
Stainless steel pump shaft.
Exhaust priming system, guarnteed up to 20' (6 metere lift).
(1) 65mm (2.5") delivery outlet with Fire Type swing-out-valve.
(1) 100mm (4") suction inlet.
Dimension: 27.5" L x 22" W x 24" H
Weight: 172 lbs (78 kg).
390 gpm @ 25 psi
310 gpm @ 50 psi
130 gpm @ 100 psi
45 gpm @ 125 psi
