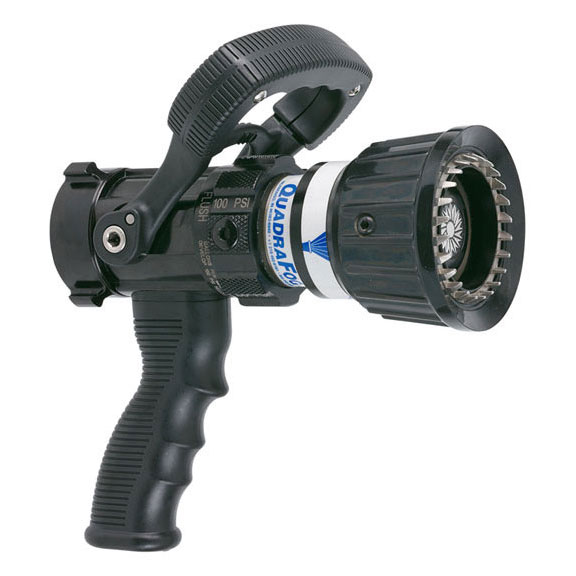

TFT QuadraFog Selectable Nozzle

Product Parts
- With pistol grip
Nozzle Configuration
- 25mm (1") 5/10/24/40gpm@100psi
- 38mm (1.5") 110-230-360-470 lpm@100psi
- 38mm (1.5") 30-60-95-125 gpm@75psi
- 38mm (1.5") (30-60-95-125@100psi)
Thread Type
- NPSH
- NHT
Nozzle Teeth
- Spinning
- Fixed

This combination does not exist.

Nozzles/Monitors

The QuadraFog Series is available with four selectable flow settings of 30, 65, 95, and 125 gpm at 100 psi (110, 230, 360, 470 l/min @ 7 bar). The compact QuadraFog is a rugged and dependable .

Our common configuration comes with pistol grip, stainless steel ball shut-off, spinning teeth, and black bale and pistol grip. Other options are available below.

Made of all lightweight materials, hardcoat anodized aluminum
Flush without shutting down
Tip only configuration has an "off" position for break-and-extend operations
Quick change rear valve seat and stainless steel shut-off ball
Pistol grip is mounted below the valve
NFPA 1964 compliant and FM approved

Available options upon request:

No pistol grip
Tip only, playpipe configuration
Fixed Teeth
Other thread types
Other coloured pistol grips and handle covers
Metric labeling

Nozzle Configuration	25mm (1") 5/10/24/40gpm@100psi or 38mm (1.5") 110-230-360-470 lpm@100psi or 38mm (1.5") 30-60-95-125 gpm@75psi or 38mm (1.5") (30-60-95-125@100psi)
Thread Type	NPSH or NHT
Nozzle Teeth	Spinning or Fixed
Product Parts	With pistol grip
