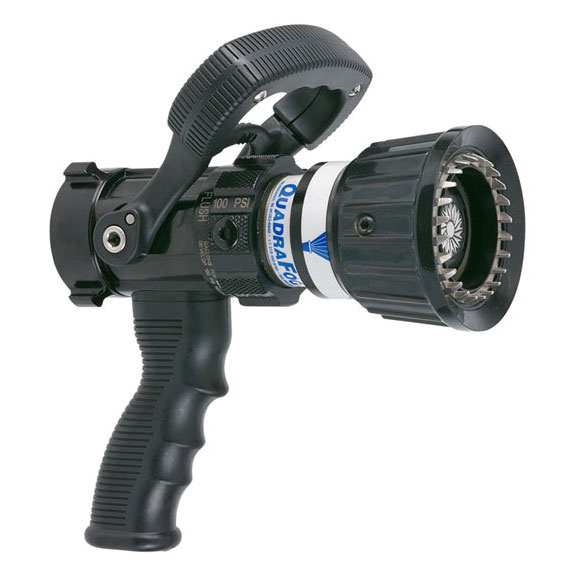

TFT QuadraFog Selectable Nozzle
The QuadraFog Series is available with four selectable flow settings of 30, 65, 95, and 125 gpm at 100 psi (110, 230, 360, 470 l/min @ 7 bar). The compact QuadraFog is a rugged and dependable .
Our common configuration comes with pistol grip, stainless steel ball shut-off, spinning teeth, and black bale and pistol grip. Other options are available below.
- Made of all lightweight materials, hardcoat anodized aluminum
- Flush without shutting down
- Tip only configuration has an "off" position for break-and-extend operations
- Quick change rear valve seat and stainless steel shut-off ball
- Pistol grip is mounted below the valve
- NFPA 1964 compliant and FM approved
Available options upon request:
- No pistol grip
- Tip only, playpipe configuration
- Fixed Teeth
- Other thread types
- Other coloured pistol grips and handle covers
- Metric labeling

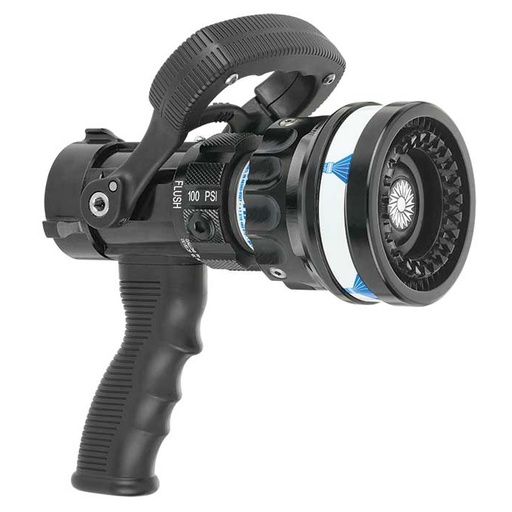

![[V-12546] TFT QuadraCup Foam Selectable Nozzle (38mm (1.5") (30-60-95-125@100psi), NHT)](/web/image/product.product/12546/image_512/%5BV-12546%5D%20TFT%20QuadraCup%20Foam%20Selectable%20Nozzle%20%2838mm%20%281.5%22%29%20%2830-60-95-125%40100psi%29%2C%20NHT%29?unique=365cdda)

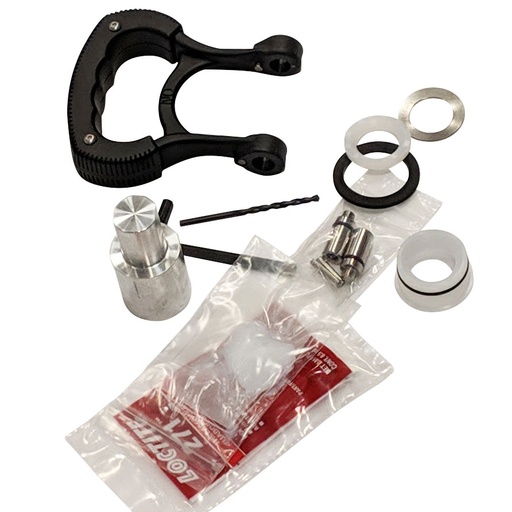

![[465410110] F100 HANDLE-REPAIR KIT](/web/image/product.product/2103/image_512/%5B465410110%5D%20F100%20HANDLE-REPAIR%20KIT?unique=365cdda)

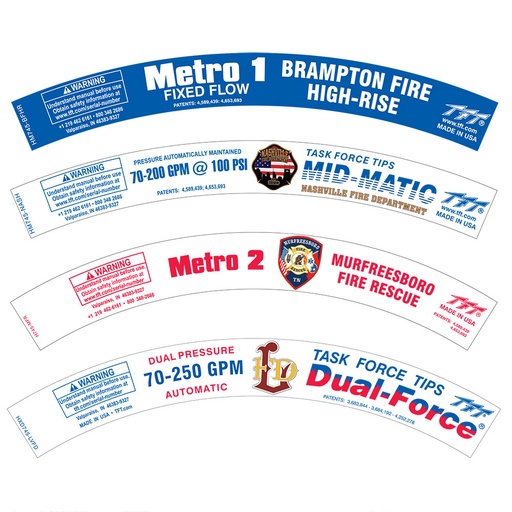

![[710003179] TFT Custom Reflective Label](/web/image/product.product/197/image_512/%5B710003179%5D%20TFT%20Custom%20Reflective%20Label?unique=365cdda)

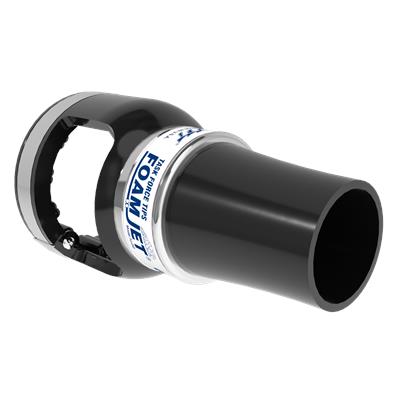

![[V-17317] TFT FoamJet - Low Expansion Foam Attachment (QuadraFog)](/web/image/product.product/17317/image_512/%5BV-17317%5D%20TFT%20FoamJet%20-%20Low%20Expansion%20Foam%20Attachment%20%28QuadraFog%29?unique=365cdda)

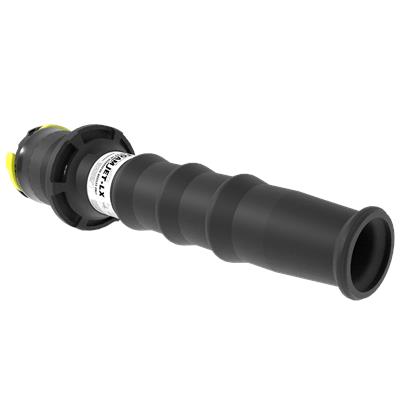

![[V-17319] TFT FoamJet LX - Low Expansion Foam Attachment (QuadraFog)](/web/image/product.product/17319/image_512/%5BV-17319%5D%20TFT%20FoamJet%20LX%20-%20Low%20Expansion%20Foam%20Attachment%20%28QuadraFog%29?unique=365cdda)

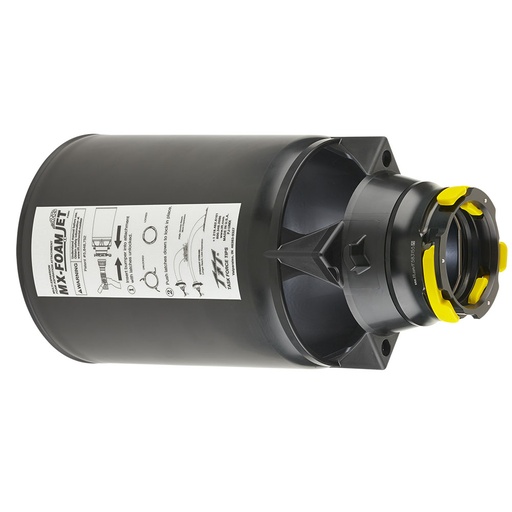

![[V-21081] FoamJet Aspirating Nozzle Attachment (Multi Expansion - Quadrafog 1.5")](/web/image/product.product/21081/image_512/%5BV-21081%5D%20FoamJet%20Aspirating%20Nozzle%20Attachment%20%28Multi%20Expansion%20-%20Quadrafog%201.5%22%29?unique=365cdda)
