The unique shape of SMC’s aluminum side plates allow the efficient use of Prusik hitches as a belay or progress capture device. Constructed with a 3” (77mm) diameter sheave running on a high efficiency ball bearing. Low profile fasteners help eliminate the possibility of the pulley snagging. Pulley will accommodate up to 13 mm rope.
- Ball bearing
- Large top hole easily accepts 3 large carabiners
- Designed for 11 mm to 13 mm ropes
- Precision machined aluminum side plates and 3” (77mm) sheaves
- Sealed bearings
- Double pulleys include a becket

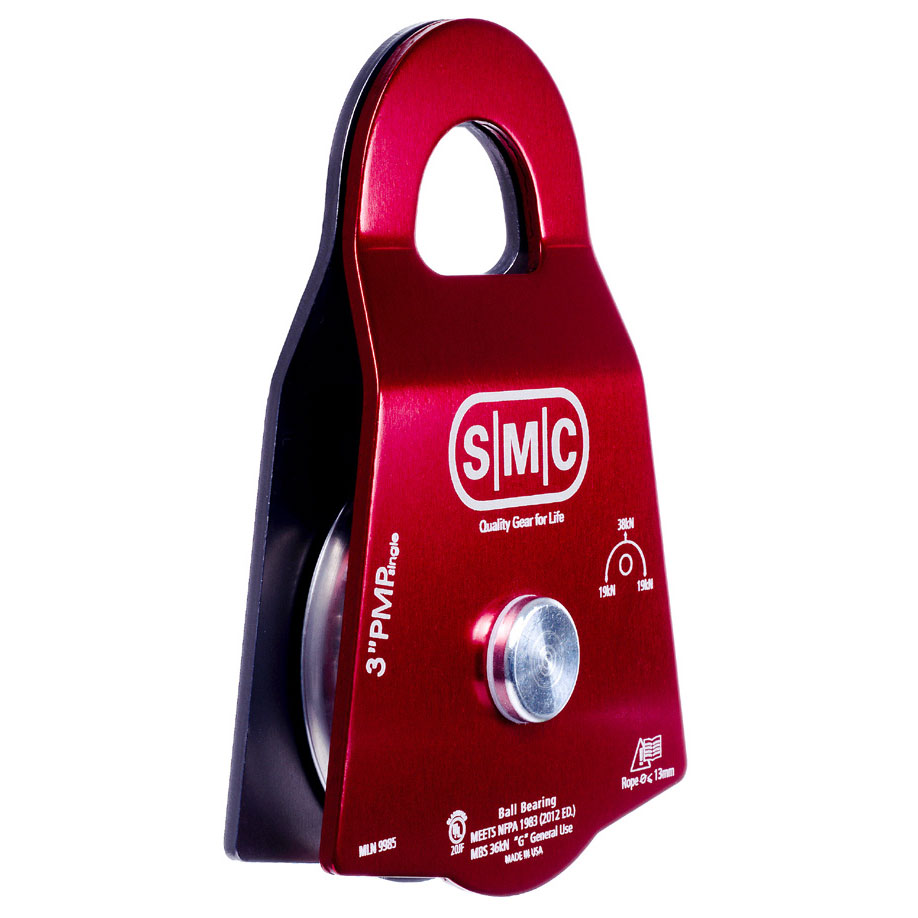

Single Pulley Specifications
- 1.38"h x 4.17"w x 5.85"l (3.5cm x 10.6cm x 14.9cm)
- Weight: 12.5oz (354 g)
- MBS: 38 kN (8,542 lbf)
- Tread: 2.46" (63mm)
- Axle: Ball Bearing
- Sheave Material: Aluminum
- Sheave: 2.97" (75mm)
- Max. Rope Size: 13mm

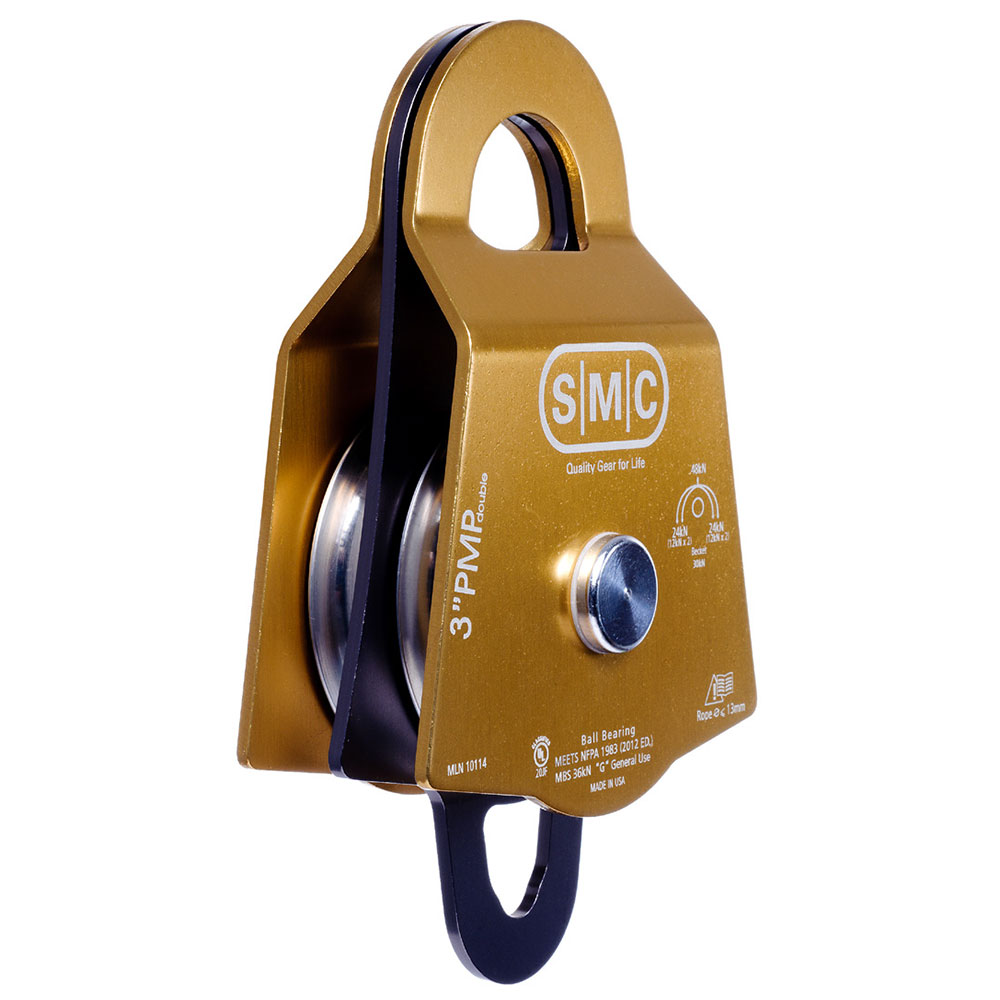

Double Pulley Specifications
- 2.2"h x 4.17"w x 7.1"l (5.6cm x 10.6 cm x 18cm)
- Weight: 1.3 lbs (590g)
- MBS: 48 kN (10,790 lbf)
- Tread: 2.46" (63mm)
- Axle: Ball Bearing
- Sheave Material: Aluminum
- Sheave: 2.97" (75mm)
- Max Rope Size: 13mm
- Becket Strength: 30 kN (6,744 lbf)
Accessory Products

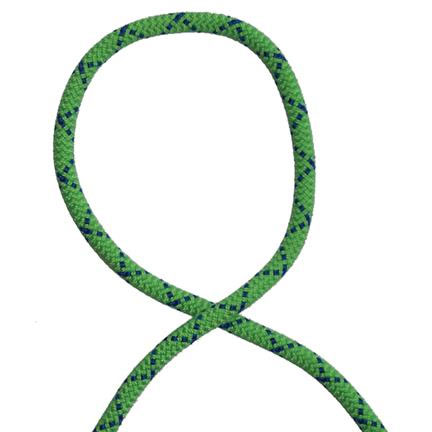

![[526310218] Rope 8mm Prusik Cord - PMI (Green/Blue, 50m spool (164ft))](/web/image/product.product/4168/image_512/%5B526310218%5D%20Rope%208mm%20Prusik%20Cord%20-%20PMI%20%28Green-Blue%2C%2050m%20spool%20%28164ft%29%29?unique=6e55cda)

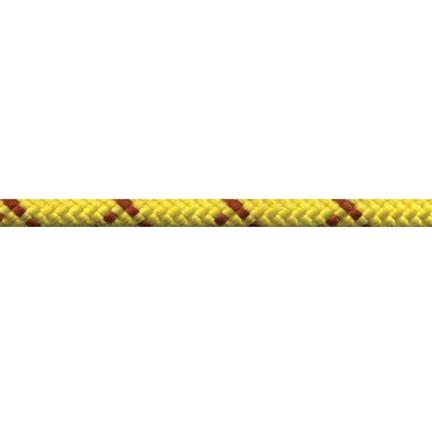

![[V-16399] Rope 7mm Prusik Cord - PMI (Yellow/Red, 50m spool (164ft))](/web/image/product.product/16399/image_512/%5BV-16399%5D%20Rope%207mm%20Prusik%20Cord%20-%20PMI%20%28Yellow-Red%2C%2050m%20spool%20%28164ft%29%29?unique=6e55cda)
