Low-pressure
lifting bags are used for lifting very large objects. They have special
Top Grip pads bonded to the top and bottom of the bag. Top Grip pad
offers heavy duty protection from slipping, puncture, abrasion and
premature wear. Used for up-righting trucks, rail cars, and other types
of vehicles or structures.
This product is only the air bag. See the connection details below and the related products to complete the set up required
Hook-up/Connection details:
- Connect SCBA bottle to regulator
- Connect high pressure hose to regulator
- Connect other end of high pressure hose to controller
- Connect low pressure hoses between controller and bags
Technical Data
| Model# | Diameter | Height | Weight | Working Pressure | Air Requirement | Max Lifting Capacity | Max Lifting Height | Inflation Valve Thread Size |
| MS 45 | 102 cm (40") | 10 cm (4") | 35 lbs (16 kg) | 7.3 psi (0.5 bar) | 20 cu ft | 4 tons | 45 cm (18") | R 1/2"-male |
| MS 122 | 135 cm (53") | 10 cm (4") | 66 lbs (30 kg) | 7.3 psi (0.5 bar) | 93 cu ft | 7 tons | 122 cm (48") | R 3/4"-male |

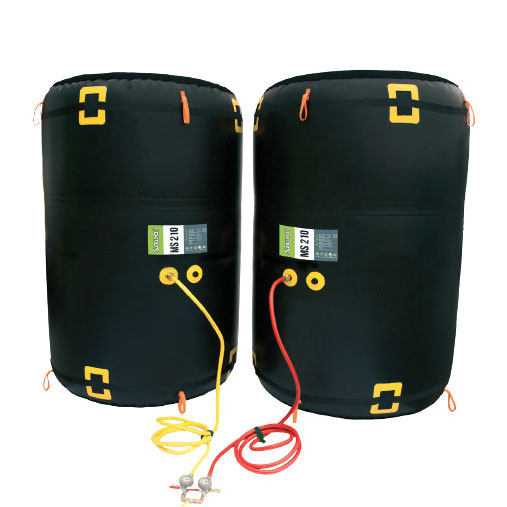

| MS 210 | 145 cm (57") | 10 cm (4") | 95 lbs (43 kg) | 7.3 psi (0.5 bar) | 184 cu ft | 9 tons | 210 cm (83") | R 3/4"-male |
