Frontier 10 Bar High-Pressure Lifting Bag System

 Product Overview

The Frontier 10 Bar Lifting Bag System is designed for fire departments, rescue teams, industrial emergency response crews, and heavy rescue applications where controlled lifting power is required in a compact, portable system.

These high-pressure lifting bags are used to lift, spread, stabilize, or create working space during rescue and recovery operations. They are commonly used in vehicle rescue, machinery entrapment, structural collapse response, industrial incidents, farm rescue, and other emergency situations where heavy objects must be lifted safely and gradually.

Operating at 10 bar / 145 psi, Frontier lifting bags provide strong lifting performance while remaining thin enough to be inserted into tight spaces. Their low-profile design allows responders to start a lift where conventional jacks or lifting equipment may not fit.

Designed for Fire & Rescue Use

Frontier lifting bags are built for emergency response environments where equipment must be easy to deploy, reliable under pressure, and simple to operate with gloved hands. When paired with the proper controller, pressure reducer, air hoses, and SCBA air source, the system gives rescuers controlled lifting capability in the field.

The system can be supplied as a complete two-bag package or as individual components, allowing departments to build a system that fits their rescue needs and budget.

Key Features

·         10 bar / 145 psi operating pressure: Provides strong lifting force in a compact rescue lifting bag.

·         Low-profile design: Approximately 2.5 cm / 1 inch thick, allowing the bag to be inserted into tight spaces before inflation.

·         Multiple lifting capacities available: Frontier lifting bags are available in selected sizes from 32 ton to 60 ton capacity.

·         Two-bag system capability: The double controller allows two lifting bags to be operated independently for controlled, balanced lifting.

·         Colour-coded air hoses: 10 metre yellow and blue air hoses help operators identify each bag connection quickly during operation.

·         SCBA bottle compatible system: The pressure reducer assembly is designed to connect from an SCBA bottle (supplied by customer) to the control system.

·         Portable and compact: Lifting bags are easier to transport and position than many mechanical lifting devices.

·         Suitable for rescue and industrial use: Useful for fire departments, technical rescue teams, public works, utilities, industrial plants, mining, agriculture, and heavy ​ ​equipment response.

Common Applications

·         Vehicle rescue and extrication

·         Heavy truck and equipment rescue

·         Machinery entrapment

·         Industrial maintenance and emergency response

·         Structural collapse and urban search and rescue support

·         Farm and agricultural rescue

·         Rail, fleet, and public works applications

·         Creating access space for cribbing, stabilization, or patient removal

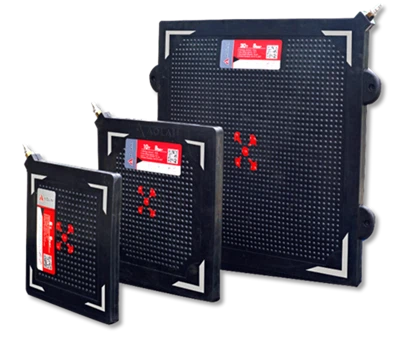

Available Frontier Lifting Bag Sizes

ALQD-30 - 32 Ton Lifting Bag

The ALQD-30 is the most compact Frontier lifting bag currently offered. Its smaller footprint makes it a practical option for tighter spaces where initial lift height or insertion clearance is limited.

ALQD-50 - 40 Ton Lifting Bag

The ALQD-50 offers increased lifting capacity while still maintaining a low-profile design. This is a strong general-purpose size for departments looking for a balance between lifting power and portability.

ALQD-70 - 60 Ton Lifting Bag

The ALQD-70 is the largest Frontier lifting bag currently offered by WFR. It is designed for higher-capacity lifting situations where a larger contact area and greater lifting force are required.

Complete Two-Bag Packages

WFR offers Frontier lifting bag systems as complete packages for departments that want a ready-to-build rescue lifting setup.

64 Ton Package

The 64 Ton Frontier Lifting Bag Package includes two 32 ton lifting bags and the main control components required for a two-bag system.

80 Ton Package

The 80 Ton Frontier Lifting Bag Package includes two 40 ton lifting bags and the main control components required for a two-bag system.

System Components

Double Controller

The Frontier double controller is designed for operating two lifting bags independently. This allows the operator to inflate, hold, and deflate each bag separately for better control during lifting operations.

Use: Two-bag lifting systems | Function: Independent inflation and deflation control

Pressure Reducer with High-Pressure Hose

The pressure reducer connects the air source to the lifting bag control system. It is used to reduce the high-pressure air from an SCBA bottle to a controlled working pressure suitable for the lifting bag system.

Use: Connects SCBA bottle to controller | Includes: 5/8" high-pressure hose

10 Metre Air Hoses

Colour-coded air hoses connect the controller to the lifting bags. The yellow and blue hoses make it easier to identify each bag during operation, especially when using a two-bag setup.

Available colours: Yellow and Blue | Length: 10 metres | Use: Controller to lifting bag connection

Splitter for Additional Bags

A splitter may be used when additional air distribution is required. This allows departments to expand or adapt the system depending on the rescue setup.

Use: Additional air distribution where required

Suggested Website Product Description

The Frontier 10 Bar Lifting Bag System provides fire departments and rescue teams with a compact, powerful, and controlled lifting solution for vehicle rescue, machinery entrapment, industrial emergencies, and heavy rescue applications. Operating at 10 bar / 145 psi, these low-profile lifting bags can be inserted into tight spaces and inflated to lift heavy loads safely and gradually.

Available in 32 ton, 40 ton, and 60 ton capacities, Frontier lifting bags can be purchased individually or as part of a complete two-bag package. Complete systems include a double controller, pressure reducer with hose, and colour-coded 10 metre air hoses for two-bag operation.

Designed for professional rescue use, the Frontier lifting bag system is a practical addition to fire departments, technical rescue teams, industrial emergency response crews, and heavy equipment service operations.

Short Description for Odoo / Website Preview

Frontier 10 Bar Lifting Bags provide compact, high-pressure lifting power for fire departments, rescue teams, and industrial emergency response crews. Available in 32 ton, 40 ton, and 60 ton capacities, with complete two-bag packages available.

Specification Table

Important Safety Note

Lifting bags should only be used by trained personnel following proper rescue lifting, stabilization, and cribbing procedures. Loads must be stabilized during lifting, and lifting bags should never be used as the sole means of support. Always follow department procedures and manufacturer instructions when operating high-pressure lifting equipment.

Meta Description

Frontier 10 Bar high-pressure lifting bags for fire departments, rescue teams, and industrial emergency response. Available in 32 ton, 40 ton, and 60 ton capacities with complete two-bag rescue lifting packages.
