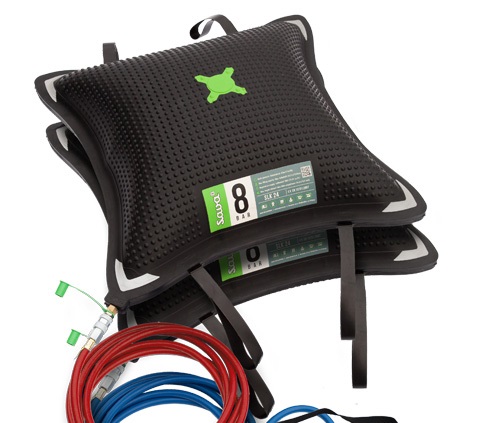

High-pressure lifting bags are used for lifting the heaviest loads.
High-pressure lifting bags exert maximum force in a concentrated area,
making them ideal when lifting rigid structures in tight places. Their
unique structure also allows use in load shifting, heavy truck or
aircraft recovery and different moving situations.
This product is only the air bag. See the connection details below and the related products to complete the set up required
* What is unique about the Savatech Flat bags is that
they start out flat and remain flat even when fully inflated (flat
working surface). With the Savatech lifting bags at full inflation
height, only the sides curl. The bag doesn’t crown as conventional
high-pressure lifting bags do.*
Hook-up/Connection details:
- Connect SCBA bottle to regulator
- Connect high pressure hose to regulator
- Connect other end of high pressure hose to controller
- Connect low pressure hoses between controller and bags
* Also available in other sizes upon request (6", 9", 18", 22", 27", 34", 37")
Technical Data
| Model | Length | Width | Height | Weight | Working Pressure | Air Requirement | Max Lifting Capacity | Max Lifting Height |
| SLK 6 | 30 cm (12") | 30 cm (12") | 2.5 cm (1") | 2 kg (4 lbs) | 8 Bar (116 psi) | 1.5 cu ft | 5.5 tons | 16 cm (6.3") |
| SLK 10 | 38 cm (15") | 38 cm (15") | 2.5 cm (1") | 3.5 kg (8 lbs) | 8 Bar (116 psi) | 3 cu ft | 10.1 tons | 21 cm (8.3") |
| SLK 25 | 61 cm (24") | 61 cm (24") | 2.5 cm (1") | 9 kg (20 lbs) | 8 Bar (116 psi) | 14.7 cu ft | 25.2 tons | 34 cm (13.4") |
| SLK 45 | 78 cm (31") | 78 cm (31") | 2.5 cm (1") | 14 kg (31 lbs) | 8 Bar (116 psi) | 32.5 cu ft | 44.6 tons | 42 cm (16.5") |
| SLK-H 7 | 30 cm (12") | 30 cm (12") | 2.5 cm (1") | 2 kg (4 lbs) | 10 Bar (145 psi) | 1.9 cu ft | 6.8 tons | 16 cm (6.3") |
| SLK-H 12 | 38 cm (15") | 38 cm (15") | 2.5 cm (1") | 3.5 kg (8 lbs) | 10 Bar (145 psi) | 3.8 cu ft | 12.1 tons | 21 cm (8.3") |
| SLK-H 32 | 61 cm (24") | 61 cm (24") | 2.5 cm (1") | 9 kg (20 lbs) | 10 Bar (145 psi) | 18 cu ft | 31.8 tons | 34 cm (13.4") |
| SLK-H 56 | 78 cm (31") | 78 cm (31") | 2.5 cm (1") | 14 kg (31 lbs) | 10 Bar (145 psi) | 39.7 cu ft | 55.8 tons | 42 cm (16.5") |

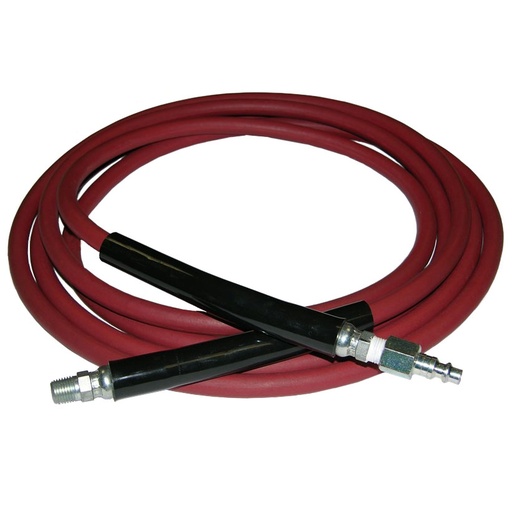

![[541018135] Air Tool Hose 1/4'' (for air gun) (25ft)](https://cdn.wfrfire.com/web/image/product.product/4086/image_512/%5B541018135%5D%20Air%20Tool%20Hose%201-4%27%27%20%20%28for%20air%20gun%29%20%2825ft%29?unique=97a9ca3)

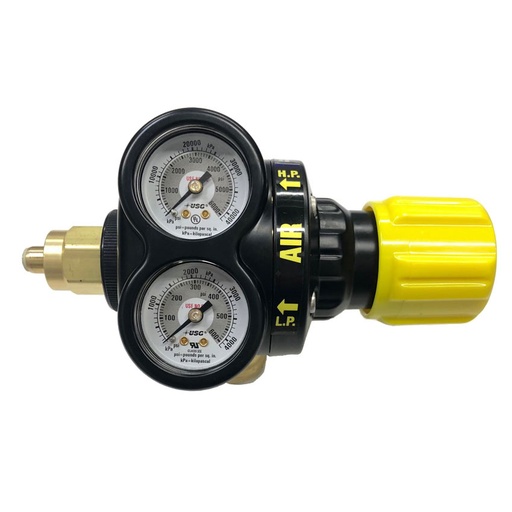

![[710003761] Ajax High Pressure Adjustable Regulator for air lifting bags and air guns](https://cdn.wfrfire.com/web/image/product.product/131/image_512/%5B710003761%5D%20Ajax%20High%20Pressure%20Adjustable%20Regulator%20for%20air%20lifting%20bags%20and%20air%20guns?unique=97a9ca3)

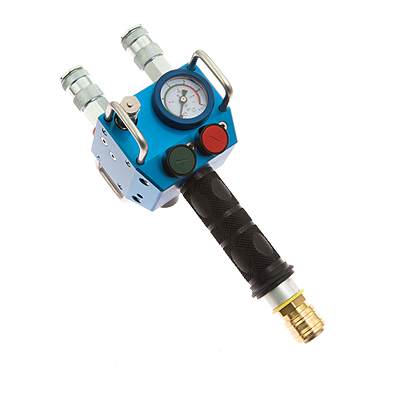

![[710004639] Hand-held Double Deadman Controller - High-Pressure (8 bar (116psi))](https://cdn.wfrfire.com/web/image/product.product/12294/image_512/%5B710004639%5D%20Hand-held%20Double%20Deadman%20Controller%20-%20High-Pressure%20%288%20bar%20%28116psi%29%29?unique=97a9ca3)
