Frontier 868 Fixed 1250gpm Monitor with Hand Wheel

Frontier 868 Fixed 1250gpm Monitor with Hand Wheel

Nozzle not included and is extra

Product Configuration
- 77mm (3") FF Flange inlet x 65mm (2.5") BAT outlet
- 77mm (3") NPT inlet x 65mm (2.5") BAT outlet
- 77mm (3") NPT inlet x 65mm (2.5") NHT outlet

This combination does not exist.

Frontier

Nozzles/Monitors

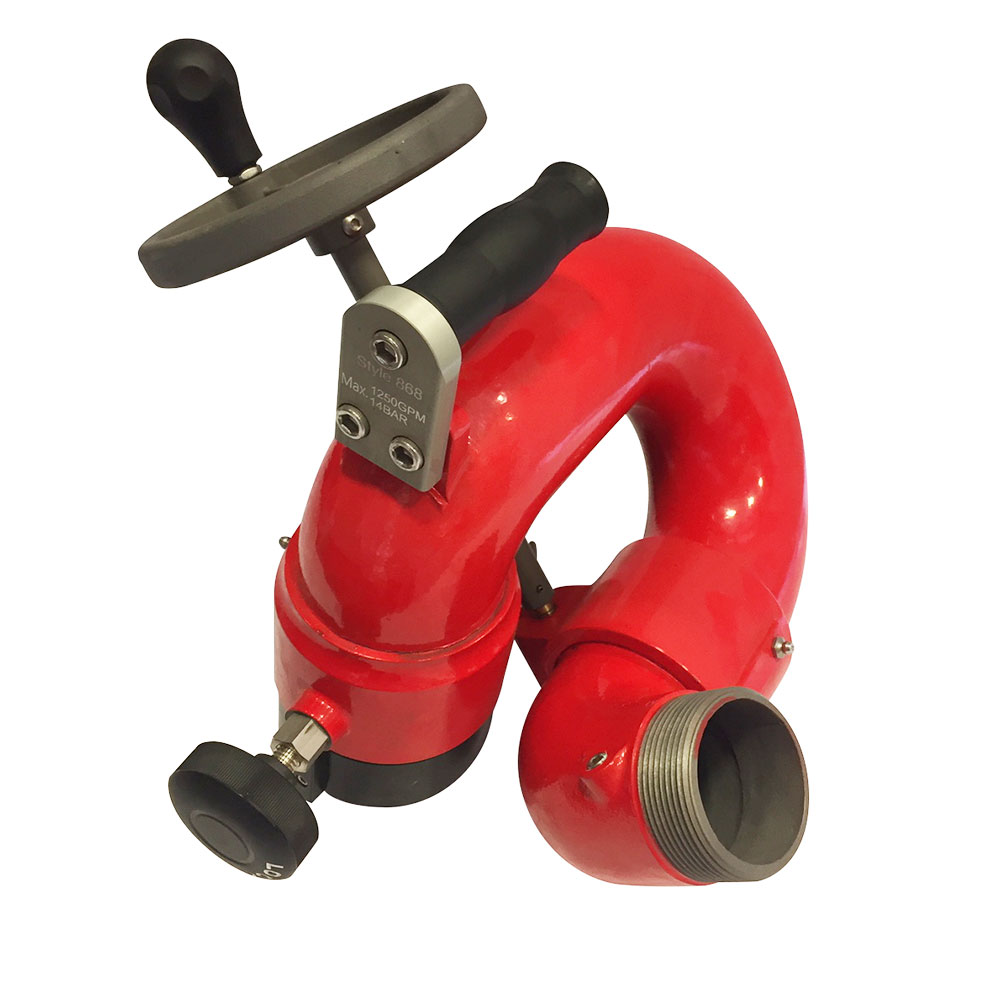

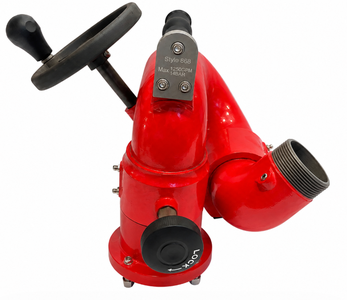

The Frontier 868 Fixed Monitor is a compact, heavy-duty master stream device designed to deliver high flow performance with smooth, reliable control. Rated for flows up to 1,250 GPM (4,800 LPM) at 100 psi, this monitor provides a wide operating range with 360° horizontal rotation and 140° vertical travel, controlled by a single hand-wheel for easy elevation adjustment.
Built with an aluminum alloy body and a durable epoxy-coated exterior, the 868 also features turning vanes in each elbow to reduce friction and improve stream performance. With a 77mm (3") waterway and multiple inlet/outlet configurations available, it’s a versatile option for industrial, municipal, and fixed-mount applications.
Key Features
- Flow up to 1,250 GPM (4,800 LPM) @ 100 psi
- Working pressure: 14 bar
- 360° horizontal travel & 140° vertical travel
- Single hand-wheel elevation control
- Turning vanes in each elbow to reduce friction
- Aluminum alloy body with epoxy-coated exterior
- Compatible with a full range of water and self-educting foam master stream nozzles (sold separately)
- 77mm (3") waterway
Connections (select configuration)
- Inlet: 77mm (3") NPT thread (add flange adapter if required for mounting)
- Outlet: 65mm (2.5") BAT, CSA, WCT or NHT threads
Dimensions / Weight
- 12" x 15" (30 cm x 38 cm)
- 20 lb (9.1 kg)
Note: When using the 3" NPT inlet, the use of Loctite is mandatory.
Add nozzle and/or flange adapter if required.
