- Frontier 868 Fixed 1250gpm Monitor with Hand Wheel

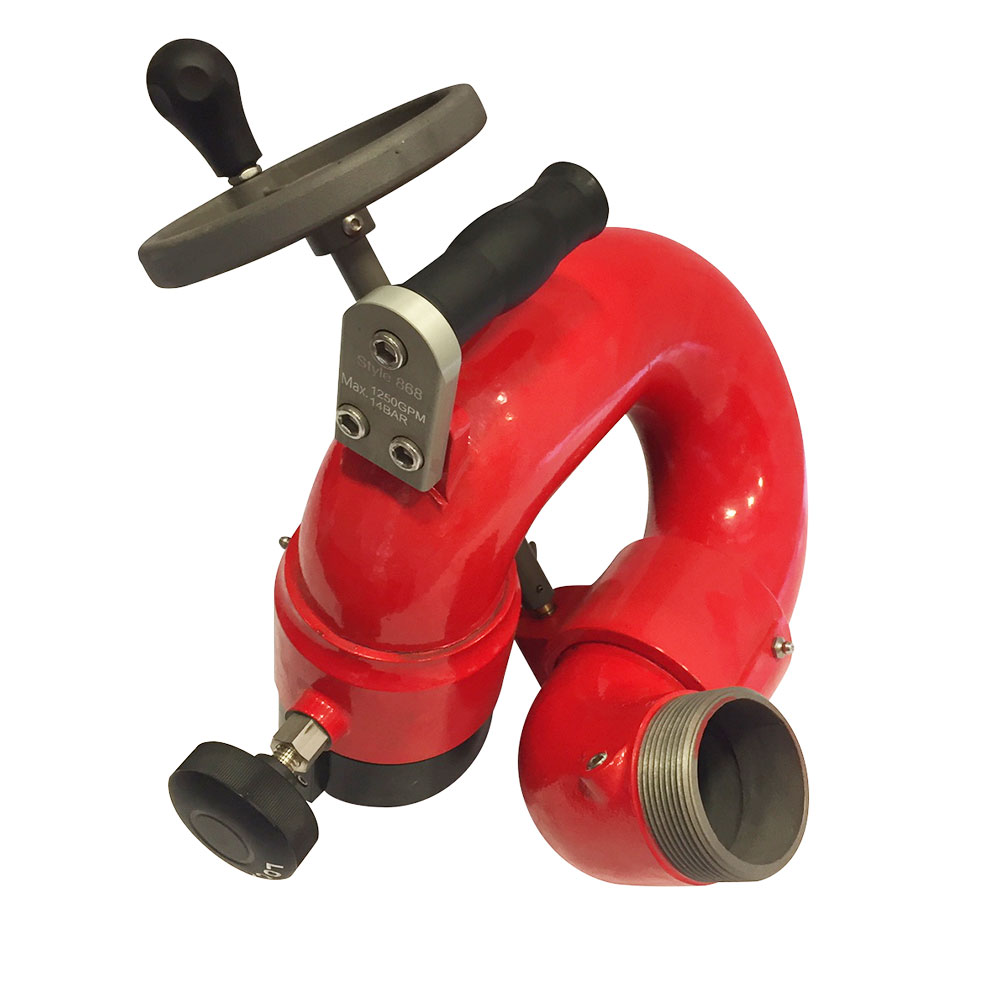

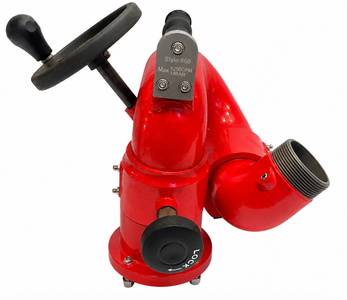

Frontier 868 Fixed 1250gpm Monitor with Hand Wheel
485030205 (PFP-20HPHND-2D) 4" inlet
https://www.wfrfire.com/shop/frontier-868-fixed-1250gpm-monitor-with-hand-wheel-5812
https://www.wfrfire.com/web/image/product.template/5812/image_1920?unique=87815ef
- Flow up to 1,250 GPM (4,800 LPM) @ 100 psi
- Movement range: 360° horizontal travel & 140° vertical travel.
- Flow turning vanes in each elbow to reduce friction.
- Aluminum alloy body.
- Epoxy coating exterior.
- Single Hand-Wheel Control for vertical movement.

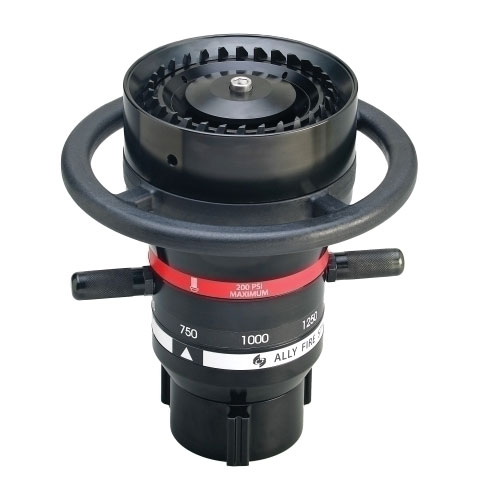

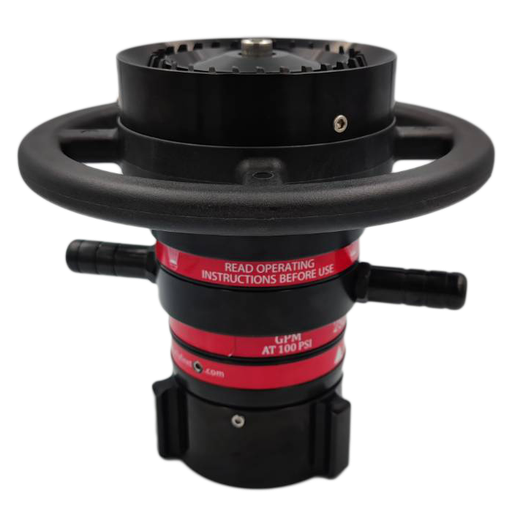

- A comprehensive range of water and self educting foam master nozzles are available for any application.
- Full 77mm (3") waterway.
- Inlet: 77mm (3") NPT thread (add flange adapter if required)
- Discharge Outlet: 65mm (2.5") BAT or NHT threads.
- Dimensions: 12"h x 15"w (30cm x 38cm)
- Weight: 20 lbs (9.1 kg)
- Note: when using the 3" NPT inlet the use of Loctite is mandatory.

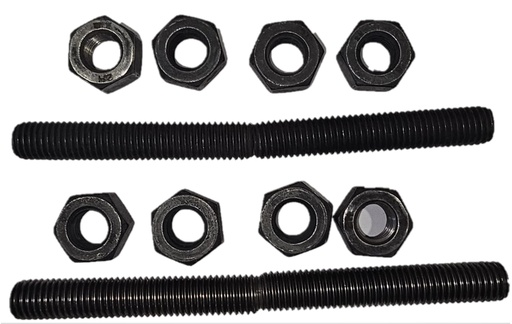

*Add for Nozzle and/or Flange adapter if required*
Specifications for Frontier 868 Fixed 1250gpm Monitor with Hand Wheel
Product Configuration | 77mm (3") NPT inlet x 65mm (2.5") BAT outlet or 77mm (3") NPT inlet x 65mm (2.5") NHT outlet or 77mm (3") FF Flange inlet x 65mm (2.5") BAT outlet |
