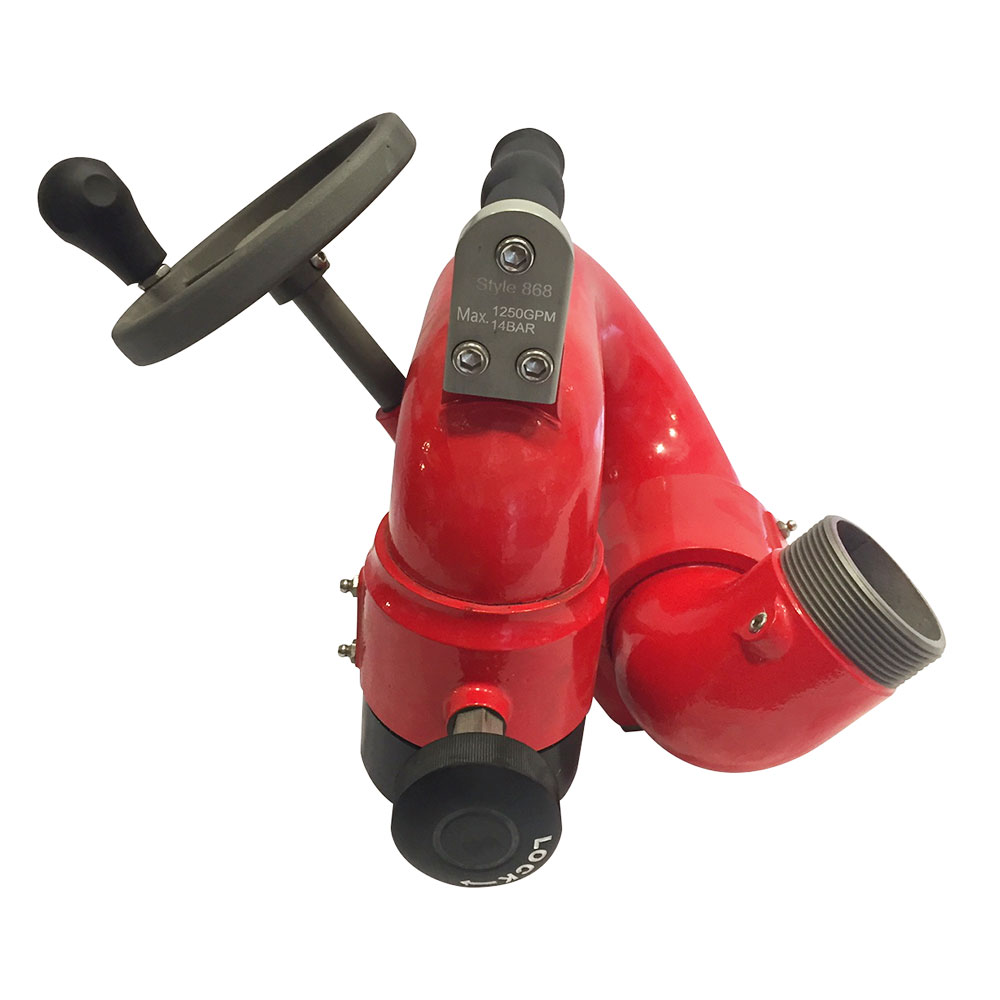

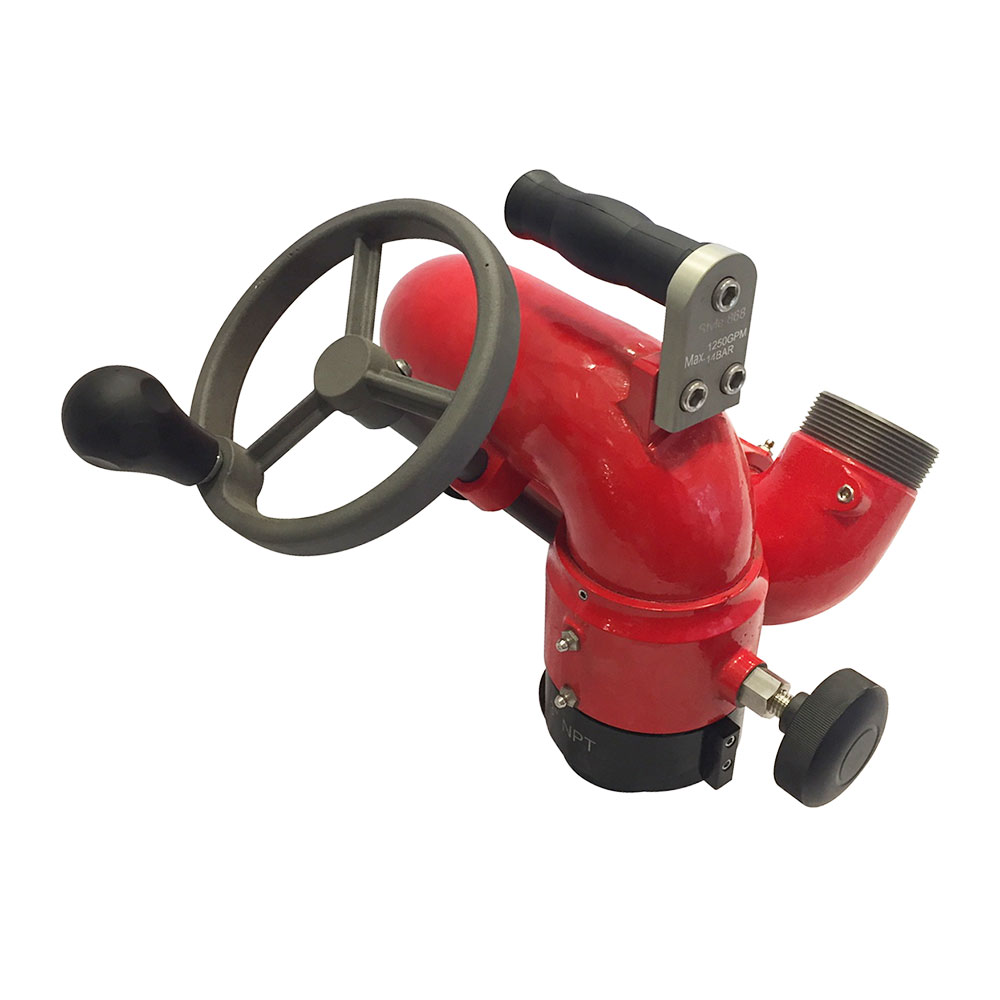

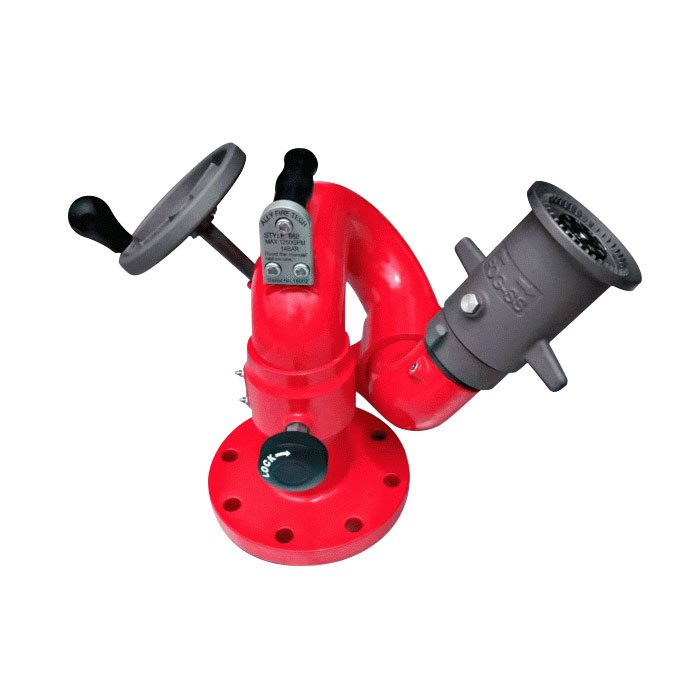

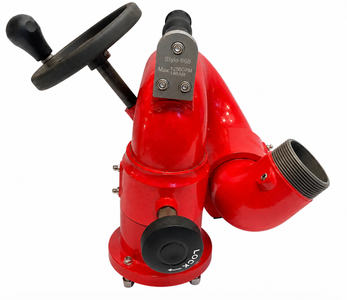

- Flow up to 1,250 GPM (4,800 LPM) @ 100 psi
- Movement range: 360° horizontal travel & 140° vertical travel.
- Flow turning vanes in each elbow to reduce friction.
- Aluminum alloy body.
- Epoxy coating exterior.
- Single Hand-Wheel Control for vertical movement.
- A comprehensive range of water and self educting foam master nozzles are available for any application.
- Full 77mm (3") waterway.

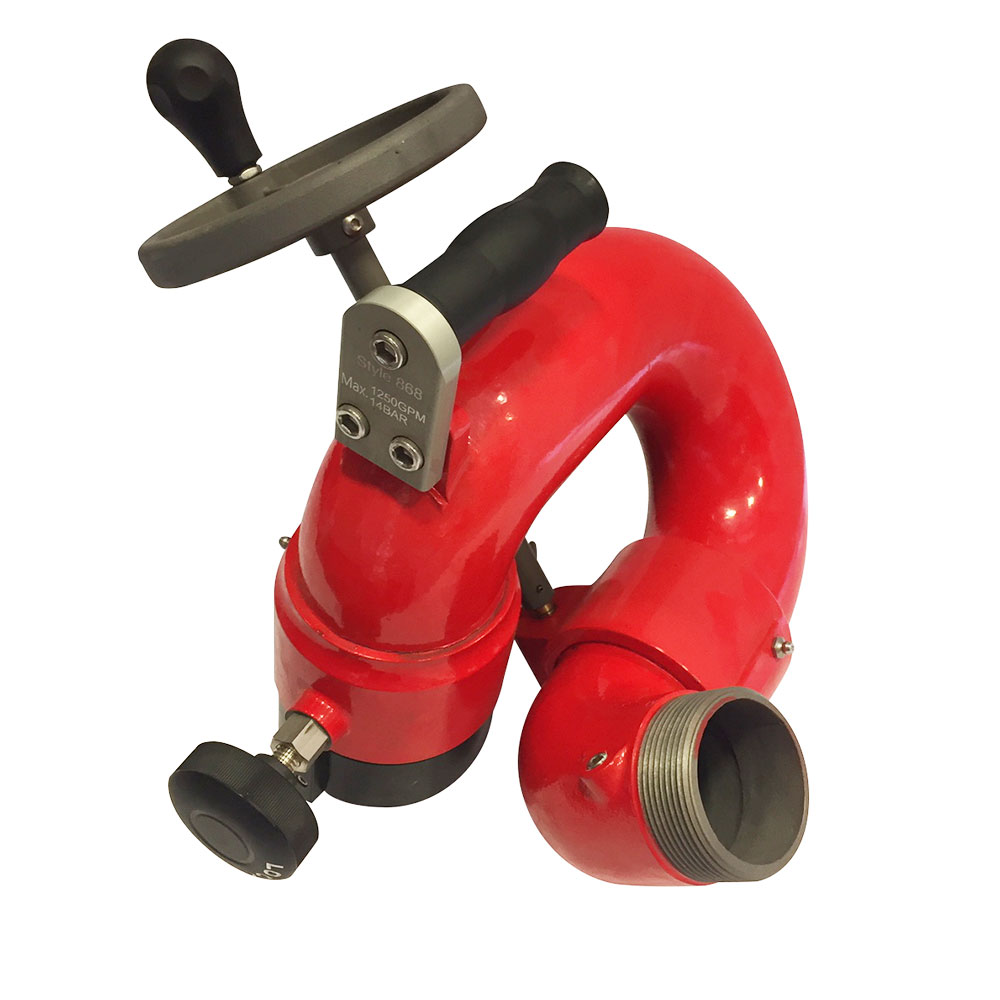

- Inlet: 77mm (3") NPT thread (add flange adapter if required)
- Discharge Outlet: 65mm (2.5") BAT or NHT threads.
- Dimensions: 12"h x 15"w (30cm x 38cm)
- Weight: 20 lbs (9.1 kg)
- Note: when using the 3" NPT inlet the use of Loctite is mandatory.

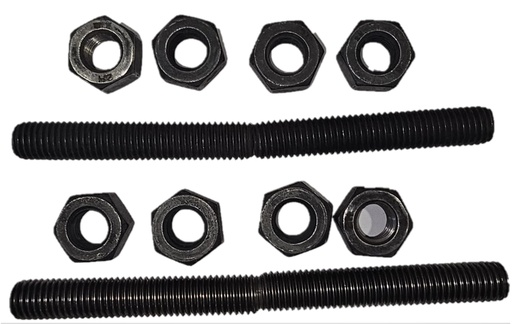

*Add for Nozzle and/or Flange adapter if required*

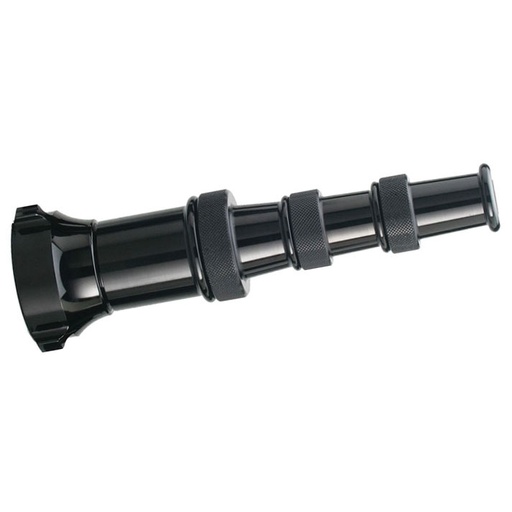

![[590002032] Frontier 4 Stacked Tips Monitor Nozzles (BAT)](/web/image/product.product/3029/image_512/%5B590002032%5D%20Frontier%204%20Stacked%20Tips%20Monitor%20Nozzles%20%28BAT%29?unique=de58485)

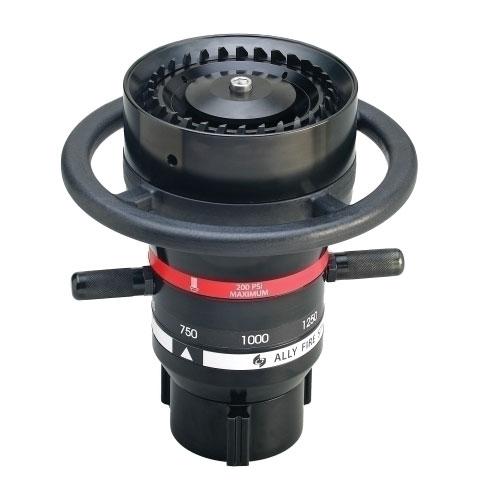

![[590002853] Frontier Master Stream Selectable Monitor Nozzle 65mm (2.5") BAT (500/750/1000/1250 @ 100 psi)](/web/image/product.product/182/image_512/%5B590002853%5D%20Frontier%20Master%20Stream%20Selectable%20Monitor%20Nozzle%2065mm%20%282.5%22%29%20BAT%20%28500-750-1000-1250%20%40%20100%20psi%29?unique=de58485)

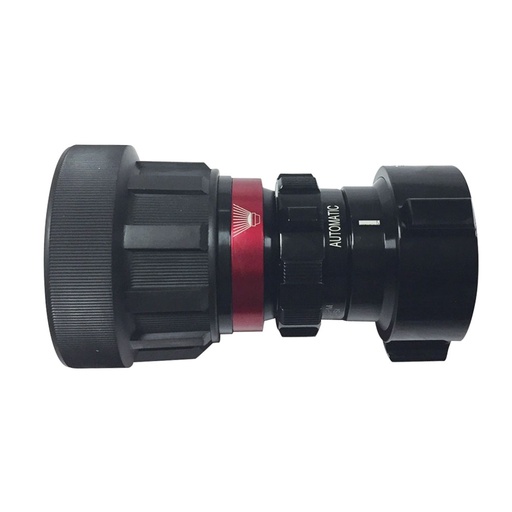

![[710004427] Automatic Flow Monitor Nozzle 50-350gpm@100psi Frontier (BAT)](/web/image/product.product/12698/image_512/%5B710004427%5D%20Automatic%20Flow%20Monitor%20Nozzle%2050-350gpm%40100psi%20Frontier%20%28BAT%29?unique=de58485)

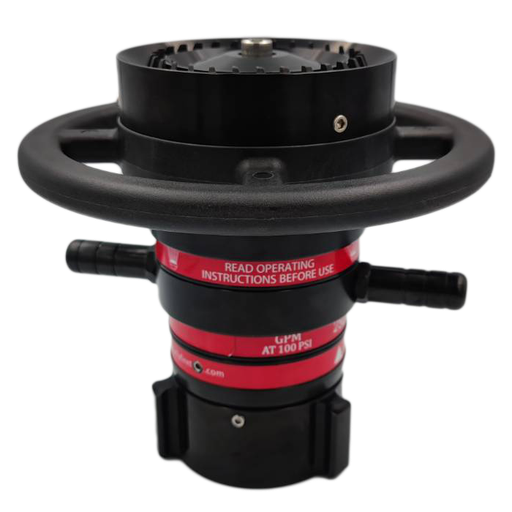

![[710005164] Frontier Selectable Flow Monitor Nozzle - 65mm (2.5") (300/400/500 @ 100 psi, BAT)](/web/image/product.product/12650/image_512/%5B710005164%5D%20Frontier%20Selectable%20Flow%20Monitor%20Nozzle%20-%2065mm%20%282.5%22%29%20%28300-400-500%20%40%20100%20psi%2C%20BAT%29?unique=de58485)
