TFT's In-Line Valve is a multi-purpose valve designed for use with 3.5, 4, 4.5 or 5 inch (89, 100, 115, 125 or 150mm) hose. Maximum operating pressure is 250 psi (17bar). Meets 900psi (62 bar) hydrostatic strength test. The aluminum casting are Hardcoat anodized, and powdercoat finished inside and out for maximum corrosion protection. The valve meets NPFA slow close requirements. Optional adjustable pressure relief valve meets NFPA 1901 (2009 edition). Optional rugged ¾ inch (19mm) air bleed valve quickly bleeds air from the lines or drains water from the valve housing. Contact TFT customer service for configurations not shown.
Specifications
Coupling Size Side A
5" (125mm)
Coupling Size Side B
5" (125mm)
Coupling Swivel Side A
Rigid
Coupling Swivel Side B
Rigid
Finish
Stardust Silver
Gear Box Style
Shaft on Top
L D H Inlet
No
L D H Outlet
No
Material
Lightweight Cast Aluminum Alloy
Operation Energy Source
Manual
Pressure Relief Valve
No
Remote Control
No
Size
LDH
Valve Design
Ball Valve Aluminum
Weight
23.3

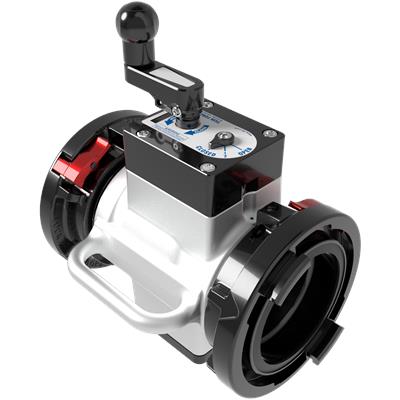

IN-LINE Valve W/O PRV 5"Storz x 5"Storz Hydrant/Inline
