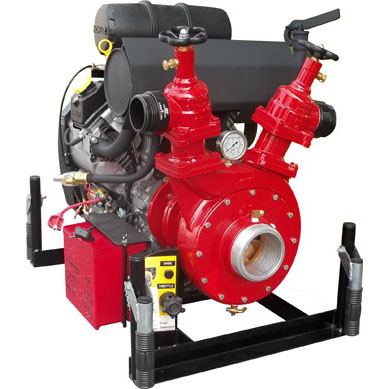

This high pressure/high volume pump is made to fight fire or supply
water to the fire scene. Engine and pump are mounted on a chassis made
of profile steel with shock absorbers and heavy duty carrying handles
Also available in skid version
ENGINE SPECIFICATIONS
- CH1000 Kohler air cooled engine
- 2-cylinder, 4-stroke gasoline engine
- 12V electric start
- 6 gallon (22 L) detachable fuel tank
CONTROL PANEL
- Engine start/stop button
-
Throttle control lever
- Choke control lever
- Oil control lamp
- Operating panel light
- Pressure gauge
- Vacuum pressure gauge
PUMP UNIT SPECIFICATIONS
- C.E.T. single stage centrifugal pump
- Pump body made from high resistant aluminum alloy
- Bronze impeller with Mechanical shaft seal
- Stainless steel pump shaft
- Exhaust priming system, guaranteed up to 20’(6 meter lift)
- Two 2.5" (65 mm) delivery outlet with pressure valve – specify thread
- One 4" (100 mm) suction inlet – specify thread
- Dimensions: Length: 37” (940 mm)
Width: 26” (660 mm); Height: 31” (787 mm)
- Weight: 275 lbs. (125 Kg)
PERFORMANCE
MAX FLOW : 675 GPM
MAX PRESSURE : 190 PSI
465 GPM @ 25 PSI
380 GPM @ 50 PSI
225 GPM @ 100 PSI
120 GPM @ 150 PSI
LIMITED WARRANTY
3 YEARS
