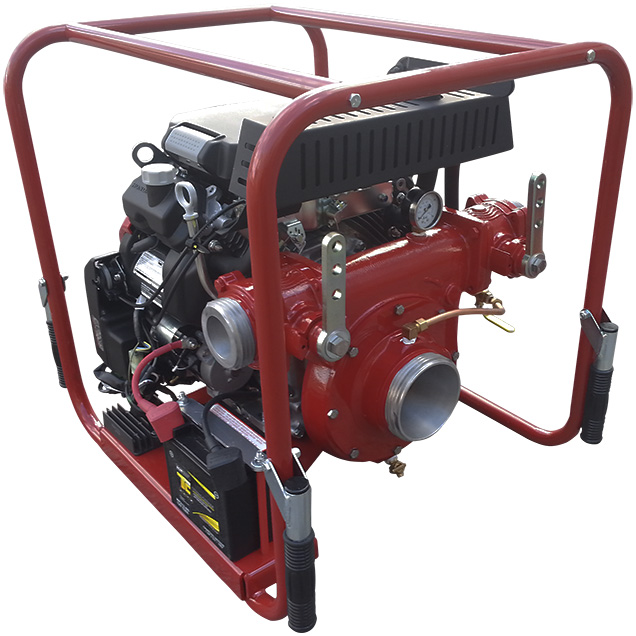

This pump is the ideal tool to fill your fire truck, supply your pump
truck or carry water over a long distance. The engine and pump are
mounted on a steel protective frame with folding handle.
Also available in skid version
ENGINE SPECIFICATIONS
- GX630 Honda air cooled engine
- V-Twin cylinder, 4-stroke gasoline engine
- Electric start
- 6 gallon (22 l) detachable fuel tank
INCLUDED ACCESSORIES
- 36 watts alternator
- Pressure gauge
- Low oil alert
- 12-V battery
PUMP UNIT SPECIFICATIONS
- C.E.T. single stage centrifugal pump
- Pump body made from high resistance aluminum alloy
- Bronze impeller with Mechanical shaft seal
- Exhaust priming system, guaranteed up to 20’ (6 meter) lift
- Two 2.5” (65 mm) delivery outlet with 1/4-turn ball valve (specify threads)
- One 4” (100 mm) suction inlet (specify inlet thread)
- Dimensions: Length: 21.25” (540 mm). Width: 26.5” (673 mm); Height: 24” (610 mm)
- Weight: 198 lbs. (90 kg)
PERFORMANCE
MAX FLOW : 630 GPM, MAX PRESSURE : 105 PSI
410 GPM @ 25 PSI
300 GPM @ 50 PSI
100 GPM @ 100 PSI
LIMITED WARRANTY
3 YEARS
