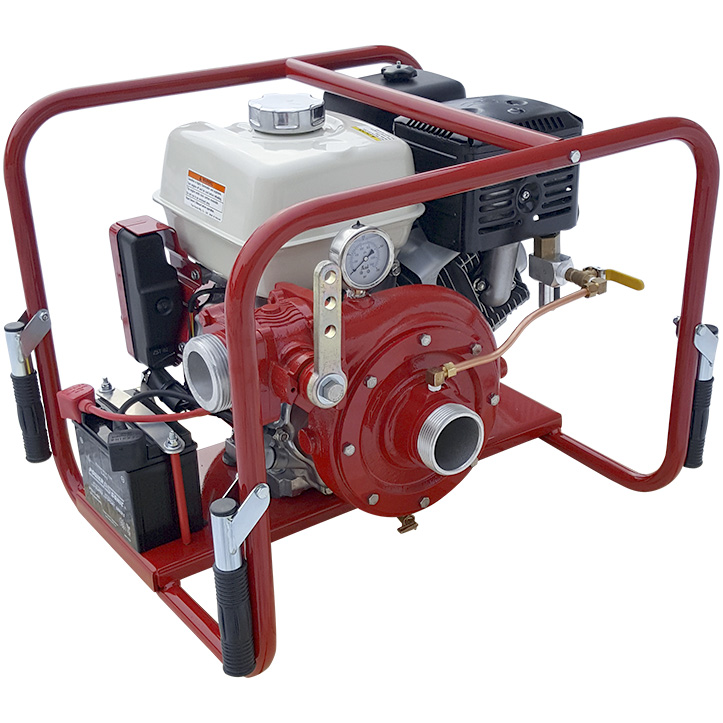

This light weight Honda powered pump is the most powerful on the
market in its category. You get the highest volume in its range. Engine
and pump are mounted on a protective frame made of steel with shock
absorbers and folding handles
Also available in skid version
ENGINE SPECIFICATIONS
- Honda, model GX340, air cooled engine
- Single cylinder, 4-stroke gasoline engine
- 12V electric start with recoil start as backup
- 1.6 gallon (6.1 l) integrated fuel tank
- Charge coil 12V-3A
INCLUDED ACCESSORIES
- Pressure gauge
- Low oil alert
- 12-V battery
PUMP UNIT SPECIFICATIONS
- Direct drive C.E.T. single stage centrifugal pump
- Pump body made from resistant aluminum alloy
- Bronze impeller with Mechanical shaft seal
- Exhaust priming system, guaranteed up to 20’ (6 meter) lift.
- One 2.5” (65 mm) delivery outlet with 1 ⁄4-turn ball valve
- BAT, WCT, NHT, NPSH, CSA
- One 2.5” (65 mm) suction inlet
- BAT, WCT, NHT, NPSH, CSA
- Dimensions: Length: 22" (560 mm); Width: 27.25" (690 mm); Height: 20.25" (515 mm)
- Weight: 125 lbs. (57 kg)
PERFORMANCE
225 GPM @ 25 PSI, 180 GPM @ 50 PSI, 135 GPM @ 75 PSI, 100 GPM @ 100 PSI
LIMITED WARRANTY
3 YEARS
