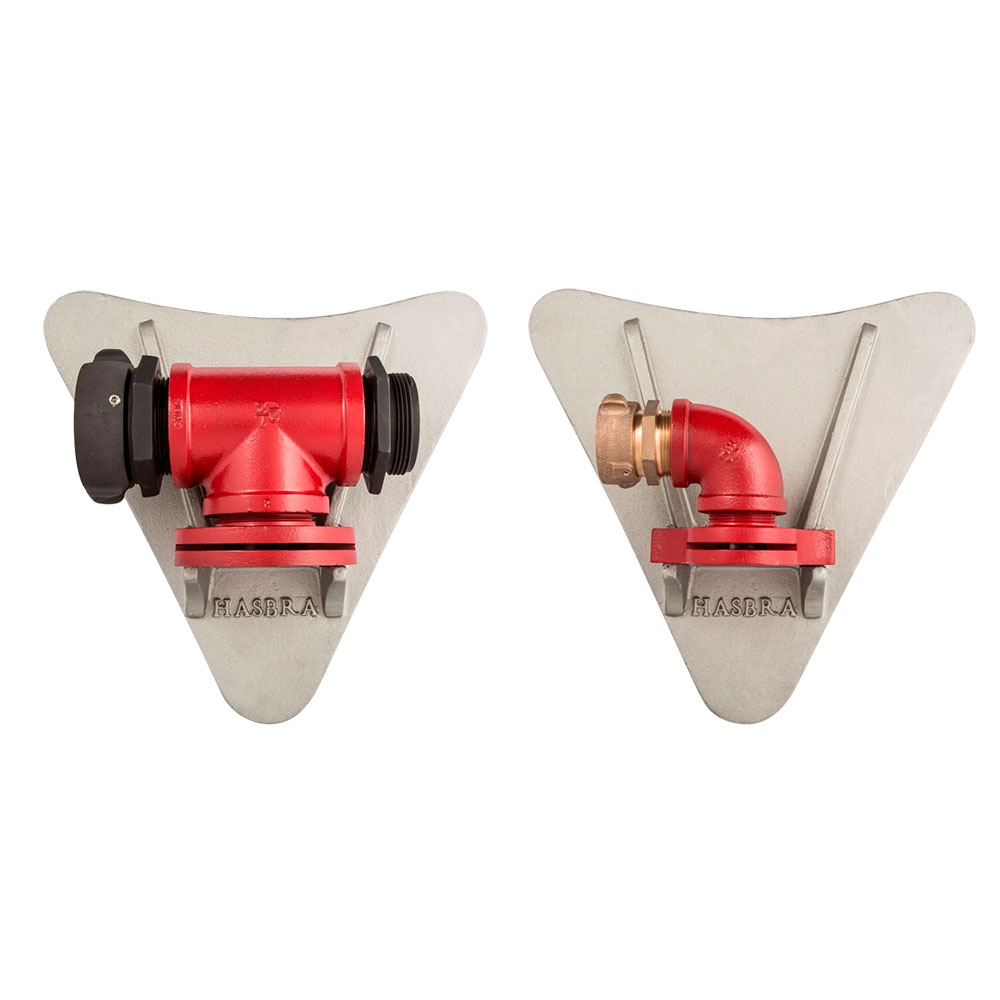

WFR Water Curtain/Wall Nozzle
Water curtains are designed to produce a fan-like curtain to protect buildings apparatus and property from radiant heat experienced in large fires. These can be used to flush flammable liquids from streets or highways as well.
1.5" (38mm) water curtain flowing 100gpm@100 psi or 2.5" (65mm) water curtain flowing 200gpm@100 psi
35ft (10.6m) wide and 12ft high protective stream or 40ft (12m) wide & 25ft (7.6m) high protective stream
Lightweight anodized aluminum body and base
Available with single 38mm only or 38mm female inlet with male outlet
Note: cap is not included on the inlet/outlet model which is designed for multiple nozzle to be positioned along a long area needing protection.
Available options upon request:
All other threads
Caps and plugs
Specifications for WFR Water Curtain/Wall Nozzle
Configuration | Single Inlet 38mm (1.5") NPSH or Single Inlet 65mm (2.5") BAT or Inlet/Outlet 38mm (1.5") NPSH or Inlet/Outlet 65mm (2.5") BAT |
