WFR Water Curtain/Wall Nozzle

https://www.wfrfire.com/web/image/product.template/2420/image_1920?unique=844429d
  • Nozzle Configuration

This combination does not exist.

Hand Tools

Water curtains are designed to produce a fan-like curtain to protect buildings apparatus and property from radiant heat experienced in large fires. These can be used to flush flammable liquids from streets or highways as well.

  • 1.5" (38mm) water curtain flowing 100gpm@100 psi or 2.5" (65mm) water curtain flowing 200gpm@100 psi

  • 35ft (10.6m) wide and 12ft high protective stream or 40ft (12m) wide & 25ft (7.6m) high protective stream

  • Lightweight anodized aluminum body and  base

  • Available with single 38mm only or 38mm female inlet with male outlet

Note: cap is not included on the inlet/outlet model which is designed for multiple nozzle to be positioned along a long area needing protection.

Available options upon request:

  • All other threads

  • Caps and plugs

Specifications for WFR Water Curtain/Wall Nozzle

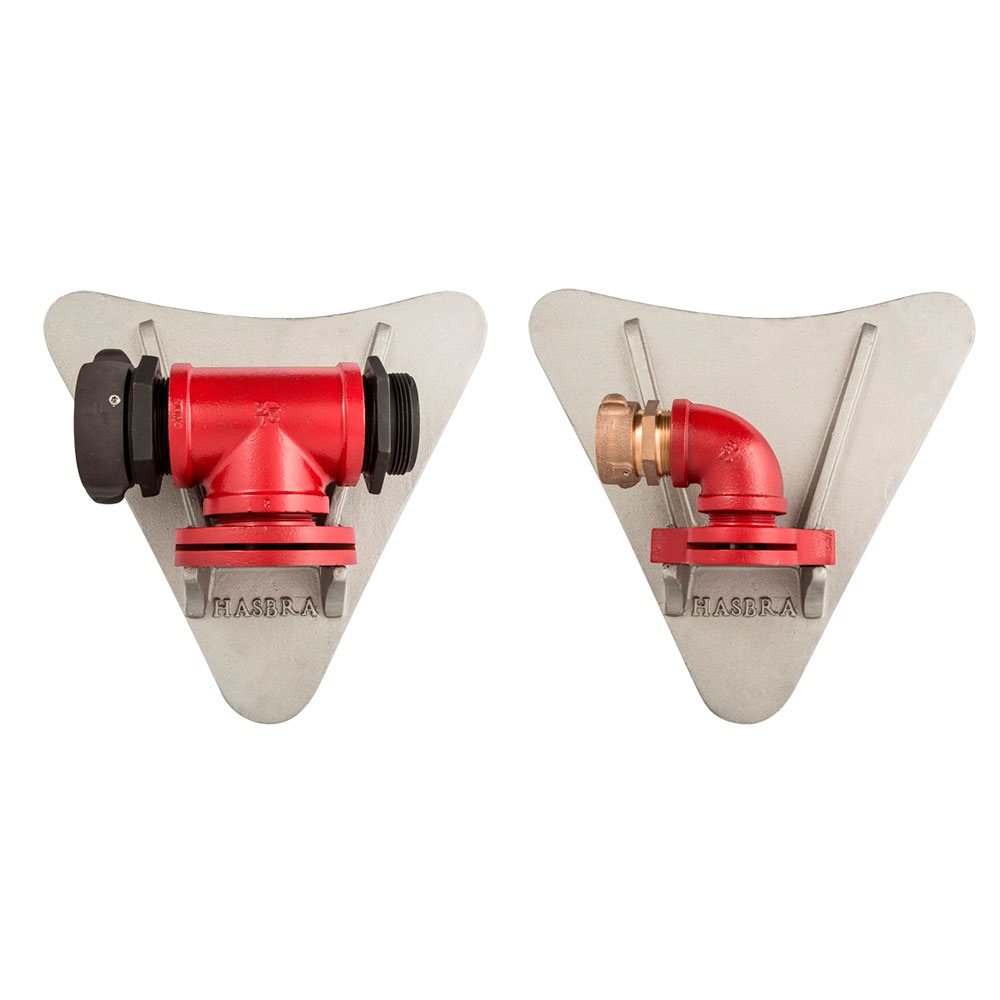

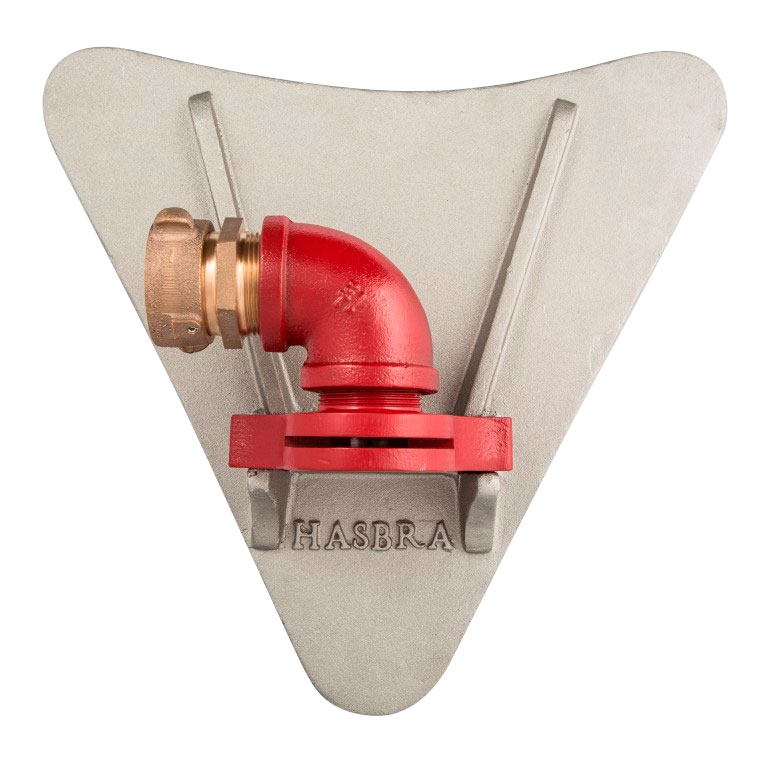

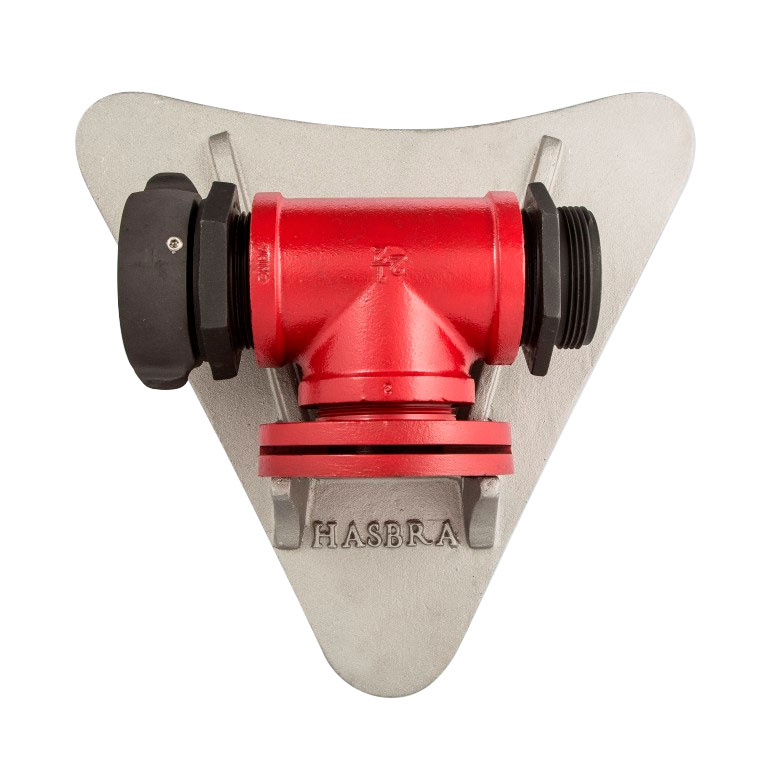

ConfigurationSingle Inlet 38mm (1.5") NPSH or Single Inlet 65mm (2.5") BAT or Inlet/Outlet 38mm (1.5") NPSH or Inlet/Outlet 65mm (2.5") BAT
