WFR-500 Fixed Monitor 350gpm

https://www.wfrfire.com/web/image/product.template/5888/image_1920?unique=5d920d9

  • Inlet Type

This combination does not exist.

Nozzles/Monitors

The balanced flow single waterway design and precision machining on swivel joints reduces friction loss while improving stream and distance, and ensures ease of operation at all pressure/ flow ranges.

Carbon Steel construction with 304 stainless steel swivels. Standard red polyester powder coating inside and out protect against corrosion.

Type 304 stainless steel ball bearings in joints ensure easy movement and reliable operation.

Regularly Furnished:

  • 1-1/2” Waterway
  • Seamless carbon or stainless steel construction
  • Zerk fitting for lubrication
  • Low friction loss
  • 360° horizontal and 120° vertical travel
  • 125-350 GPM (473-1325 lpm)

Specifications

  • Waterway:  1.5"
  • Inlet:  1.5" ASA Flange , 1.5" Female NPT , 1.5" Male NPT
  • Outlet:  1.5" Male
  • GPM:  125 thru 350
  • Handle Type:  Downward Tiller Bar
  • Weight (Lbs.):  45
  • Height:  23.875" , 23.625"
  • Width:  12.25" , 11" , 11.5"
  • Rotating Radius:  18"
  • Horizontal Travel:  360°
  • Vertical Travel:  120°
  • Material:  Carbon Steel

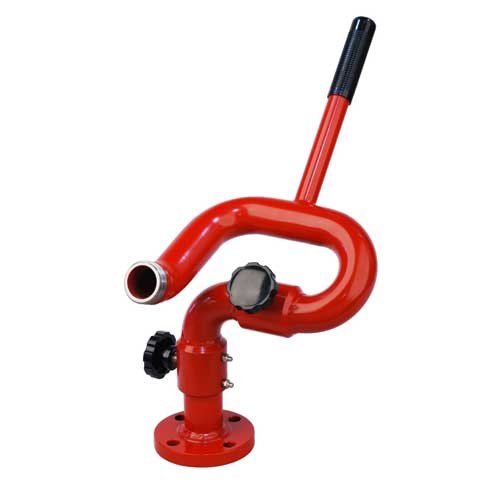

Product Image
WFR-500 Fixed Monitor 350gpm
