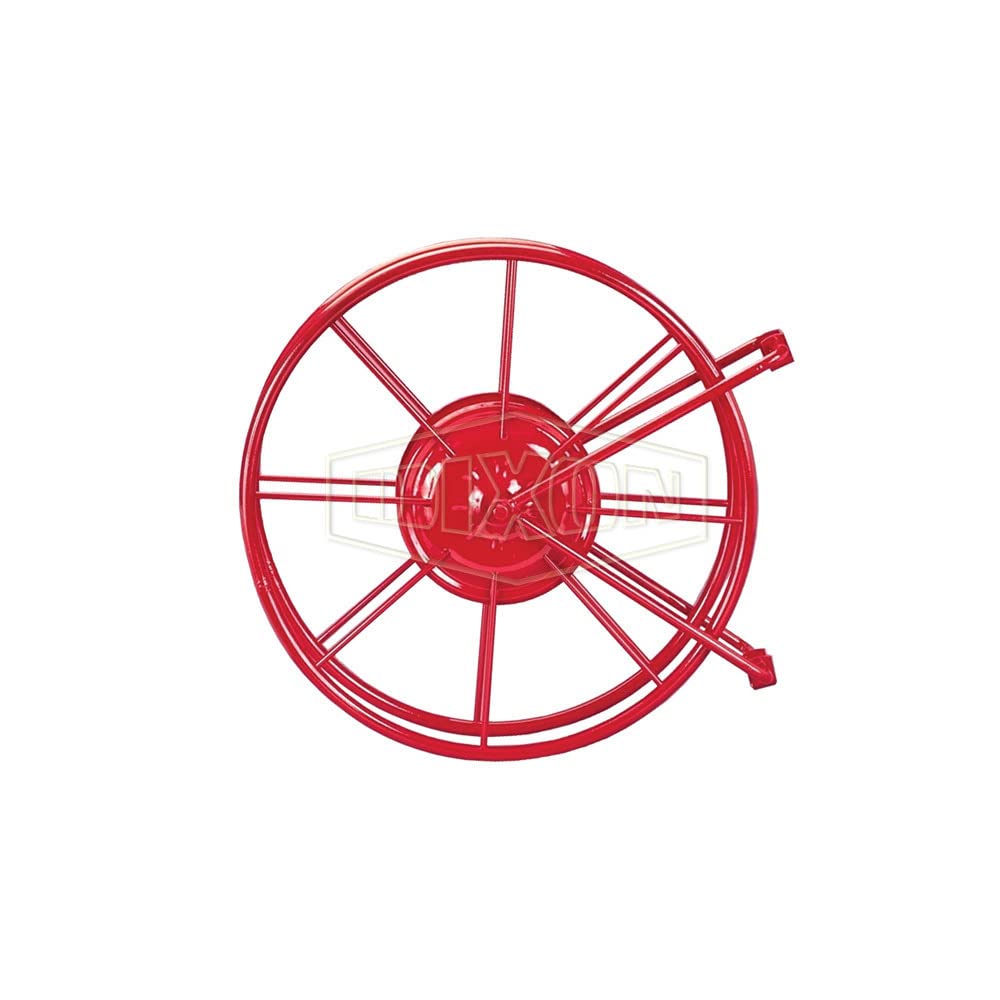

FHR-V5 Swing Type Hose Reel
Attributes
Weight
21.65 lb
Optional Package/Box Quantity
1
Material
Steel
Capacity
Rack hose: 300' of 1-1/2" hose & 150' of 2 - 2-1/2" Hose
Single jacket: 200' of 1-1/2" Hose & 100' of 2 - 2-1/2" Hose
Double jacket: 150' of 1-1/2" Hose & 75' 2 - 2-1/2" Hose
Hose Size
1-1/2" or 2" - 2-1/2"
Details
Applications
Drum storage of collapsible hose avoids damaging kinks, for longer hose life
Available Options
Replacement brackets (1212-0930-4) are available in sets of 2
Construction
Steel
Red polyester powder coat finish
Wall mounting is standard; comes with 2 wall mounting brackets
Features
Pivot mounting permits reel to swing to the proper angle preventing twists and kinks
Open sides allow faster hose drying, to prevent mold and mildew
Note
Style V5 (when used with 1-1/2" hose only) , has a space between the reel sides to accommodate two widths of hose side by side, for maximum capacity in minimum space.
Hose not included
