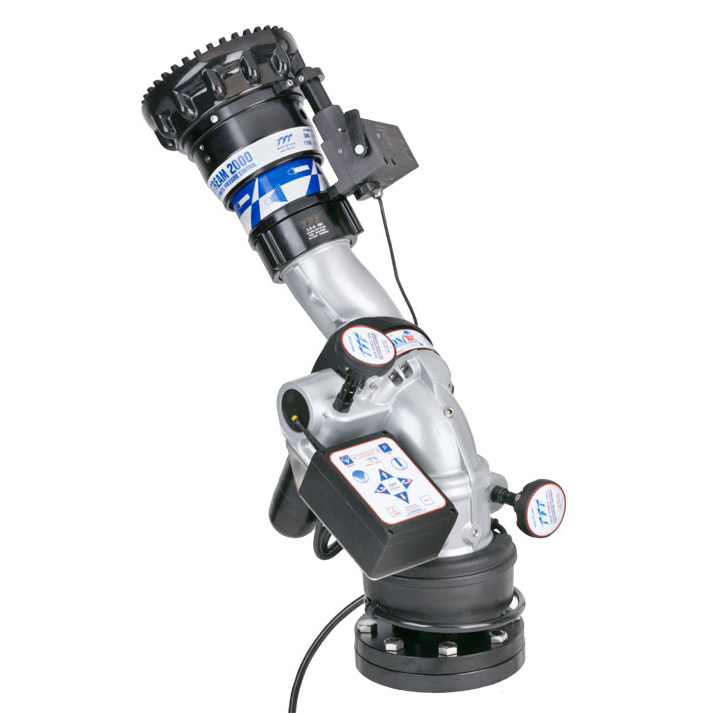

The
Monsoon RC for pumper installations is an electric remote controlled
monitor that has all the benefits of the Monsoon Monitor with the
addition of powered operation. It has a greater horizontal sweep angle
than the RC model for Ladder or Platform installations. Designed for 12
VDC or 24 VDC operation, selection is automatic. The Monsoon RC comes
with a factory installed control panel mounted on the monitor for
controlling horizontal rotation, elevation, nozzle pattern, and
programmable PARK an Oscillate. The motor control circuits are factory
installed on the monitor and use position encoders and current limiting
to protect the drive train at the ends of travel. Unit comes with 30
feet of ultra-flexing robotics cable already wired to the monitor so
installation effort is minimized. Cable has only four conductors (two
for power and two for communications) further easing installation
effort. Cable is enclosed in a unique wire guide that allows 450 degrees
of horizontal travel (225 degrees either side of a center position)
which is far more reliable than slip rings or coil cords. Knobs for
manual override are provided on the horizontal rotation and elevation
drive. TFT's Master ERP Nozzle plugs into the factory installed nozzle
power wire.
* Our Standard configuration is 77mm (3") NPT inlet with 65mm (2.5") NHT discharge. Other options are available upon request
Standard 3.5" (65mm) outlet
Electric drives and control box are waterproof
Main waterway made from hardcoat anodized ANSI 356-T6 aluminum
Silver powder coat finish inside and out
17.3"l x 13.75"w x 16.7"h (44cm x 35cm x 42.5mm)
Weighs 37lbs. (16.8kg)
Note: Nozzle and controllers are not included with monitor.
