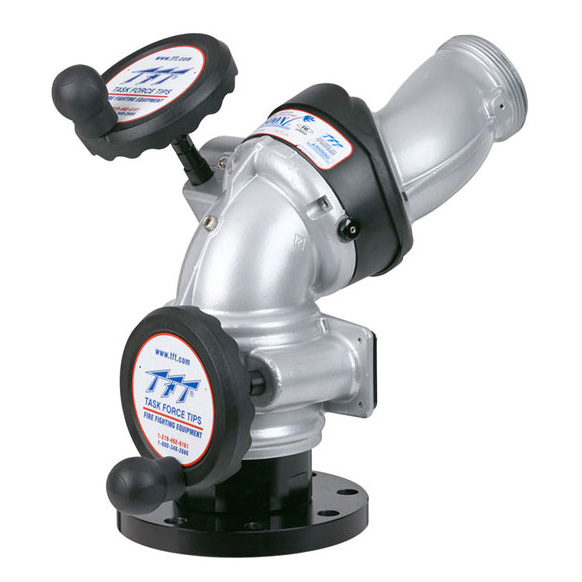

he Monsoon Monitor is a manually operated monitor designed for flows up to 2,000 gpm (7,600 lpm). Maximum operating pressure is 200 psi (14 bar). Unique patent pending segmented waterway has only 15 psi (1 bar) friction loss at 2,000 gpm. Water makes very few turns as it travels though the monitor resulting in low friction loss and a far reaching effective stream. Elevation range is 90 degrees above horizontal to 45 degrees below. Field changeable elevation travel stops at 45 degrees above, 30 degrees above, and 30 degrees below horizontal. The manual model has continuous horizontal rotation with field changeable stops at 45, 90, and 135 degrees either side of a center position. Available with various inlet flanges and thread fittings. Inlet also made for direct connection to TFT's electric Extend-A-Gun RC3 or RC4. Main waterway made from hardcoat anodized ANSI 356-T6 aluminum. Silver powder coat finish inside and out. Standard outlet is 3.5" (90mm) rigid male thread. Other outlets are available. FM approved.
Specifications for TFT Monsoon 2000gpm Manual Monitor
|Configuration||4" (8 bolt) flange inlet w/ 3.5" NHT outlet or 4" Female NPT inlet w/ 3.5" NHT outlet|
