The
LDH Gated Wye is a lightweight, low friction-loss valve that can be
used in many water distribution applications. Dual robust valve
mechanisms from the TFT Ball Intake Valve are streamlined to a large
waterway for the ultimate in versatility. Valve seats are field
replaceable, devices include a 300 PSI pressure gauge and quarter turn
air vent and drain valve. Two robust carrying handles make for easy
deployment. A polymer bearing ring prevents galvanic corrosion on LDH
couplings.
Rugged lightweight aluminum alloy casting with durable powder coat finish inside and out
Anodized couplings
A pressure gauge is mounted on top of the wye
Weight 37.1 lbs
Available upon request:
Pressure relief valve
Thread Type
100mm (4") Storz x Two (2) 100mm (4") Storz or
125mm (5") Storz x Two (2) 100mm (4") Storz or
125mm (5") Storz x Two (2) 125mm (5") Storz or
150mm (6") Storz x Two (2) 150mm (6") Storz
Product Style
Swivel

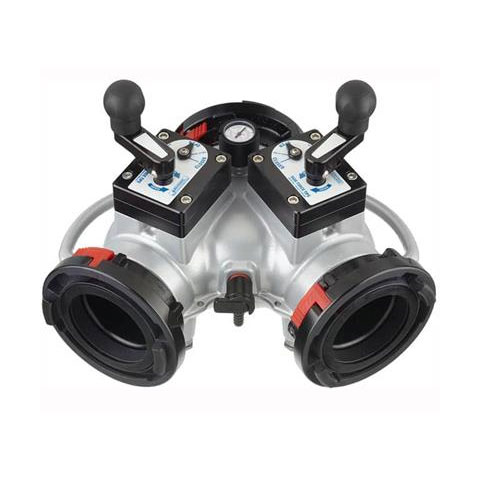

TFT LDH Gated Wye
