Storz Gated Wye

Product Style
- Swivel
Thread Type
- 100mm (4") Storz x Two (2) 100mm (4") Storz
- 125mm (5") Storz x Two (2) 100mm (4") Storz
- 125mm (5") Storz x Two (2) 125mm (5") Storz
- 150mm (6") Storz x Two (2) 150mm (6") Storz

This combination does not exist.

Hardware

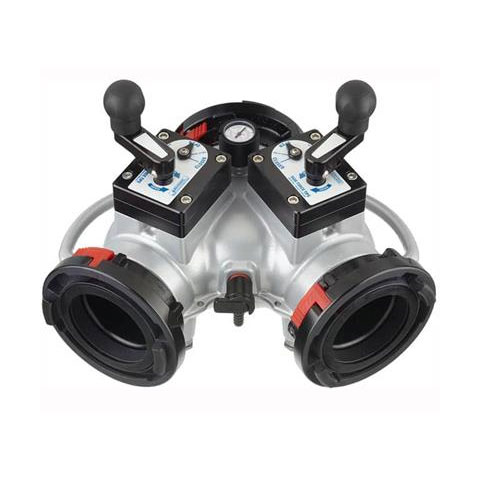

The LDH Gated Wye is a lightweight, low friction-loss valve that can be used in many water distribution applications. Dual robust valve mechanisms from the TFT Ball Intake Valve are streamlined to a large waterway for the ultimate in versatility. Valve seats are field replaceable, devices include a 300 PSI pressure gauge and quarter turn air vent and drain valve. Two robust carrying handles make for easy deployment. A polymer bearing ring prevents galvanic corrosion on LDH couplings.

Rugged lightweight aluminum alloy casting with durable powder coat finish inside and out
Anodized couplings
A pressure gauge is mounted on top of the wye
Weight 37.1 lbs

Available upon request:

Pressure relief valve

Thread Type	100mm (4") Storz x Two (2) 100mm (4") Storz or 125mm (5") Storz x Two (2) 100mm (4") Storz or 125mm (5") Storz x Two (2) 125mm (5") Storz or 150mm (6") Storz x Two (2) 150mm (6") Storz
Product Style	Swivel

Storz Gated Wye

CND 5,157.42 5157.42 CAD CND 5,157.42

CND 0.00
