Dimensions:
With PRV:
- 14.7"Hx13.8"Wx11.3"D
With No PRV:
- 16.6"Hx13.4"Wx11.3"D
Features:
- 10 Year Warranty
- High Flow 5.25" Waterway
- Left or Right Crank Location
- Top or Front Hand Crank Location
- With or Without Easily Adjustable Pressure Relief Valve
- Air Bleeder / Self Draining

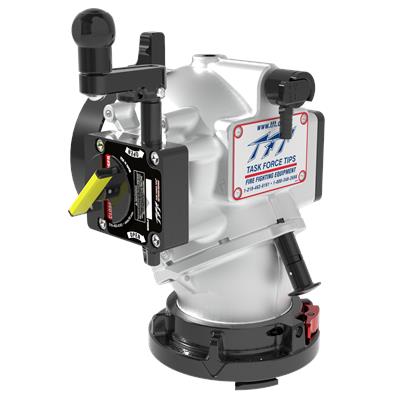

AX Series - TFT’s Jumbo Ball Intake valve has a huge 5.25” (133 mm) diameter waterway giving low friction loss to maximize flow. Friction loss is 3 psi at 2000 gpm (0.2 bar at 7570 l/min). Designed for use with 3.5, 4, 4.5, 5 or 6” (89, 102, 114, 127, or 152 mm) hose. The 30° intake elbow swivels 360° and has multiple positive detents. Make hose connections in any direction with minimal kinks and coupling stress. Designed for pressure or vacuum service. Maximum operating pressure is 250 psi (17 bar). Meets 900 psi (62 bar) hydrostatic strength test. The aluminum castings are hardcoat anodized, and TFT-powder coat finished inside and out for maximum corrosion protection. All the components on the wet side of the valve are made of hardcoat anodized aluminum alloy with corrosion resistant coating for additional corrosion protection. The handwheel or hand crank needs 7-½ turns to close, meeting NFPA slow close requirements. There is a unique position indicator that shows the operator if the valve is open, closed or somewhere in between. The unit comes equipped with a rugged 3/4” (19 mm) drain valve to quickly drain water from the valve housing. A port for an optional air bleed valve is incorporated into the design for user friendly configurability. Hose coupling and truck connections are attached to the valve using polymer bearing rings which provide electrical isolation to help prevent galvanic corrosion. Includes TFT’s adjustable pressure relief valve with a discharge that can be directed one of four ways and meets NFPA 1901. Contact TFT customer service for special industrial configurations not shown. Pressure Loss Chart is located at the end of catalog. The Jumbo Intake Valve series includes a 10-year warranty against manufacturing defects and corrosion that affects the valves's operational performance

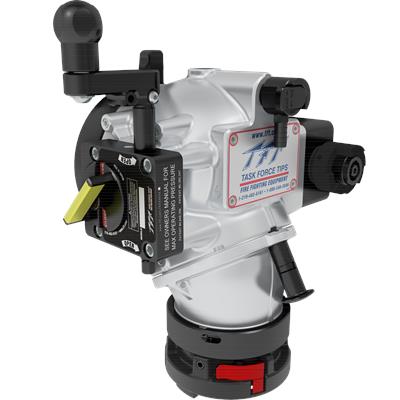

AXD Series – TFT’s Jumbo Low Profile Ball intake valve has a huge 5.25” (133 mm) diameter waterway giving low friction loss to maximize flow. Designed for use with 3.5, 4, 4.5, 5 or 6” (89, 102, 114, 124, or 152 mm) hose. The 30° intake elbow swivels 360°, has multiple positive detents. Make hose connections in any direction with minimal kinks and coupling stress. The valve is designed for pressure or vacuum service. Maximum operating pressure is 250 psi (17 bar). Meets 900 psi (62 bar) hydrostatic strength test. Seven and a half turns of the hand crank to close the valve meets NFPA slow close requirements. A reflective position indicator clearly shows the operator the valve’s position. The handcrank can be specified to operate in the front or the top of the valve to maximize clearance. A rugged ¼-turn Air Vent at the top of the valve allows air to be bled quickly. TFT’s adjustable Pressure Relief Valve (PRV) is installed with the discharge pointing downward and meets NFPA 1901. All wetted components are aluminum alloys to prevent galvanic corrosion, and are specially coated for additional corrosion protection. Hose coupling and truck connections are attached to the valve using polymer bearing rings which can provide electrical isolation to help prevent galvanic corrosion. The Jumbo Low Profile Ball Intake Valve is covered by a 10 year warranty. Contact TFT customer service for configurations not shown. Friction loss is 5 psi at 2000 gpm (0.3 bar at 7570 l/ min); Pressure Loss Chart is located at the end of catalog
