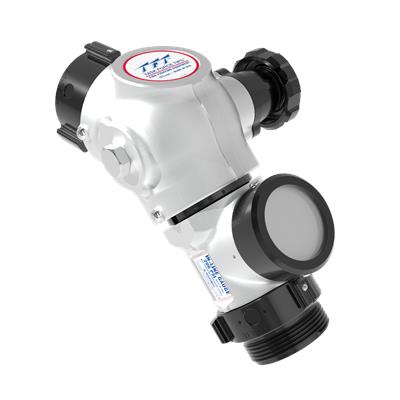

TFT’s 45-degree standpipe waterway with
a right-handle slow close valve, has a full 2.5” (64 mm) waterway for maximum
flow with minimal friction loss. The valve handle is on the right side of the
waterway and includes a position indicator, which identifies open and close
positions. The slow close valve prevents water hammer and allows fine-tuning of
the water supply exiting the standpipe. The waterway includes an air bleeder
and a protected inline pressure gauge that reads 0 – 200 psi (0-14 bar). The
inlet valve body of the waterway swivels 360 degrees before tightening and the
body of the inline pressure gauge always swivels 360 degrees for easy
connection. The 45-degree angle allows for adaptable installation and it
positions the attack hose to prevent kinks.
Product Type
Right or
Left or
Elbow w/ Gauge Only (No Valve)
Thread Type
65mm (2.5") BAT or
65mm (2.5") NPSH

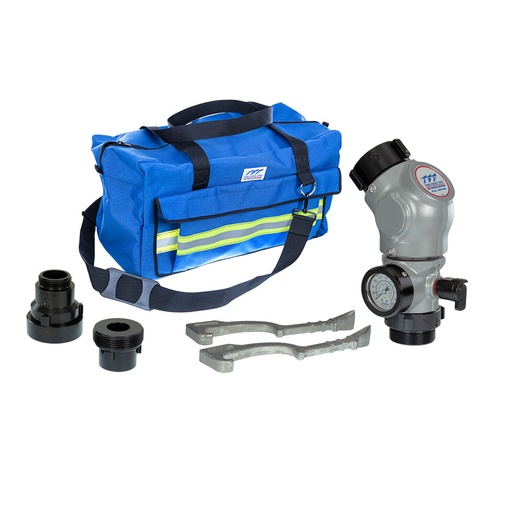

TFT Hi Rise 45 Degree Elbow Standpipe Valve, w/ Gauge
