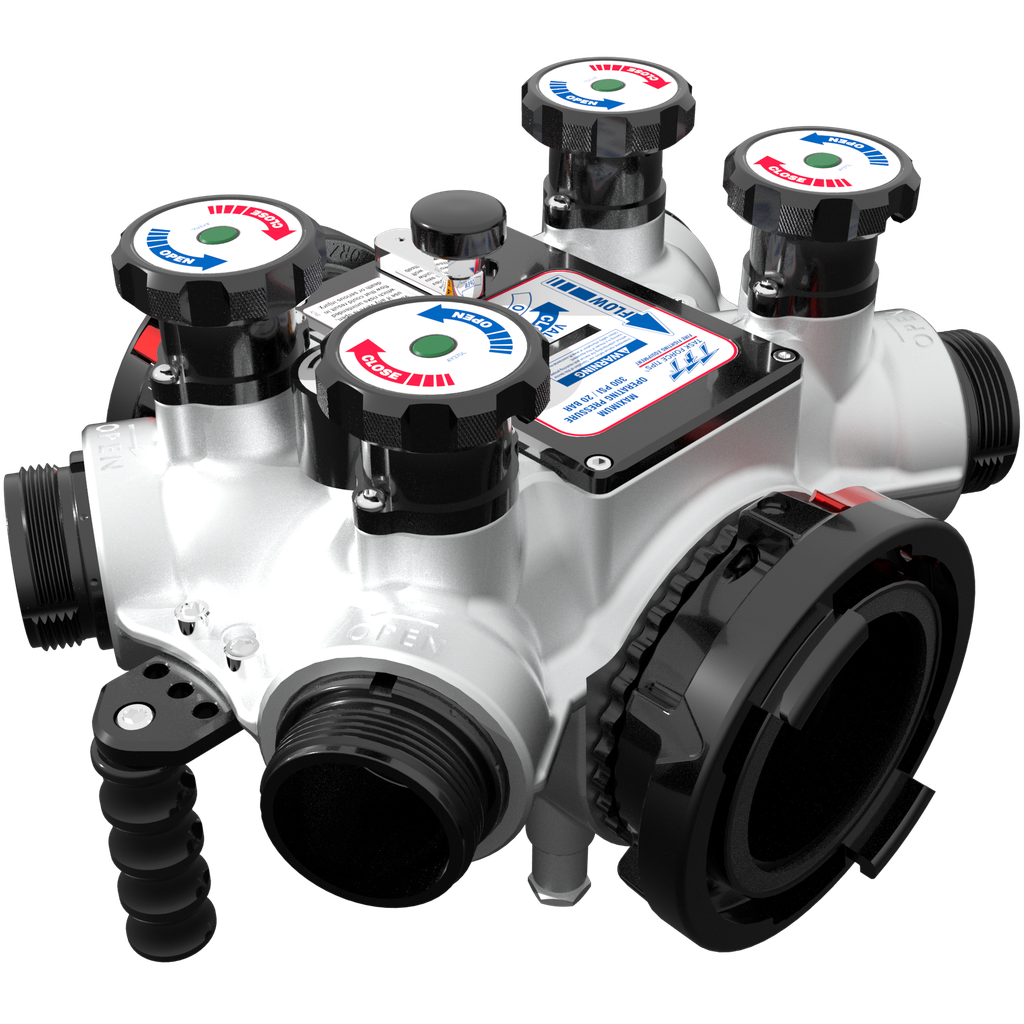

5-way
manifold is most commonly configured with Storz swivel inlet and outlet
with a slow open/close valve with only 2 PSI friction loss at 1000 GPM.
The unit shall have four (4) 2-1/2" male outlets with quarter-turn
aluminum ball valves with full 2-1/2" waterway, and color-coded folding
Nylon handles with auto-lock feature. Comes with a carrying handle as standard. Usually equipped with a plugged port where an adjustable automatic pressure relief valve may be installed. A protected pressure gauge shall be included. For
corrosion resistance the unit shall be hardcoat anodized aluminum alloy
and shall have a silver powder coat interior and exterior finish. Meets
NFPA 1965 900 PSI hydrostatic testing. The unit shall have a unique
serial number and be covered by a five-year warranty.
* The most common configuration listed above is with Storz swivel and male outlets
Available options upon request:
Other threads
Rigid vs swivel
Female thread
Thread Type
100mm (4") Storz inlet/outlet x Four (4) 65mm (2.5") BAT outlet or
125mm (5") Storz inlet/outlet x Four (4) 65mm (2.5") BAT outlet
TFT 5 Way Valved Manifold
