TFT's

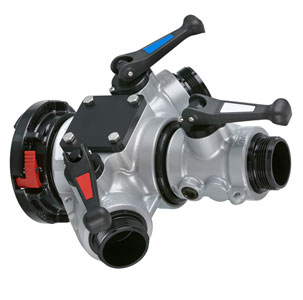

3-Way Valved Manifold is a rugged manifold with three 2.5" (64mm)
valved discharge ports, each with a full 2.5" (64mm) waterway. Maximum
operating pressure is 300 psi (21 bar). Valve seats are field
replaceable. Quarter turn valve handles operate with low force to move
even under pressure. Automatic valve lock keeps its position while
flowing at partial openings. Folding handles minimize storage space.
Aluminum casting is hard coat anodized and silver TFT Powder Coat finish
inside and out for maximum corrosion protection. Optional adjustable
pressure relief valve. Optional rugged .75" (19mm) air bleed valve to
quickly bleed air from the lines or to drain water from the valve
housing. Contact TFT customer service for configurations not shown.
* The most common configuration listed above is with Storz swivel and male outlets
Available options upon request:
Other threads
Rigid vs swivel
Female thread
Pressure Relief Valve
Product Option
No PRV (Pressure Relief Valve) or
With PRV (Pressure Relief Valve)
Thread Type
100mm (4") Storz x Three (3) 65mm (2.5") BAT F Inlet or
100mm (4") Storz x Three (3) 65mm (2.5") WCT outlet or
125mm (5") Storz x Three (3) 65mm (2.5") AMA F Inlet or
125mm (5") Storz x Three (3) 65mm (2.5") BAT F Inlet or
125mm (5") Storz x Three (3) 65mm (2.5") Storz Outlet or
100mm (4") Storz x Three (3) 65mm (2.5") NHT outlets or
100mm (4") Storz x Three (3) 65mm (2.5") BAT outlets
TFT 3 Way Valved Manifold
