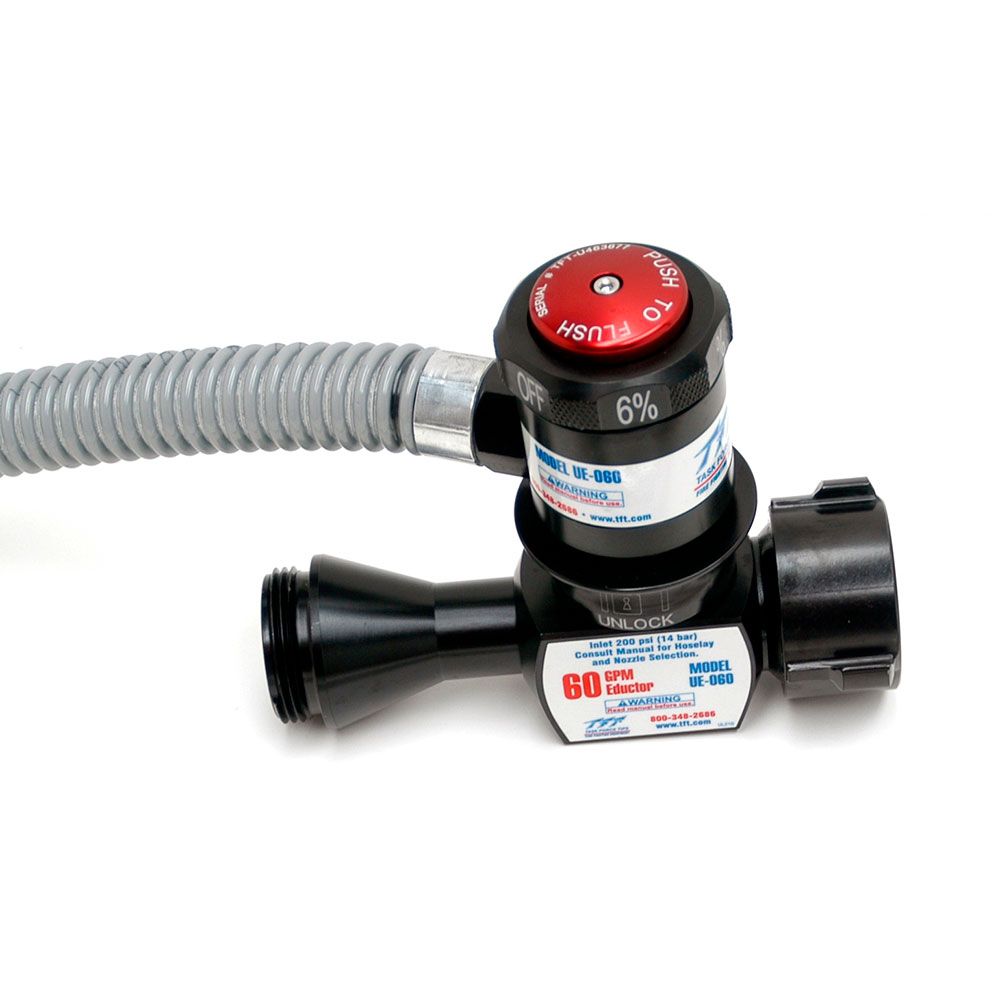

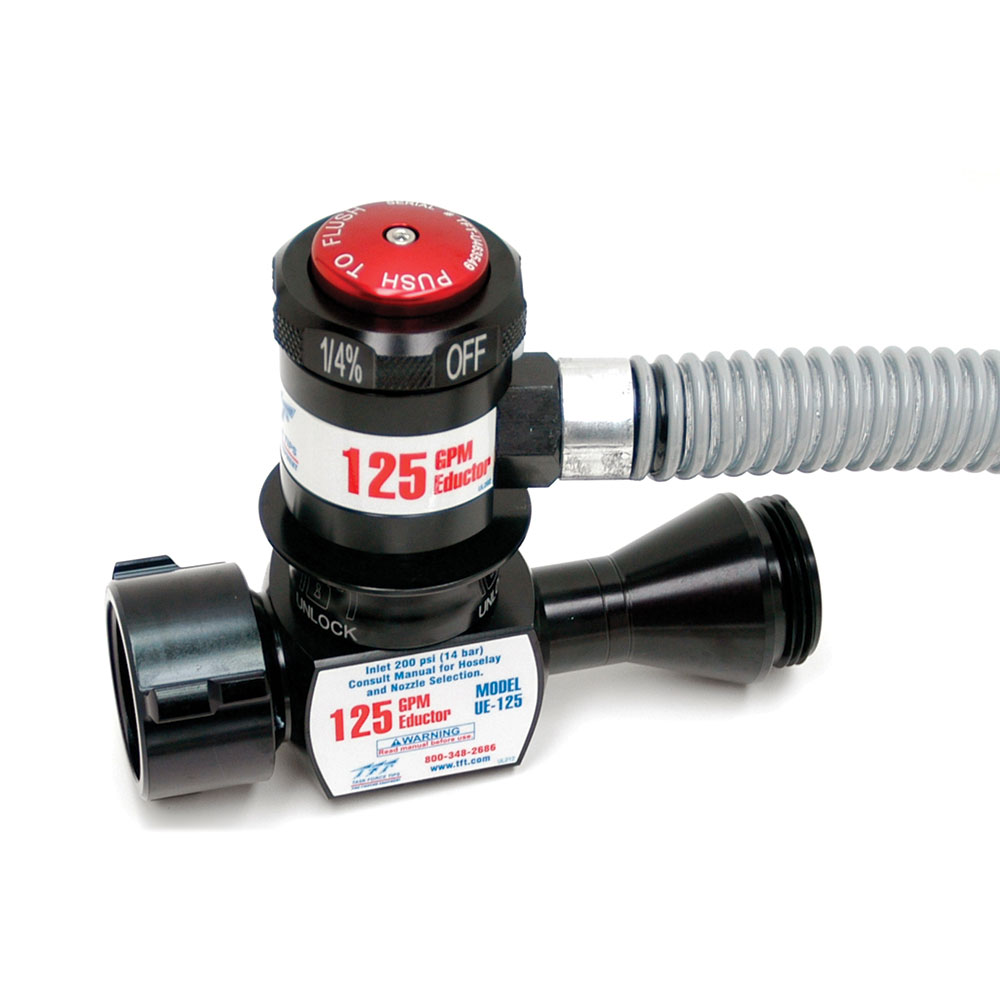

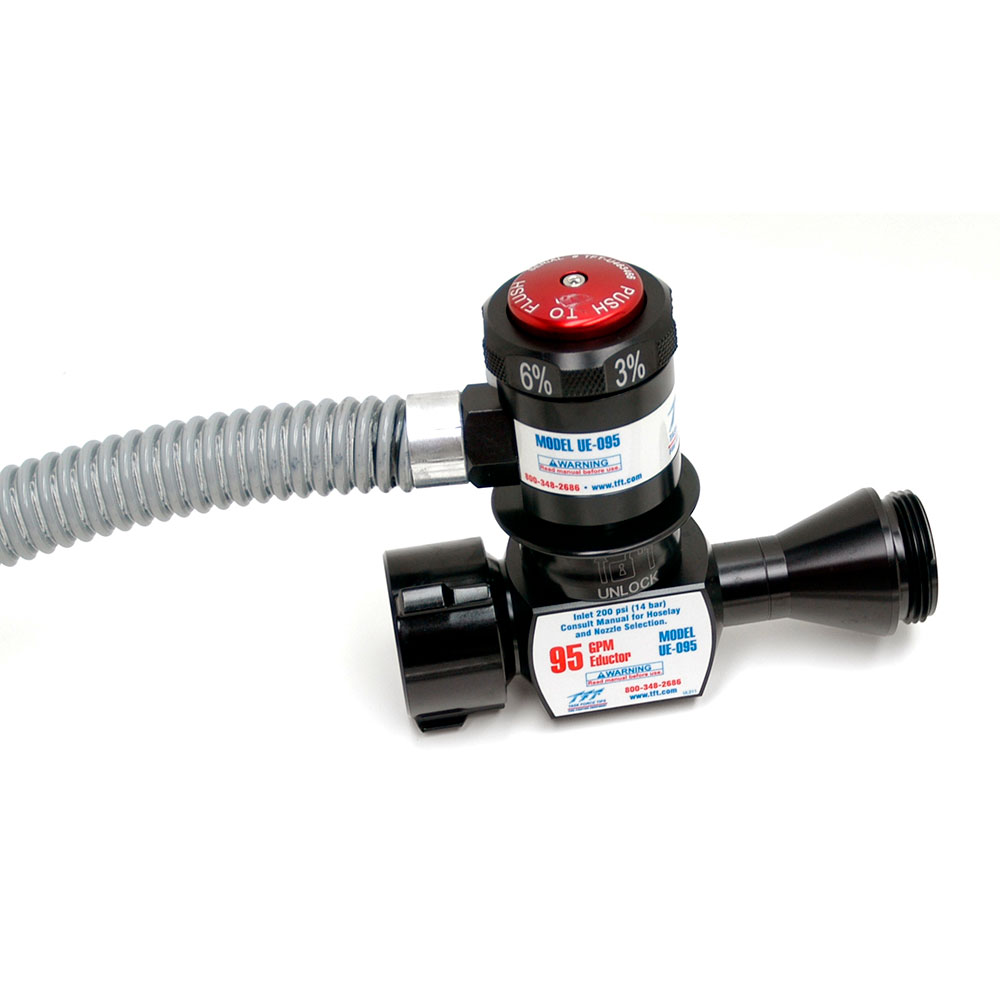

In-line Foam Eductors have a metering head with easy-read knob for use with Class A foam at .25% and .5% and with ARC-AFFF foam at 1%, 3% and 6% . Extra large 36" pickup hose and stainless steel wand are ideal for use with high viscosity foams. The meter head is equipped with a unique back flush push-button for fast cleaning, and is secured to the eductor body with a rugged disconnect. All controls are easy to use with gloves. Made of hardcoat anodized aluminum for corrosion protection. Inlet pressure is 200 psi. The maximum allowable back pressure is 130 psi.
Available in 60, 95, or 125 gpm models, 1.5" (38mm) NPSH, .25% .5% 1% 3% 6%
Specifications for TFT 125 Series In-line Foam Eductor (60-95-125 gpm)
| Eductor gpm | 60 gpm 1.5"NPSH or 95 gpm 1.5"NPSH or 125 gpm 1.5"NPSH |
