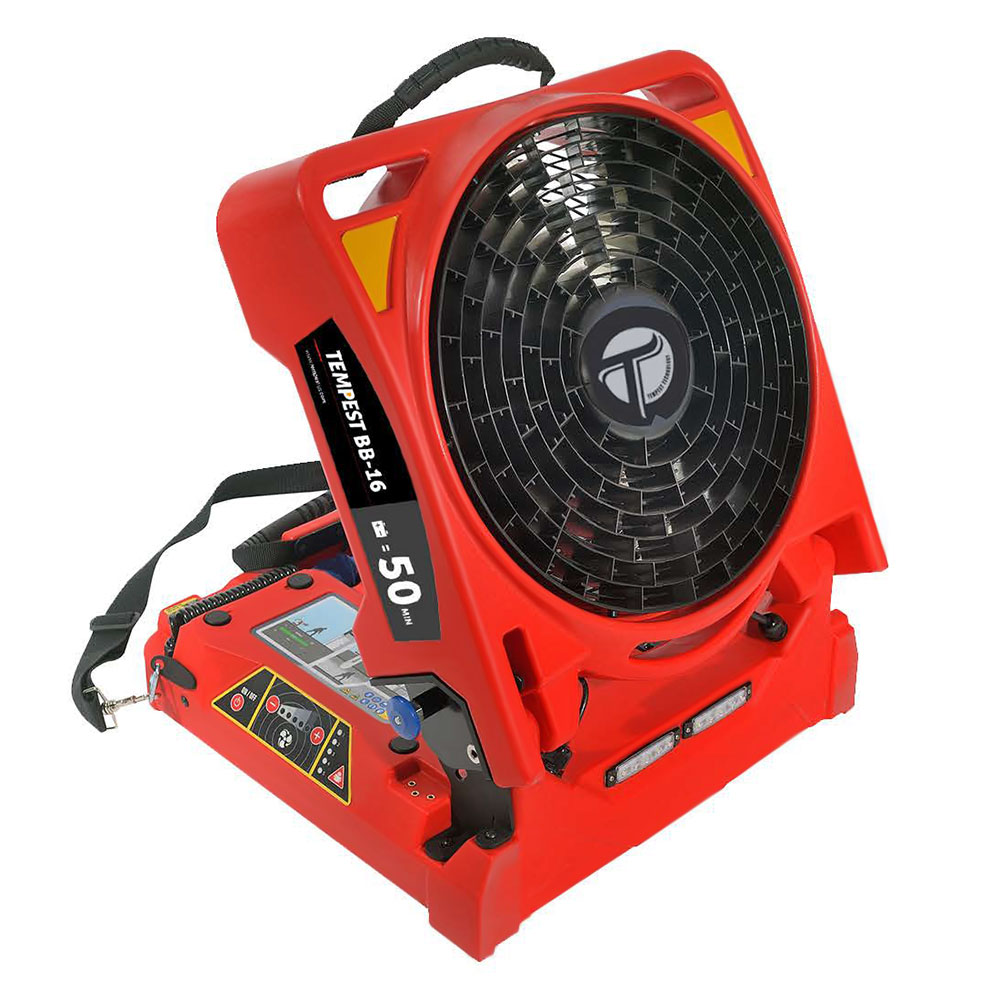

Tempest BB-16 Battery Powered PPV Fan
Fans
A portable, battery-operated fan that is powerful and lightweight. Totally self-contained operation—there is no need for a generator or power socket.
Compact, Mobile & Low Noise Level- Folds up and stows easily in the locker of a vehicle: (2) BB-16 fans occupy the space of one conventional fan!
- Portable by one person alone with carrying handle and strap
- BB-16 brings far less noise than gas driven fans during operation.
- No time wasted searching for a power socket: starts off instantly.
- No cable: avoids any accident.
- Blades specifically designed for the motor power.
- Patented system shaping an oval cone of air for increased performance.
- Reinforced double-layer Monobloc shroud.
- High-tech composite grill.
- Adjustable tilt from +65° to -90° with locking system (allows flat positioning to cover a manhole)
- Integrated variable-speed drive BLDC, totally encolsed.
- LED flow path lighting - positioned low for visibility below the smoke.
- Built in charger: charge during operation
- Battery charge indicator
- Secure (flat) keypad to control all functions (no fragile button to turn for setting speed…).
- Designed to be connected with ducts, foam adapter and “rehab” misting device if required.
- Will run on main electricity if necessary (battery will charge at same time).
- Indoors or outdoors: protected against splashing water (IP66).
- On its own at a building entrance for PPV.
- For PPV combined tactics with other fans:
- As a relay in a corridor or stairwell.
- For attack in front of an apartment door for offensive ventilation.
- For extraction or blowing through ducts (optional).
- As a foam generator with foam adapter (optional).
- For rehab of the crew after intervention.
Specifications:
- PPV air flow according to AMCA 240 Std: 10,300 cfm* (18,587 m³/h)
- Noise Level: 76.3 dB at 10ft.
- Propeller Diameter: 16" (41cm).
- Operating Temperature: -20°C to +54°C (-4°F to +130°F).
- Engine: 0.8 hp / 600 W - variable speed drive BLDC Totally Enclosed – IP66
- Power: Available in 110V or 220V options.
- +65° to -90° adjustable tilt (allows flat positioning to cover manhole).
- Battery: Removable 12.5 Ah / 585 WH Li-Ion - IP 65
- Run Time: 50 min at full speed.
- Charging Time: 100% in 3h with external quick charger
- 21"h x 22"w x 11"d (53.3cm x 55.9cm x 27.9cm)
- Weight:
- With battery: 51 lbs. (23.1 kg)
- With out battery: 42 lbs (19.1 kg)
- Li-ION battery with 200 recharge cycles.
- Meets EN 50178 for user safety (leakage current less than 3.5 mA)
- Warranty: 3 year on Fan, 1 year on battery.
