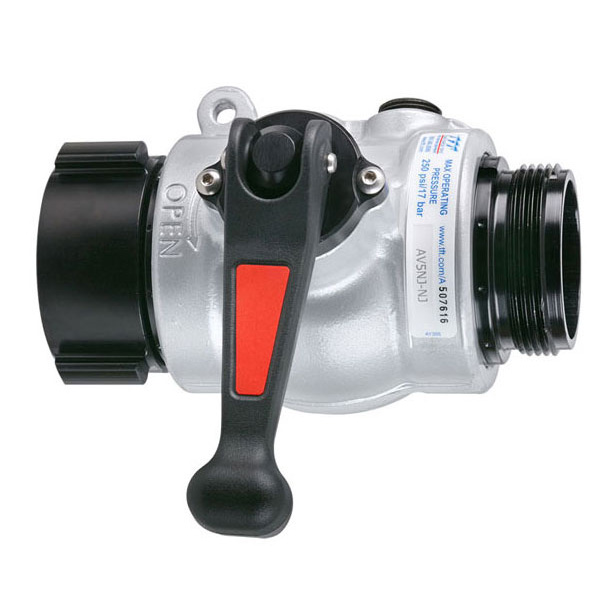

Quarter Turn Hydrant Gate Valve

https://www.wfrfire.com/web/image/product.template/2482/image_1920?unique=acd010d
  • Thread Type

This combination does not exist.

Hardware

TFT's 2.5" Quarter Turn Hydrant Valve is a lightweight valve with a full 2.5" waterway. 250 psi (17 bar) operating pressure from either side of valve. Field replaceable valve seat. Quarter turn valve handle has low force to move valve even under pressure. Automatic vale lock keeps valve position while flowing at partial openings. all the components on the wet side of the valve are made of anodized aluminum for additional corrosion protection. Pipe threaded ports for pressure gauge or bleed valve. Hole for cap tether attachment. Aluminum casting is hardcoat anodized and silver TFT-powder coat finish inside and out for maximum corrosion protection.

  • Super tough nylon folding handle
  • Full fulow 2/5" (65mm) waterway provides maximum flow with minimal loss
  • 2.5" (65mm) female swivel rocker lug coupling is standard
  • Weighs 5.8lbs. (2.6kg)
  • 8.9"h x 5.7w" x 8.4"l (23cm x 15cm x 21cm)

Specifications for Quarter Turn Hydrant Valve

Hydrant ThreadBAT - Hydrant thread or WCT - Hydrant thread
