#1 - Water Pump Cover or
#2 - O-Ring or
#3 - Sealed Washer (5req) or
#4 - Bolt or
#5 - Mechanical Seal or
#6 - Impeller or
#7 - Diffuse or
#8 - Sealing Ring or
#9 - Pump Body or
#10 - Sealing Gasket or
#11 - Top Manifold or
#12 - 38mm cap washer or
#13 - 38mm cap or
#14 - Manifold bolt (4 req) or
#15 - Primer o-ring or
#16 - Primer cap or
#20 - 65mm gasket or
#22 - 65mm cap or
#25 - Check Valve or
#26 - Inlet flange or
#32 - Bolt inlet (4req) or
#33 - Washer for inlet bolt (4req) or
#35 - Key or
#36 - bolt for impeller

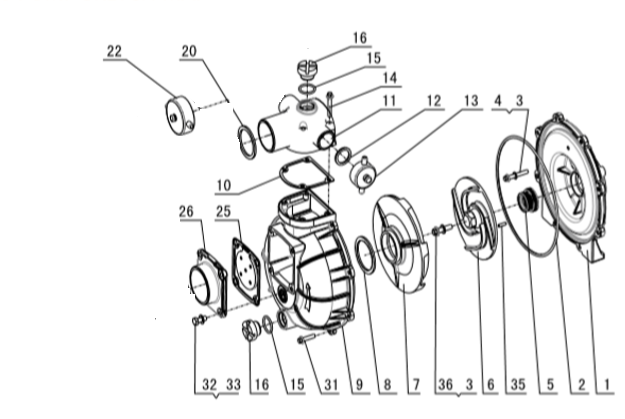

parts-13hp Frontier Pump
