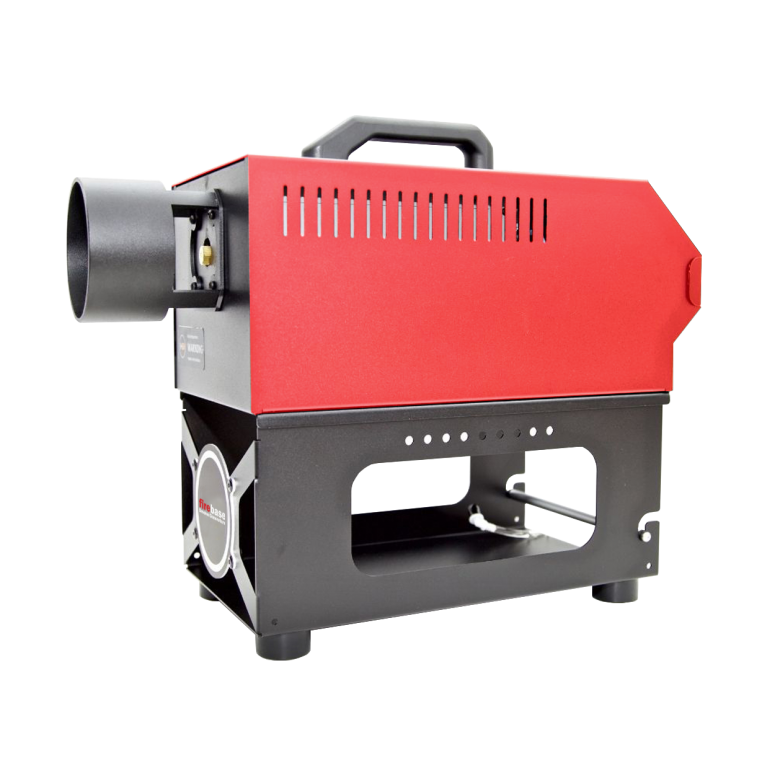

Firebase SG-1700 Fog/Smoke Machine and 5L Bottle

485030205 (PFP-20HPHND-2D) 4" inlet
https://www.wfrfire.com/web/image/product.template/9106/image_1920?unique=2fe0511

    This combination does not exist.

    FireBase® 1700 Compact and Powerful Smoke Generators with continuous output and a full 2 year warranty.

    • High Output Compact Smoke Generator
    • 1700W / 110 Volt / 40,000 CFM
    • Integrated timer and adjustable output with digital technology
    • DMX serial production
    • Continuous fogging possible

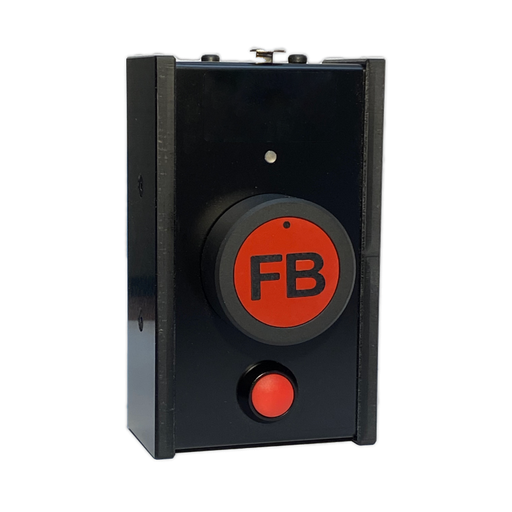

    • Remote Control Available (purchased separately)

    SPECIFICATIONS

    • 18.9"l x 8.3"w x 15.3"h (48cm x 21cm x 60cm)
    • Net Weight: 30.8 lbs. (14kg)
    • Fluid consumption:
      • Up to 240 ml/min (full power mode)
      • Up to 40 ml/min with continuous fog
    • Ready time: 12 Min.
    • Control options: DMX512, RDM, Modbus RTU, JT remote, Dial Cable remote control, radio remote control (optional), integrated timer, stand-alone
    • Fog:  Variable output control, 0-100%
    • DMX channels: 1
    • Protocols: DMX512, RDM, Modbus RTU, JT remote
    • Housing: Metal
    • Color: Red and Black
    • Display: 1.3" OLED Display, Membrane Keyboard
    • Fluid pump: Dual oscillating piston, high pressure
    • Fluid reservoir: 5L drop-in reservoir
    • Mounting: Standing or hanging
    • Orientation: Up to +/-40° from horizontal
    • AC Power: PowerCON TRUE1
    • DMX, link mode in/out: 5-pin locking XLR
    • US Model:AC power: 120 V, 60 Hz
    • Main fuse: 15A, 250 V
    • Typical power and current: 1700 W
    • *Measurements made at nominal voltage. Allow for a deviation of +/- 10%.
    • Fluid reservoir, 5L Tank
    • Power input cable: PowerCON TRUE1

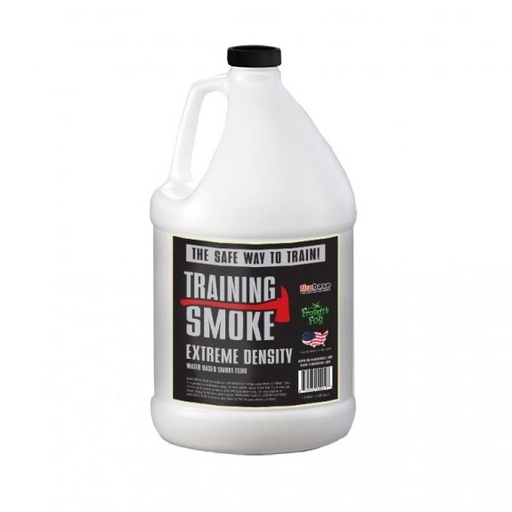

    Approved fluids*: Water-Based Training Smoke Fluids
