FireBozz Mini - Mobile Water System

https://www.wfrfire.com/web/image/product.template/9057/image_1920?unique=118731c

38mm (1.5") NPT inlet/outlet

    This combination does not exist.

    Forestry

    Firebozz® is a rapid-deploy water-sprinkler-like cannon for fighting fires at reduced cost and increased safety while conserving water.

    A single cannon can shoot water, foam, or retardants up to 110 feet radius with a full 360-degree traverse or partial arc. It can be connected with other FireBozz® units to create rapid and expanded firebreak capability. Weighing 24 lbs the FireBozz® can be carried and deployed in less than a minute.

    Features

    • Quick and easy setup on any terrain
    • Tough, welded stainless and aluminum construction
    • Does not damage houses located in the interface environment
    • Multi-purpose water dispersal perfect for emergency response, municipal works, and resorts
    • Easy setup and walk-away features allow operators to get out of harm’s way
    • Broken stream allows maximum conservation of water resources
    • Loads the air with a protective misting envelope to raise relative humidity values over a wide area
    • Multi-unit connection creates a quick, robust, and extremely large wet-lin

    Specifications

    • Up to 190’ (58m) in diameter protection
    • 27 – 88 gpm (102 – 333 lpm)
    • Nozzle Head Size: 8, 10, 12mm
    • Inlet/Outlet: Standard 1.5” (40mm) NPT connector for any adaptor
    • 24 lbs (11 kg)
    • Storage Dimension: 18"l x 19"h x 11"w (46cm x 48.5cm x 28cm)

    How FireBozz Works

    Fire can only spread through heat. Remove heat - remove the fire. Cool the fuels and ignition cannot start. FireBozz® units do this in two ways.

    1. Projection of water over a massive area
    2. Injection of vapour into the atmosphere to create a humidity bubble

    A massive protective area can be established easily and much more rapidly than with traditional sprinkler systems. The FireBozz® rapid deploy system allows a high degree of confidence for your home, livelihood, and industry to be protected.

     FireBozz Vapour Dome Diagram

    Set Up

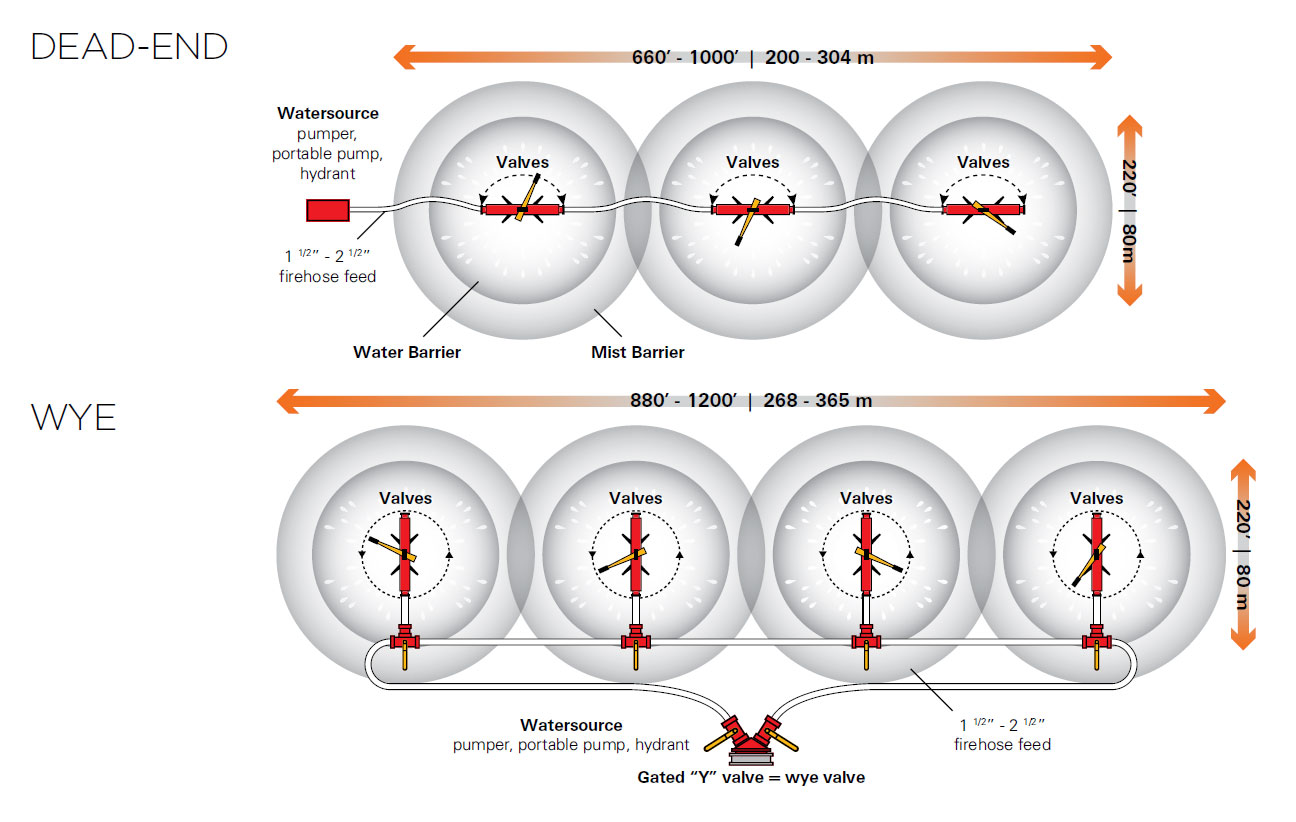

     FireBozz Set Up Diagram

    Diagrams

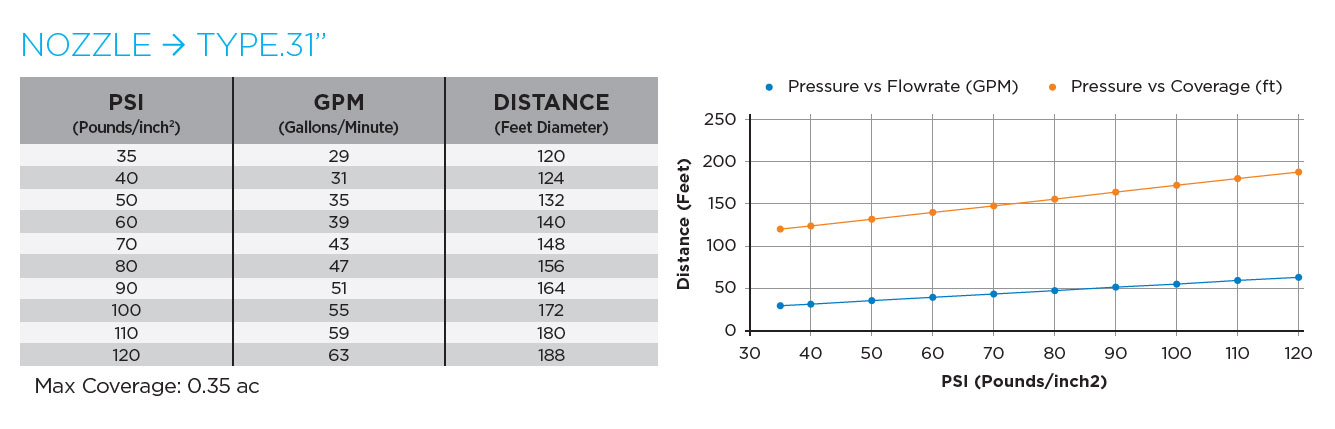

    .8mm Nozzle Flow Chart

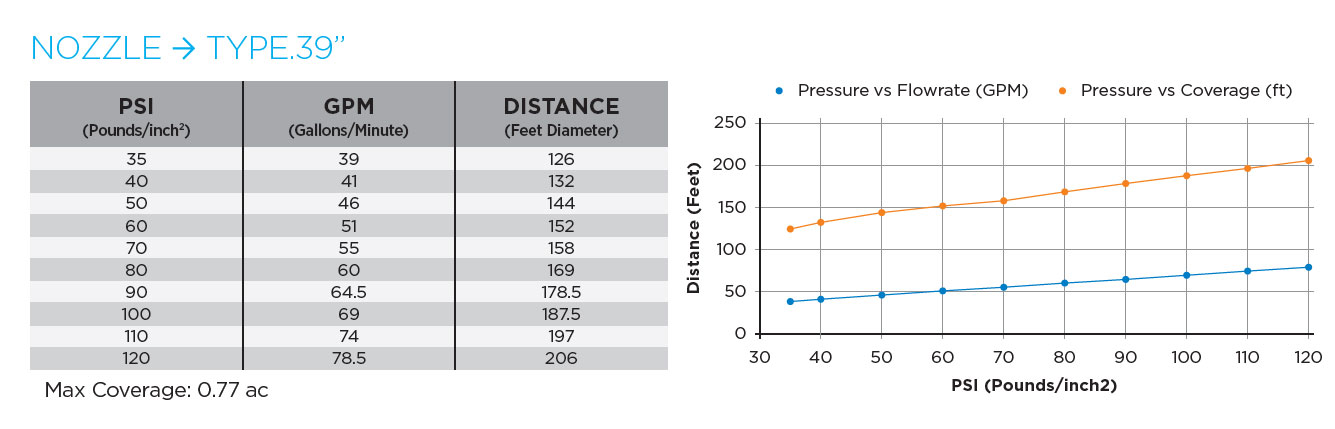

    10mm Nozzle Flow Chart

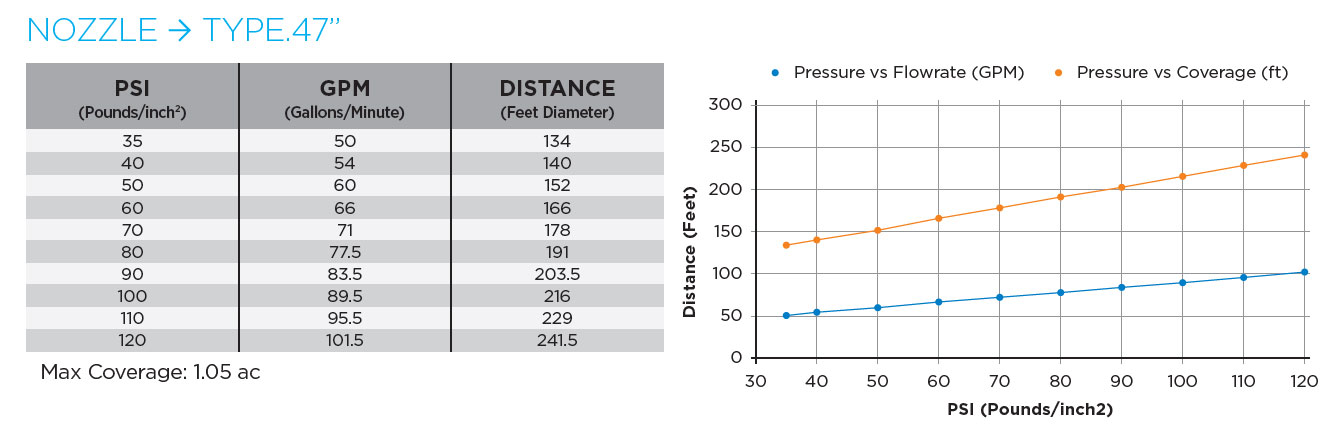

    12mm Nozzle Flow Chart
    Product Image
    FireBozz Mini - Mobile Water System
