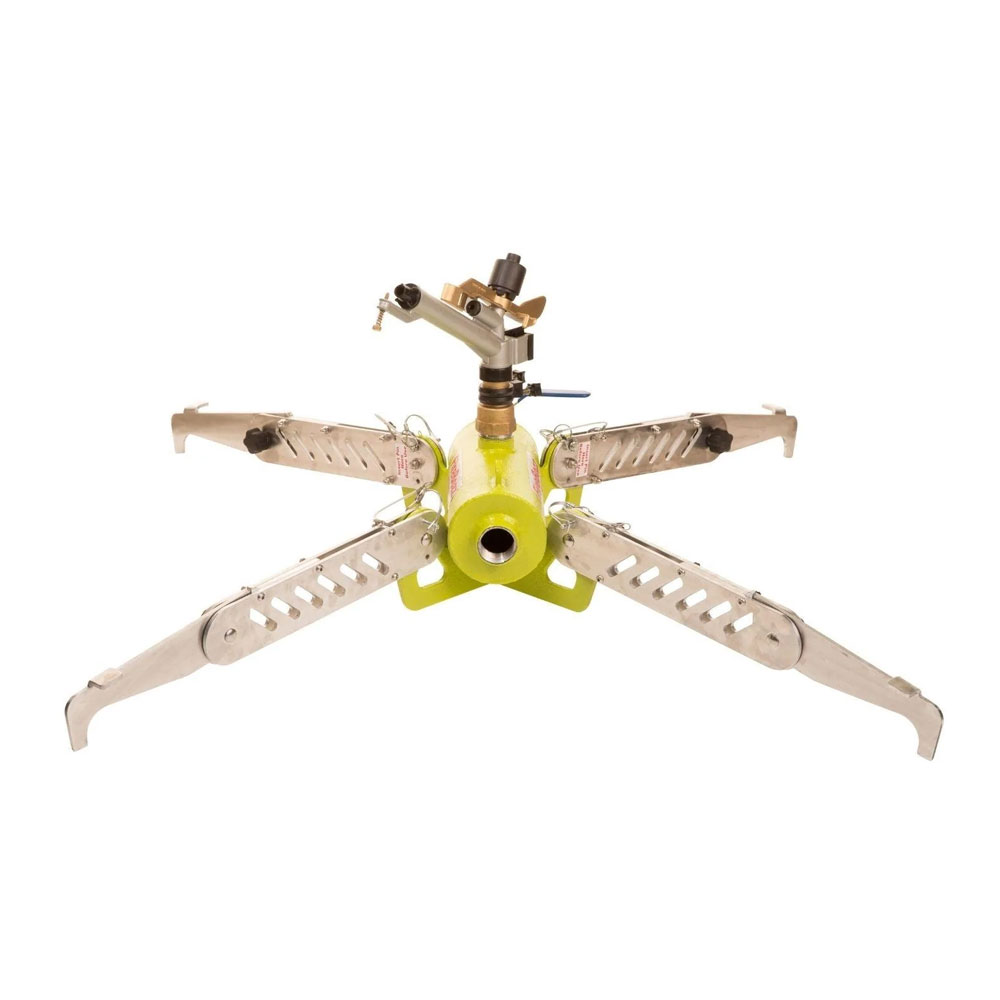

FireBozz Mini - Mobile Water System

Firebozz® is a rapid-deploy water-sprinkler-like cannon for fighting fires at reduced cost and increased safety while conserving water.

A single cannon can shoot water, foam, or retardants up to 110 feet radius with a full 360-degree traverse or partial arc. It can be connected with other FireBozz® units to create rapid and expanded firebreak capability. Weighing 24 lbs the FireBozz® can be carried and deployed in less than a minute.

Features

• Quick and easy setup on any terrain
• Tough, welded stainless and aluminum construction
• Does not damage houses located in the interface environment
• Multi-purpose water dispersal perfect for emergency response, municipal works, and resorts
• Easy setup and walk-away features allow operators to get out of harm’s way
• Broken stream allows maximum conservation of water resources
• Loads the air with a protective misting envelope to raise relative humidity values over a wide area
• Multi-unit connection creates a quick, robust, and extremely large wet-lin

Specifications

• Up to 190’ (58m) in diameter protection
• 27 – 88 gpm (102 – 333 lpm)
• Nozzle Head Size: 8, 10, 12mm
• Inlet/Outlet: Standard 1.5” (40mm) NPT connector for any adaptor
• 24 lbs (11 kg)
• Storage Dimension: 18"l x 19"h x 11"w (46cm x 48.5cm x 28cm)


How FireBozz Works

Fire can only spread through heat. Remove heat - remove the fire. Cool the fuels and ignition cannot start. FireBozz® units do this in two ways.

1. Projection of water over a massive area
2. Injection of vapour into the atmosphere to create a humidity bubble

A massive protective area can be established easily and much more rapidly than with traditional sprinkler systems. The FireBozz® rapid deploy system allows a high degree of confidence for your home, livelihood, and industry to be protected.

Set Up

Diagrams
