Fire Pump 23hp High Volume - Gas Powered - Dual Outlet-CET
710003173
Freight and crating is extra

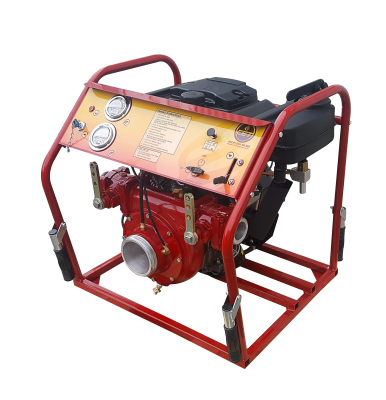

VANGUARD POWERED HIGH VOLUME PUMP
This pump is the ideal tool to fill your fire truck, supply your pump truck or carry water over a long distance.
ENGINE SPECIFICATIONS
- Vanguard, model 380000, air cooled engine
- V-Twin cylinder, 4-stroke gasoline engine
- Electric start with recoil start as backup
- 2.25 Gallons (8.5 L) integrated fuel tank
INCLUDED ACCESSORIES
- Full control panel with pressure gauge, vacuum gauge, throttle, choke, starter, panel light and priming valve
- 16 Amps alternator
- Low oil alert
- 12-V battery
PUMP UNIT SPECIFICATIONS
- C.E.T. single stage centrifugal pump
- Pump body made from high resistance aluminum alloy
- Bronze impeller
- Mechanical shaft seal
- Exhaust priming system, guaranteed up to 20’ (6 meter) lift
- Two 2 1/2” (65 mm) delivery outlets with Fire Type swing-out valve
- One 4” (100 mm) suction inlet
- Dimensions: Length: 24 3/4" (630 mm) Width: 26 1/4" (667 mm); Height: 25 3/4" (654 mm)
- Wet weight: 198 lbs (90 kg)
