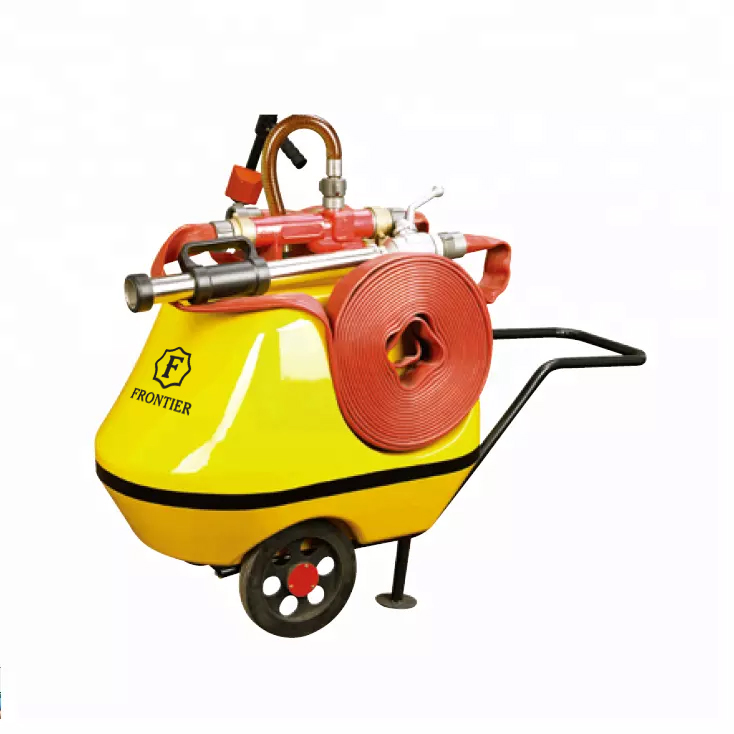

Frontier Mobile Foam Cart – 95 GPM

The Frontier Mobile Foam Cart is a fast-deploy, high-mobility foam solution designed for Class B / flammable liquid incidents. It carries 30 gallons (120 L) of foam concentrate and includes a 95 GPM in-line eductor with a fully variable foam proportioning adjustment from 0% to 6%, a 95 GPM handline nozzle, and two (2) × 50 ft lengths of 1.5" rubber fire hose.

The adjustable eductor allows operators to select the desired foam concentrate percentage anywhere between 0% and 6%, providing flexibility for different foam concentrates and application requirements.

Designed for rapid deployment, the mobile cart allows a single operator to move the equipment into position and quickly establish a foam application line.

Built around a reinforced fiberglass concentrate tank, the cart is designed for demanding industrial environments. The nozzle features a ball shut-off for reliable stream control and provides both straight stream and fog patterns.

Key Features

• Variable Foam Proportioning: Fully adjustable eductor from 0% to 6%, allowing operators to select the required foam concentration.
• 95 GPM Flow Capacity: Designed for effective foam application during flammable liquid incidents.
• 120 L Foam Tank: Reinforced fiberglass construction for durability.
• Mobile Design: Large pneumatic tires allow easy movement around industrial facilities.
• Versatile Nozzle: 95 GPM handline nozzle with straight stream and fog adjustments.
• Complete Hose Package: Includes two 50 ft lengths of 1.5" rubber fire hose.
• Easy Operation: Simple water supply connection and adjustable foam concentration control.

Technical Specifications

How It Works

1. Fill the Tank: Add the appropriate foam concentrate for the intended application.
2. Connect Water Supply: Connect the pressurized water supply to the in-line foam eductor inlet.
3. Adjust Foam Concentration: Set the variable eductor to the desired concentration anywhere between 0% and 6%, according to the foam manufacturer's recommendations.
4. Begin Foam Application: Open the water supply and operate the handline nozzle to apply the foam solution.
5. Adjust as Required: The eductor allows selection of different concentration settings to suit the application, subject to proper operating conditions.

Testing and Maintenance

Following initial commissioning and successful operational testing, authorized personnel must be trained to inspect, operate, and maintain the unit.

Regular physical inspections should verify that all components remain undamaged and in proper working condition.

The unit should be operated and tested at full flow periodically in accordance with the requirements of the organization having local jurisdiction and the manufacturer's recommendations.

The equipment owner is responsible for ensuring that the foam cart remains in safe and proper operating condition.

Important: Actual foam proportioning performance depends on the available inlet pressure, water flow, downstream backpressure, hose configuration, and foam concentrate characteristics. Operators should verify that the selected concentrate is suitable for the intended hazard and that the eductor operates within its specified pressure and flow requirements.
