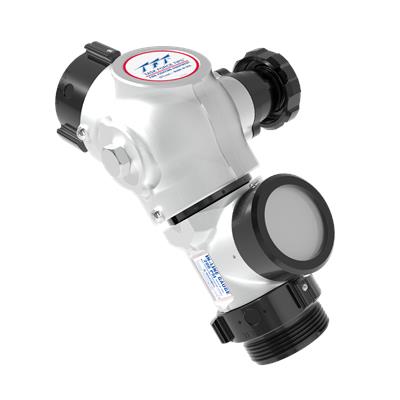

TFT Hi Rise 45 Degree Elbow Standpipe Valve

CLOSE 0-200 PSI/BAR FIXED OUTLET

Features

TFT’s 45-degree standpipe waterway with a right-handle slow close valve, has a full 2.5” (64 mm) waterway for maximum flow with minimal friction loss. The valve handle is on the right side of the waterway and includes a position indicator, which identifies open and close positions. The slow close valve prevents water hammer and allows fine-tuning of the water supply exiting the standpipe. The waterway includes an air bleeder and a protected inline pressure gauge that reads 0 – 200 psi (0-14 bar). The inlet valve body of the waterway swivels 360 degrees before tightening and the body of the inline pressure gauge always swivels 360 degrees for easy connection. The 45-degree angle allows for adaptable installation and it positions the attack hose to prevent kinks.
