Honda EB5000X3CT2 Commercial 5000 GFCI

https://www.wfrfire.com/web/image/product.template/8196/image_1920?unique=6d90422

Order Form Required
Price on request


The EB5000 has premium features for industrial usage and general purpose applications in commercial and rental situations.

Features

  • Dual voltage power with premium features and GFCI (Ground Fault Circuit Interrupter) protection on duplex receptacles
  • 5,000 watts maximum AC output
  • Powerful, easy-start Honda iGX390 commercial-grade engine
  • Auto-throttle further extends running time by automatically adjusting engine speed to idle when under no load
  • Standard wheel kit with positive lock folding handles for easy transportation and convenient, compact storage
  • Cold Climate Technology™ aids continuous running in cold weather conditions
  • Honda exclusive iAVR (Intelligent Auto Voltage Regulation) system for stable power delivery and available extra wattage (7,000 watts for 10 seconds to start larger equipment)
  • Voltage Selector Switch allows both 120 V and 240 V output, or total generator output to be available through any of the 120 volt outlets, limited only by the capacity of the individual outlet for powering devices with larger wattage requirements.
  • Hanger kit/lifting eye for easier moving around the job site

Electrical

  • Generator Type: Brush type
  • Maximum AC Output (Watts): 5,000
  • AC Voltage Available: 120 / 240
  • Maximum Continuous AC Output (Watts): 4,500 7,000 (iAVR)
  • Max. Rated AC Amperage @ 120 V / 240 V: 37.5 / 18.8 (58.3 / 29.2 for 10 sec. iAVR)
  • Ground Fault Circuit Interrupter (GFCI): Standard
  • Frequency (Hertz): 60
  • Automatic Voltage Regulator: Standard iAVR (Intelligent Automatic Voltage Regulator)
  • Common Duplex Receptacle Specifications: 37.5 amps/120 VAC continuous is available as combined total from these twin duplex AC receptacles. Maximum of 18.8 amps available from each GFCI duplex receptacle.
  • DC Output Volts / Amps: N/A
  • DC Receptacle Specifications: N/A
  • DC Charging Cable: N/A
  • High Capacity 120 / 240 VAC Twist Lock Receptacle Specifications: This receptacle (NEMA # L5-30R) will supply 30 amps at 120 VAC continuously. This receptacle (NEMA # L14-30R) will supply 18.8 amps (4.5 kVA) at 240 VAC continuously.

Engine

  • Engine Type: Honda iGX390T2 OHV, 4-stroke, air-cooled
  • Displacement: 389 cc
  • Starting System: Manual recoil
  • Low Level Oil Alert System: Standard
  • Auto Throttle: Standard
  • Remote Start Capability: No
  • Fuel Tank Capacity: 23.5 L (5.17 Imp. gal.)

Additional Information

  • Transport Wheels: 2 Wheel standard
  • Lifting Hook: Standard
  • Battery: N/A
  • Approximate Running Time (hrs.) / Tankful: 8.1** / 11.2****
  • Rated Fuel Consumption (litres/hr): 2.90**
  • Noise Level dB(A) (1.5 m to 7 m): 72**
  • Length (Without Handles and Wheels): 681 mm (26.8 in.)
  • Length (With Handles and Wheels): 1,043 mm (41.1 in.)
  • Width (Without Handles and Wheels): 530 mm (20.9 in.)
  • Width (With Handles and Wheels): 706 mm (27.8 in.)
  • Height (Without Lift-Hook): 719 mm (28.3 in.)
  • Height (With Lift-Hook): 773 mm (30.4 in.) standard
  • Dry Weight: 94.6 kg (208.6 lb.)
  • Cold Climate Technology: Standard

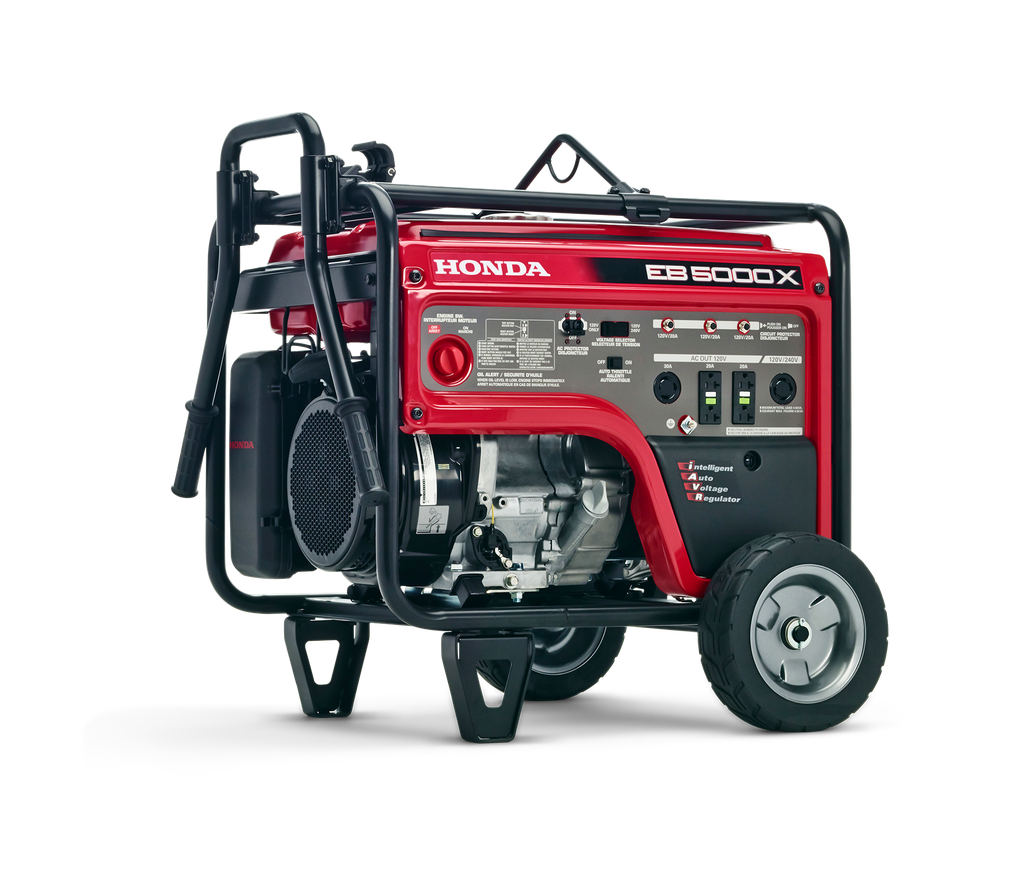

Product Image
Honda EB5000X3CT2 Commercial 5000 GFCI
