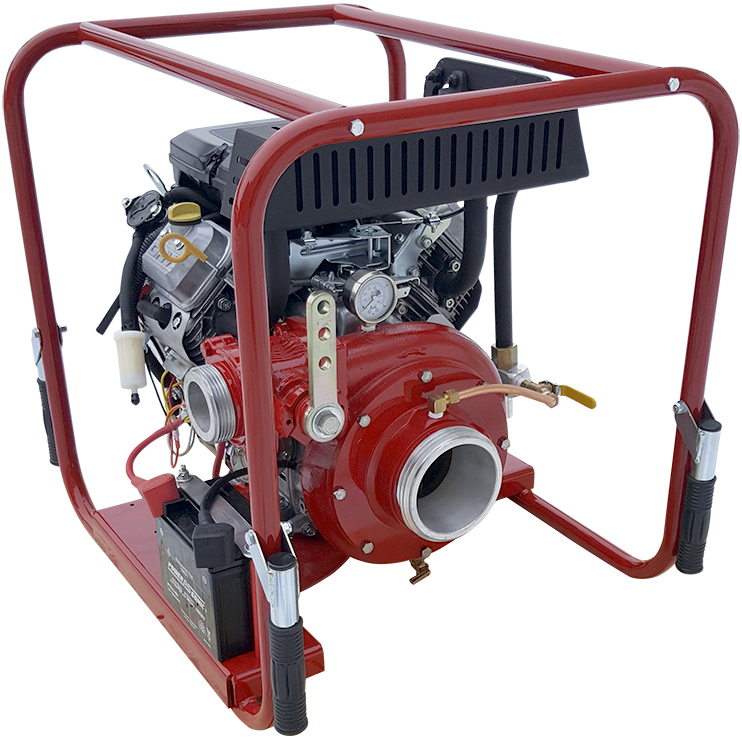

Fire Pump 18hp Pressure/Volume - Gas Powered - CET

• Vanguard. Model 3564, air colled engine.
• 2-cylinder, 4-stroke gasoline engine.
• Electric start with recoil start backup.
• 6 gallon (22L) detachable fuel tank.

INCLUDED ACCESSORIES:

• 16 Amp alternator.
• 12V Battery.
• Pressure gauge.

PUMP UNIT SPECIFICATIONS:

• C.E.T. single stage centrifugal pump.
• Pump body made from high resistant aluminum alloy.
• Bronze impeller.
• Mechanical shaft seal.
• Stainless steel pump shaft.
• Exhaust priming system, guarnteed up to 20' (6 metere lift).
• (1) 65mm (2.5") delivery outlet with Fire Type swing-out-valve.
• (1) 100mm (4") suction inlet.
• Dimension: 27.5" L x 22" W x 24" H
• Weight: 172 lbs (78 kg).

PERFORMANCE:

• 390 gpm @ 25 psi
• 310 gpm @ 50 psi
• 130 gpm @ 100 psi
• 45 gpm @ 125 psi

LIMITED WARRANTY:

• 3 years.
