Kussmaul Auto Current

https://www.wfrfire.com/web/image/product.template/7505/image_1920?unique=ecc6f87

    This combination does not exist.

    Service Parts

    DESCRIPTION

    • Auxiliary Input, Ground to Operate
    • Senses current flowing in and provides remote indication that a load is operating
    • Simplifies vehicle wiring
    • Single indicator activates from many inputs
    • 3 year warranty

    The Auto Current A is an Auto Current with an auxiliary input, which when grounded causes the output relay to operate. When the output relay is operated it goes ON and OFF to create a signal. The Auto Current portion of this device senses current to permit use as an open door detector. The auxiliary input may be connected to any number of switches in parallel. Closing any switch will then operate the Auto Current A, in addition to the current sensing. This feature makes it ideal as a detector for a "DO NOT MOVE VEHICLE" indicator. As with the standard Auto Current, the sense terminals are wired in series with the power supplied to the compartment lights.

    Standard unit supplies +12 Volts to indicator. All units are available as -G for operating indicator by grounding

    • Input: 12 Vdc
    • Warranty: 3 Years
    • Weight: .25 lbs. (113g)
    • Resistance: 0.2 Ohms
    • Switch Rating: 5 Amps
    • Minimum Operating Amps: 0.10 Amps
    • Maximum Operating Amps: 4 Amps

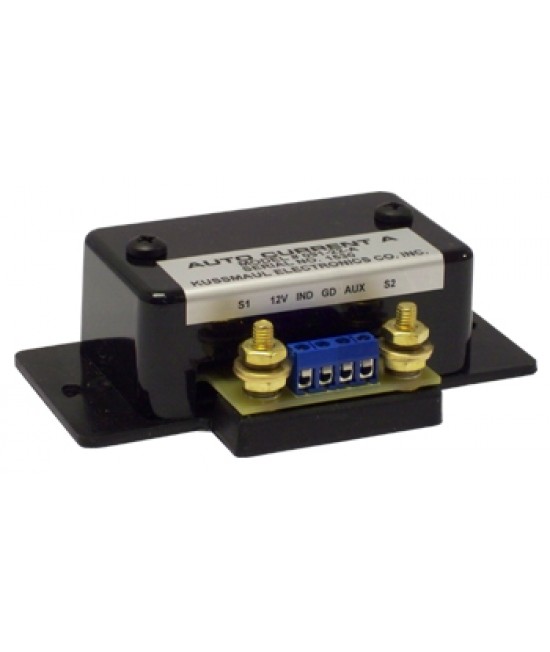

    Product Image
    Kussmaul Auto Current
