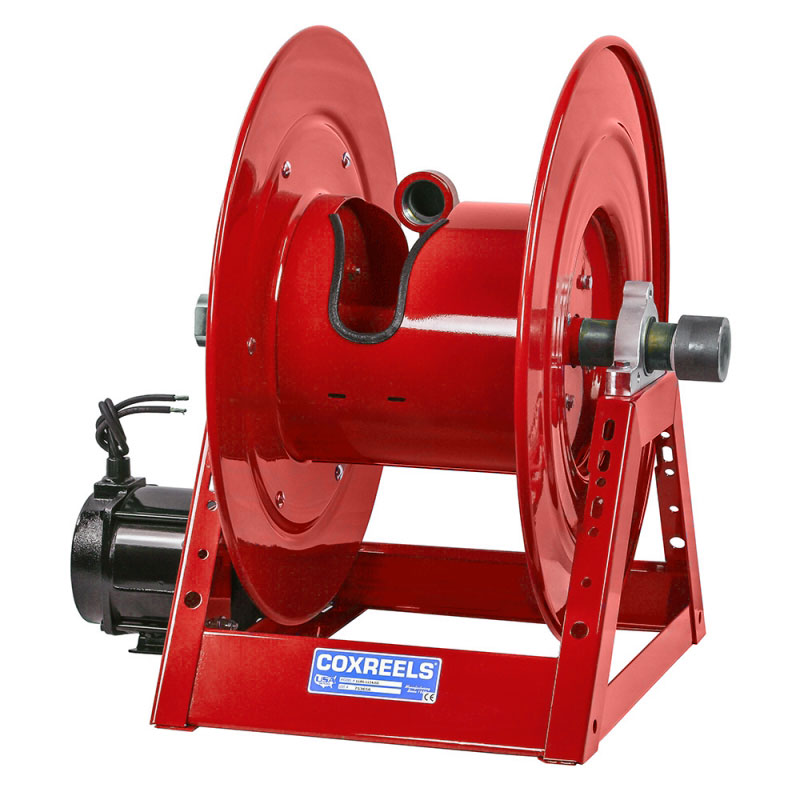

Hose Reel 1185 Series - Electric 12V DC Motor - 38mm (1.5") x 100ft booster hose (hose not included) - NPT outlet - Painted Red
710003173
34.63"W x 26"H x 24"L Painted Red
COXREELS® 1185 Series motor driven hose reels are intended to handle long lengths of large diameter hose designed for increased volume delivery. Coxreels’ exclusive low profile outlet riser and open drum design provide a non-crimping, flat smooth hose wrap. The sturdy all welded "A" frame base provides extraordinary strength to handle the additional weight without sacrificing performance, even in demanding mobile applications.
- Professional grade heavy duty steel construction.
- Rolled edges & ribbed discs provide strength & safety.
- Leading 2-year manufacturer's limited warranty
- Made in the U.S.A. - Sold & Supported Worldwide.
- SWIVEL - In-line electroless nickel plated steel full-flow NPT swivel for simple seal maintenance and fast and easy hose installation. No need to remove the reel from its mount.
- CNC SPUN DISCS - Heavy duty CNC robotically spun and ribbed discs with rolled edges for greater strength, durability, hose protection, and operator safety.
- OUTLET RISER - Exclusive low profile outlet riser and open drum slot design provides a non-crimping, flat smooth hose wrap.
- "A" FRAME - Sturdy one piece, all CNC robotically welded 12 gauge steel "A" frame base, not bolted, for superior reel structure. Mounting pattern located in the steel base for easy reel installation and detachment.
- PERMANENT LUBRICATED BEARINGS - Robust lubricated horizontal surface mount bearings for easy rotation.
- OTHER FEATURES INCLUDE - long lasting, chip resistant and rust inhibiting CPC powder coat finish. Motor options available in air, electric, and hydraulic.
- Adjustable tension brake to prevent “free-wheeling” during operation
