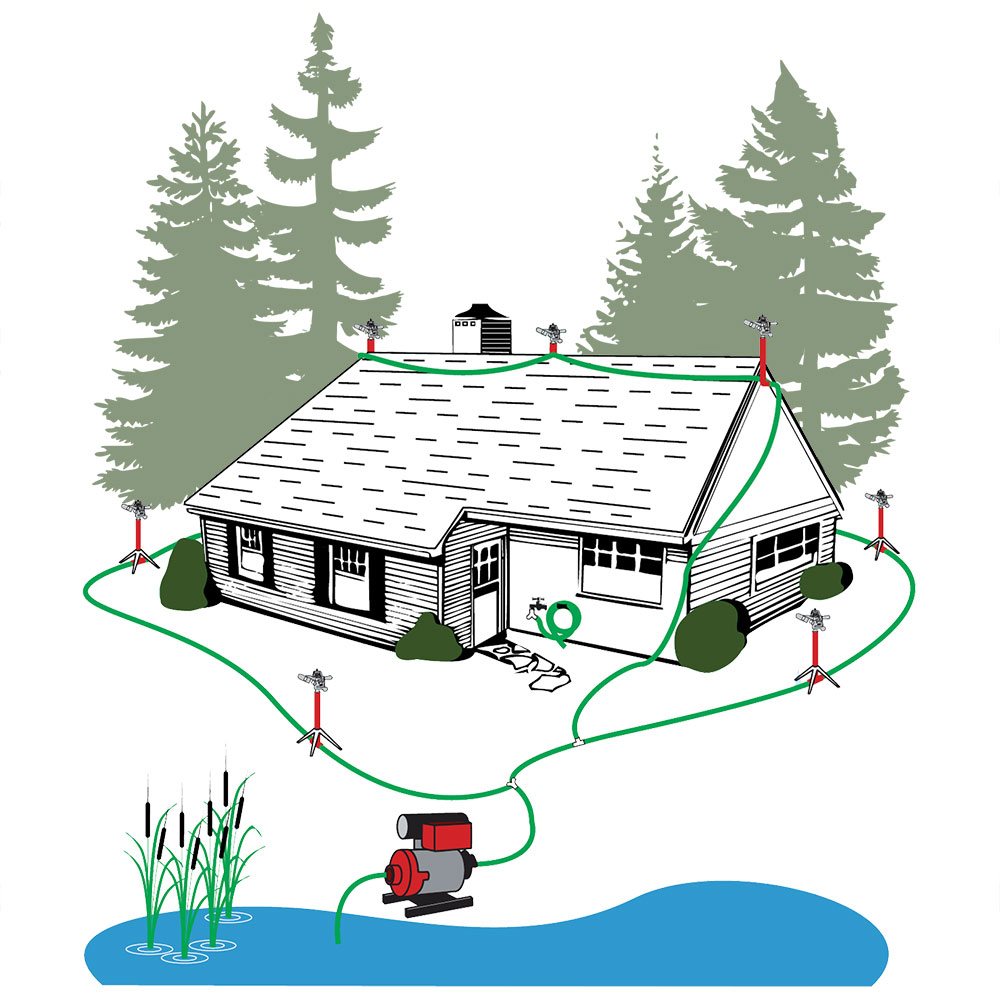

- Sprinklers are used to thoroughly wet down an area. This results in combustibles (buildings and landscape) being much less likely to ignite due to flying embers and the intense heat of a nearby fire.
- The soaked landscape releases moisture into the air. This lowers the ambient temperature and increases the humidity level of the immediate area. These effects extend some distance above ground level. The result is that the advancing wildfire will tend to be deflected by this less supportive environmental pocket and pass by the protected property.
- Sprinklers are most effective when in continual operation for 2 or more hours prior to the arrival of the fire. However, any operational time, even as little as an hour, will increase chances of a successful defense of the property.
Build out this package with the equipment you need to suit your location.
WICK 80™
- Honda four stroke, 1.5hp engine
- Electric start
- 1.5" (38mm) outlet
- 1.5" (38mm) suction inlet
WICK 100M™
- Mitsubishi MEIKI two stroke, 2.4hp engine
- Electric start
- 1.5" (38mm) outlet
- 1.5" (38mm) suction inlet
WICK 200™
- Hydrowick two stroke, 10hp engine
- Electric start
- 1.5" (38mm) outlet
- 2" (50mm) suction inlet
WICK 375™
- Solo two stroke, 10hp engine
- Pull start
- 1.5" (38mm) outlet
- 2" (50mm) suction inlet
Add Your Fuel Tank, Fuel Line, and Primer
Fuel Line
- Available in either Chrysler or Mercury connection types
25 L Fuel Tank
- Works with all Wickman Pumps and quick connect fuel line
Frontier Fire Pump Hand Primer
- Used on forestry fire pumps as air pump
Dual Fuel Line
- Mercury connection type
Pick Your Suction Hose
PVC Suction Hose
- 10' or 20' lengths of 38mm (1.5") or 50mm (2")
Pick Your Foot Valve
Strainer Foot Valve
- Aluminum with 50mm (2") NPSH
Strainer Foot Valve Increaser/Reducer
- Convert 50mm (2") to 38mm (1.5")
Add Your Supply Lines
In any quantity needed.
Guardian Forestry Hose
- 38mm (1.5") in 100' lengths with QC
- Non-weeping
50' Patrol Hose
- 16mm (5/8") with GHT
100' Patrol Hose
- 16mm (5/8") with GHT
Pick Your Sprinklers
In any quantity needed.
Frontier Aluminum Sprinkler
- 12mm (1/2") Offset Mount Sprinkler
- 3-5 GPM at 30–50 psi
- Reach of 7.6m-10.6m (25' - 35') radius
- Spray partial to full 360 degrees
Frontier Aluminum Sprinkler
- 12mm (1/2") Step Spike Sprinkler
- 3-5 GPM at 30–50 psi
- Reach of 7.6m-10.6m (25' - 35') radius
- Spray partial to full 360 degrees
Frontier Ground Sprinkler
- 19mm (0.75") brass head with zinc step spike
- 5.8 GPM at 50 psi
- Reach of 10m - 22m (32'-72') diameter
- Sprays full 360 degrees
Frontier Telescopic Tripod Sprinkler
- 19mm (0.75") brass head with aluminum tripod
- 3-7 GPM at 30 - 80 psi
- Reach of 10m - 22m (32'-72') diameter
- Sprays full 360 degrees
WASP Gutter Mount Sprinkler
- Agricultural grade sprinkler head
- 1.8 GPM at 50 psi
- Reach of 7.6m (25') radius
- Sprays full 360 degrees
WASP Fascia/Fence Bracket
- Allows sprinklers to be mounted to walls or fences
WASP Telescopic Pole
-
To assist with WASP Sprinkler installation
Add Wyes, Water Thiefs, & Nozzles
As needed
Forestry Gated Wye
- 38mm (1.5") QC
Water Thief
- 38mm (1.5") QC x 38mm (1.5") QC x GHT M with shut-off
Adjustable Multi-Orifice Spray Nozzle
- Adjust between 1/8", 3/16", 1/4", 5/16" and Off settings
Forestry Combination Straight Stream/Fog Nozzle
- 19mm (0.75") Brass
Forestry Cap
- 38mm (1.5") QC
